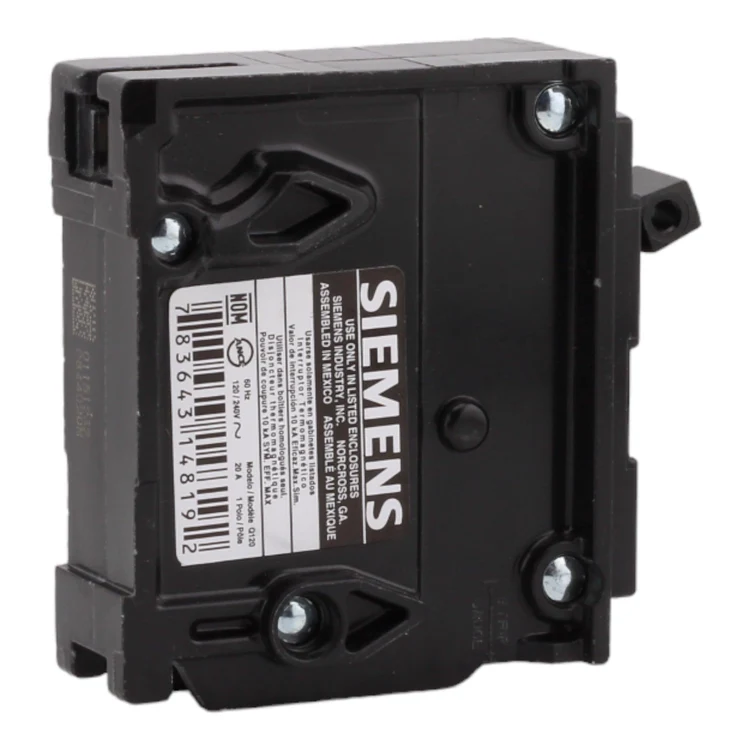

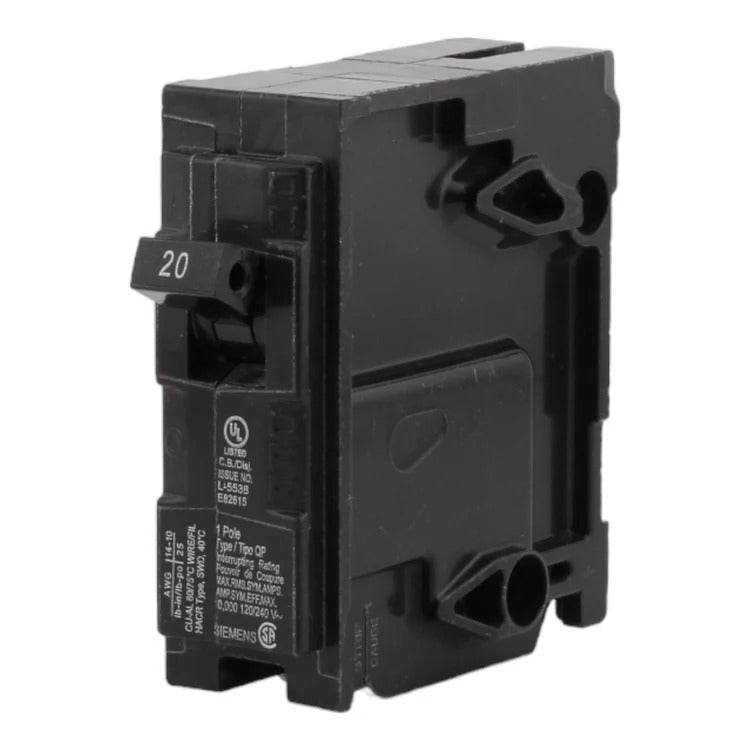

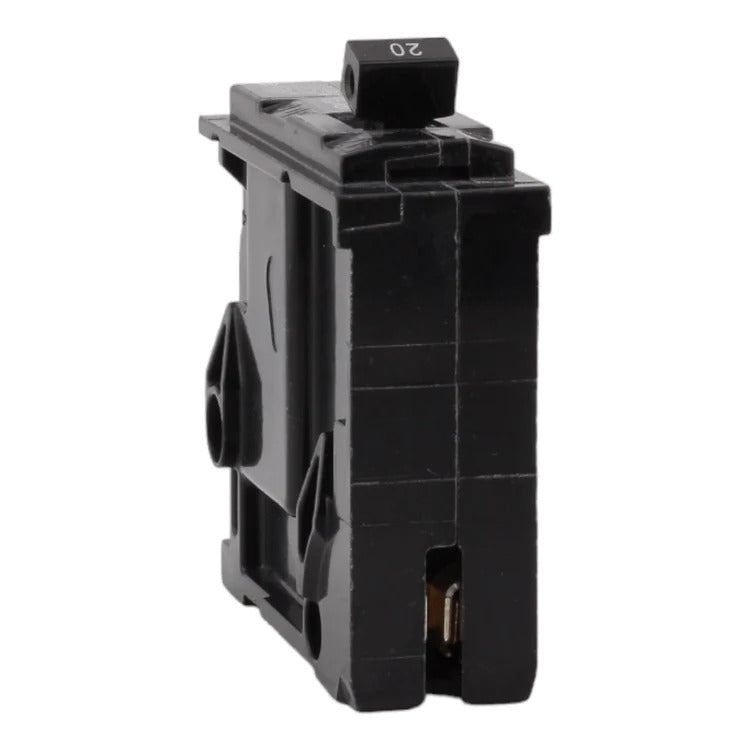

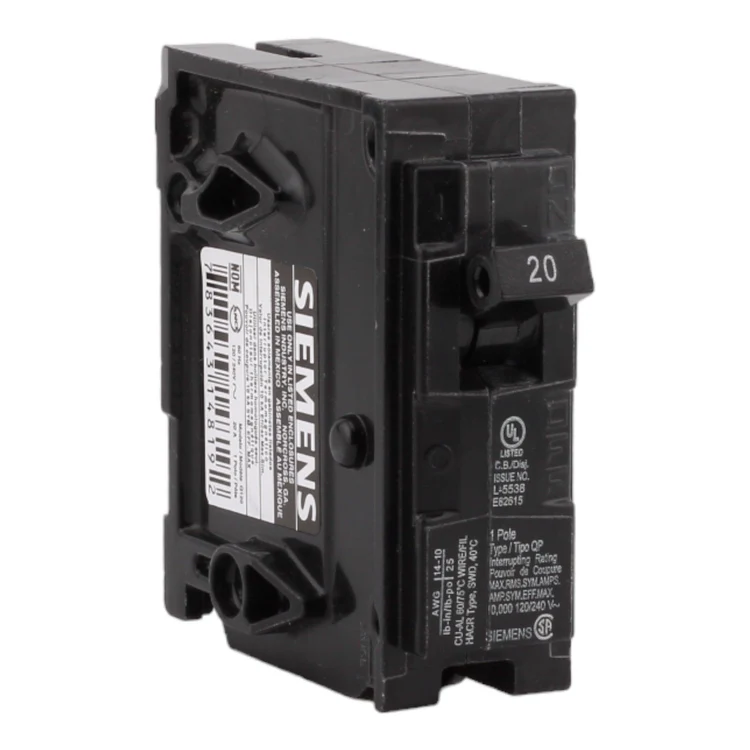

The Siemens Q120 is a 20 Amp, 120 Volt single-pole thermal-magnetic circuit breaker designed for compatible Siemens QP panels. It features a plug-in connection and Insta-Wire design, along with overload and short-circuit protection.
Condition: Brand new.
KEY FEATURES
• 20 AMP CIRCUIT PROTECTION: Siemens Q120 is a 20A, 120V single-pole breaker for compatible panels, providing overload and short-circuit protection.
• PLUG-IN QP DESIGN: Features plug-in mounting and Insta-Wire design for compatible Siemens panels.
• SIEMENS PANEL COMPATIBILITY: Designed for compatible Siemens QP panels, including supported PL and ES series load centers.
• THERMAL MAGNETIC OPERATION: Thermal-magnetic protection helps respond to overload and short-circuit conditions.
• WIRE COMPATIBILITY: Accepts #14–8 AWG copper or aluminum wire.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q120
• Type: Thermal Magnetic Circuit Breaker
• Amperage Rating: 20 A
• Voltage Rating: 120 V
• Number of Poles: 1 Pole / Single Pole
• Mounting Type: Plug-In
• Connection Type: Plug-In
• Wire Size: #14–8 AWG copper or aluminum
• Interrupt Rating: 10k AIC / 10,000 AIC
• Compatibility: Siemens QP Panels
• Dimensions (H × W × D): 3.543 × 0.75 × 3.15 in
• Weight: 0.265 lb
• Protection: Overload and Short-Circuit Protection
• Installation Feature: Insta-Wire
