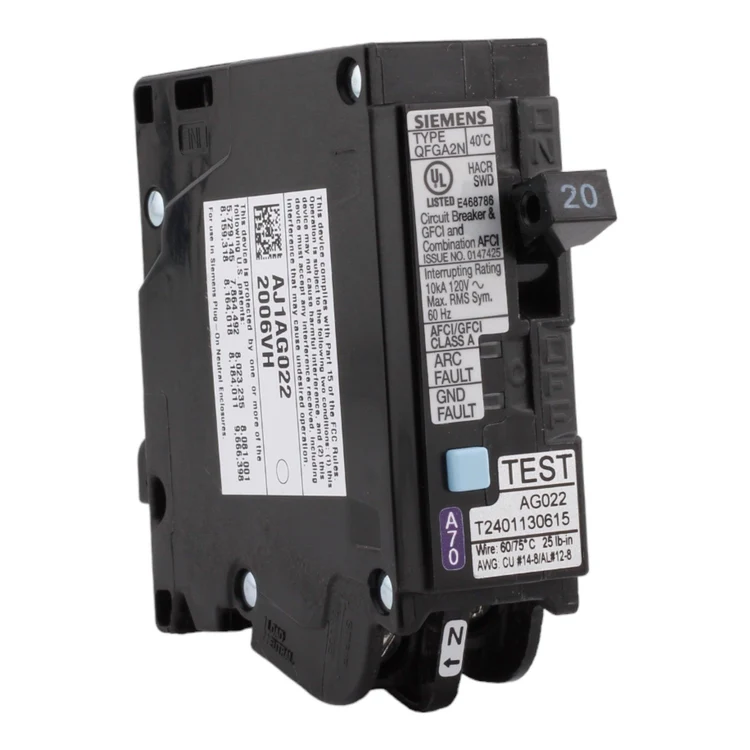

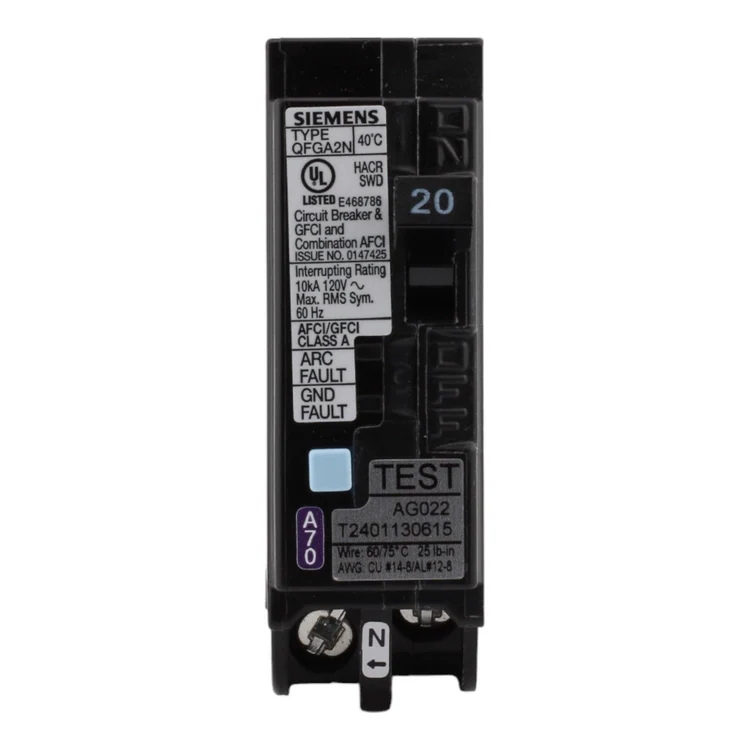

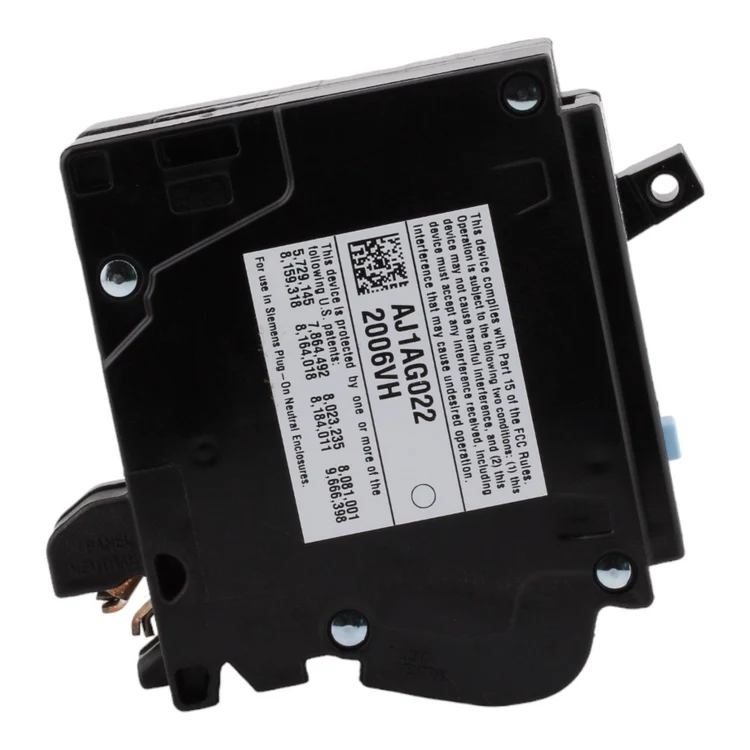

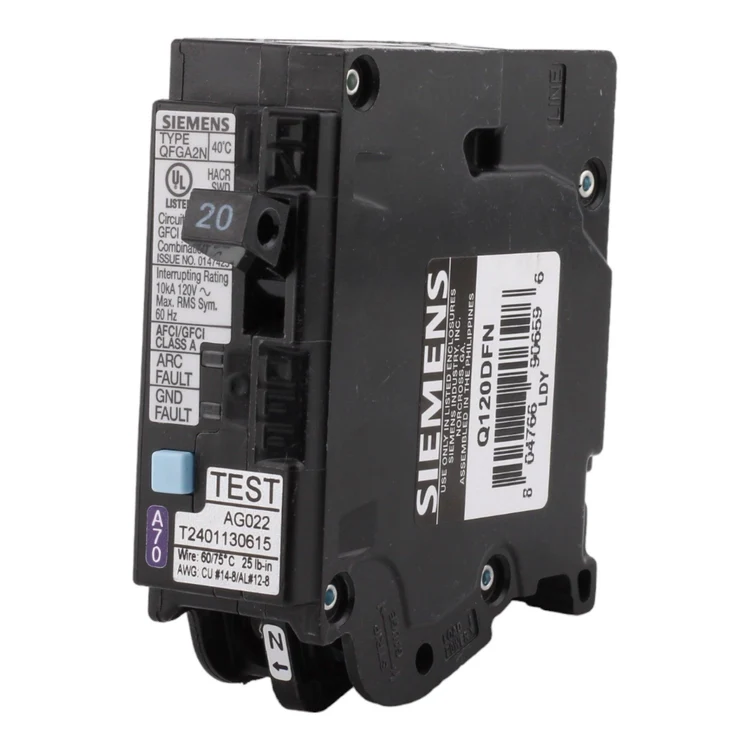

The Siemens Q120DFN is a 20A, 120V single-pole combination AFCI/GFCI circuit breaker for compatible Siemens plug-on neutral load centers. It features plug-in mounting, a 10 kAIC interrupt rating, and support for #14–8 AWG wire.
Condition: Brand new.
KEY FEATURES
• 20 AMP SINGLE-POLE BREAKER: Rated 20A, 120V AC for compatible Siemens panels.
• COMBINED AFCI/GFCI PROTECTION: Combines arc-fault and ground-fault circuit interruption in one breaker.
• PLUG-ON NEUTRAL DESIGN: For compatible Siemens plug-on neutral load centers and equipment.
• 10 kAIC INTERRUPT RATING: Specified with a 10 kAIC interrupt rating.
• WIRE & CERTIFICATION DETAILS: Accepts #14–8 AWG wire; specified torque is 20 lb-in. UL Listed and CSA Approved.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q120DFN
• Product Range: QFGA2N
• Type: Combination AFCI/GFCI Circuit Breaker
• Amperage Rating: 20 A
• Voltage Rating: 120V AC
• Number of Poles: 1 / Single Pole
• Connection Type: Plug-On Neutral
• Mounting Type: Plug-In
• Interrupt Rating: 10 kAIC
• Protection: Arc-Fault and Ground-Fault Circuit Interruption
• Wire Size: #14–8 AWG
• Height: 5.12 in
• Width: 0.79 in
• Depth: 3.15 in
• Weight: 0.33 lbs
