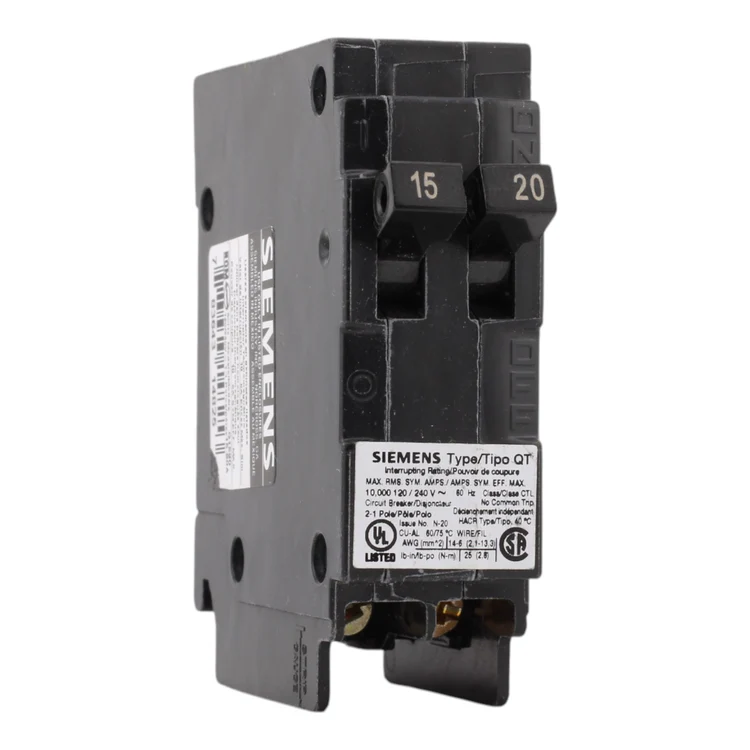

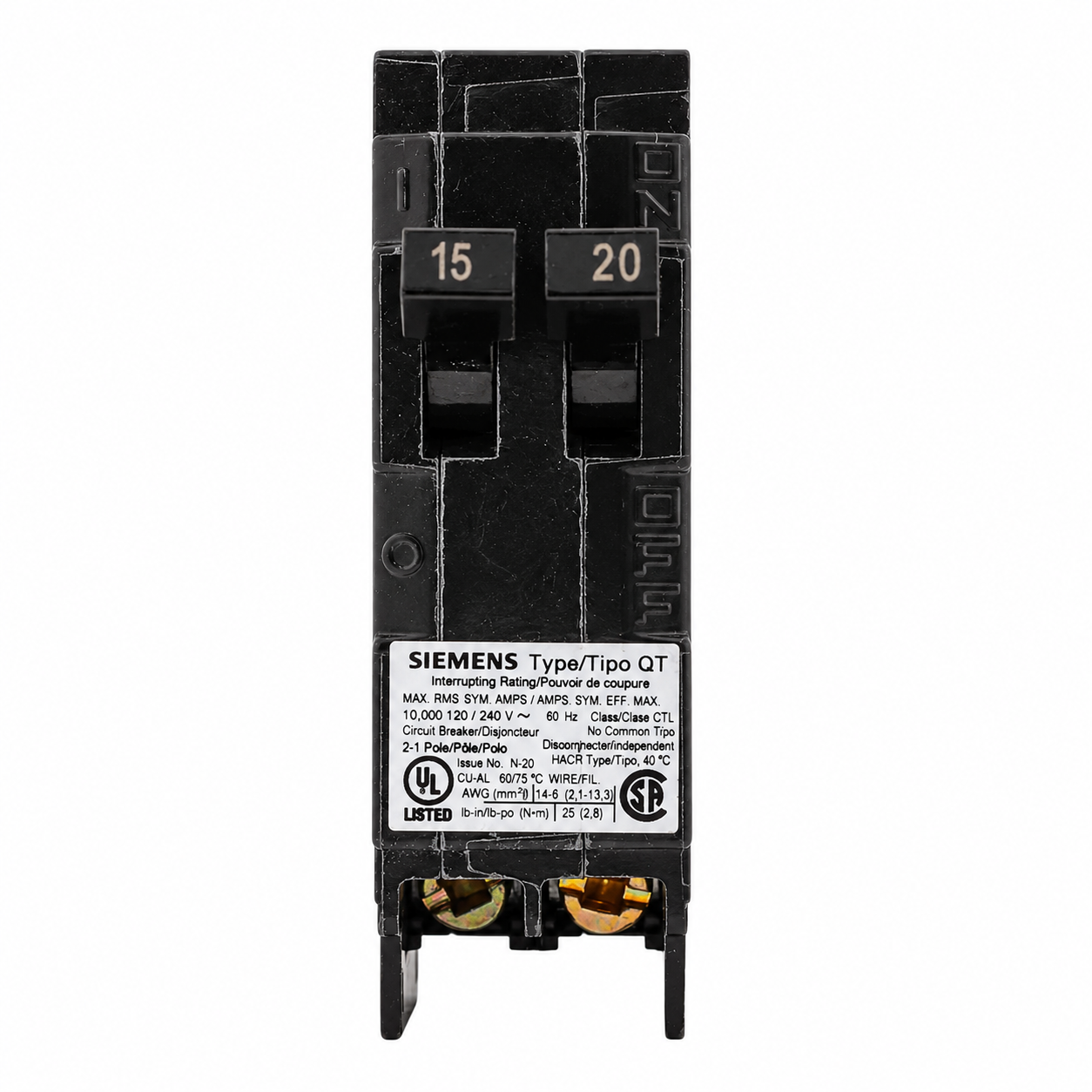

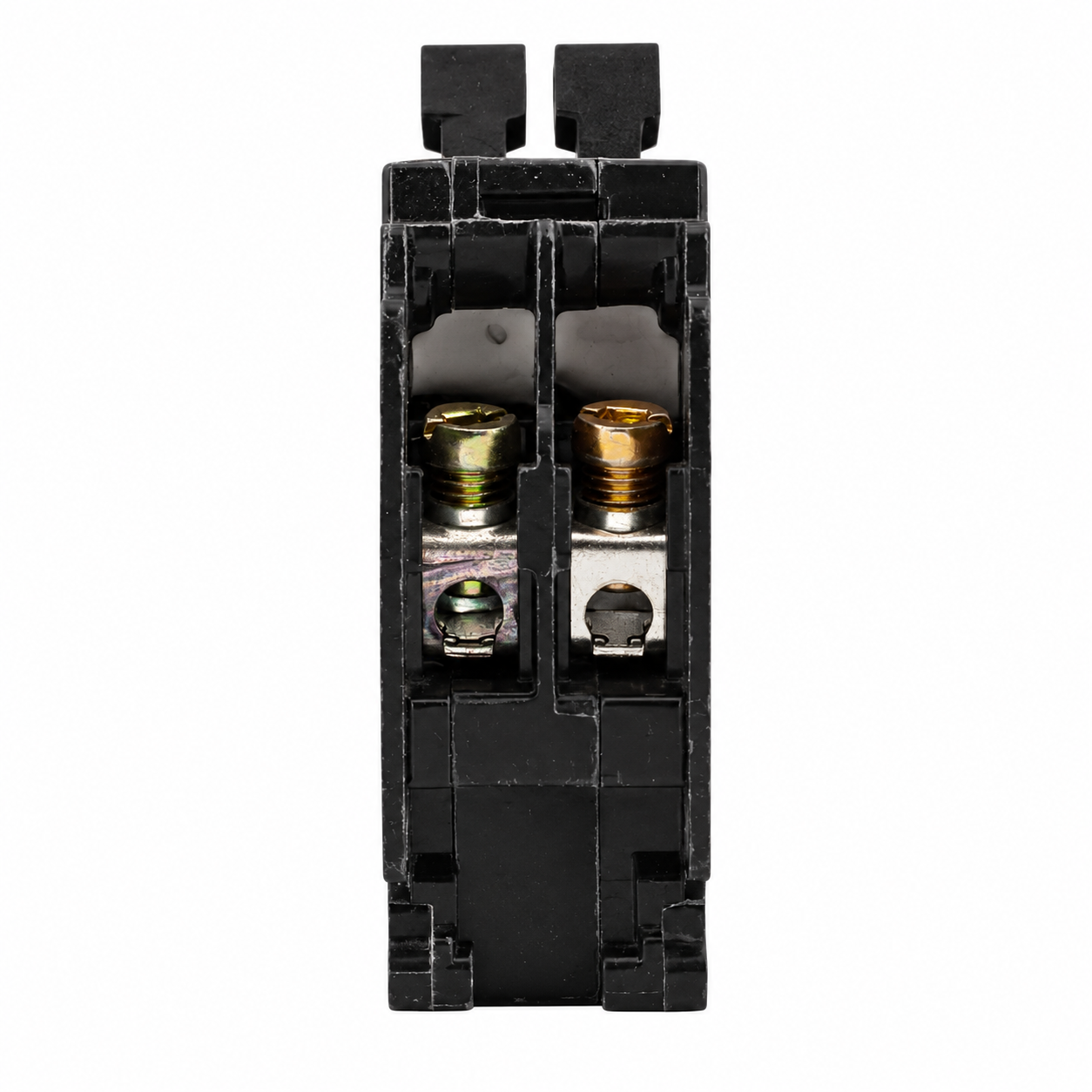

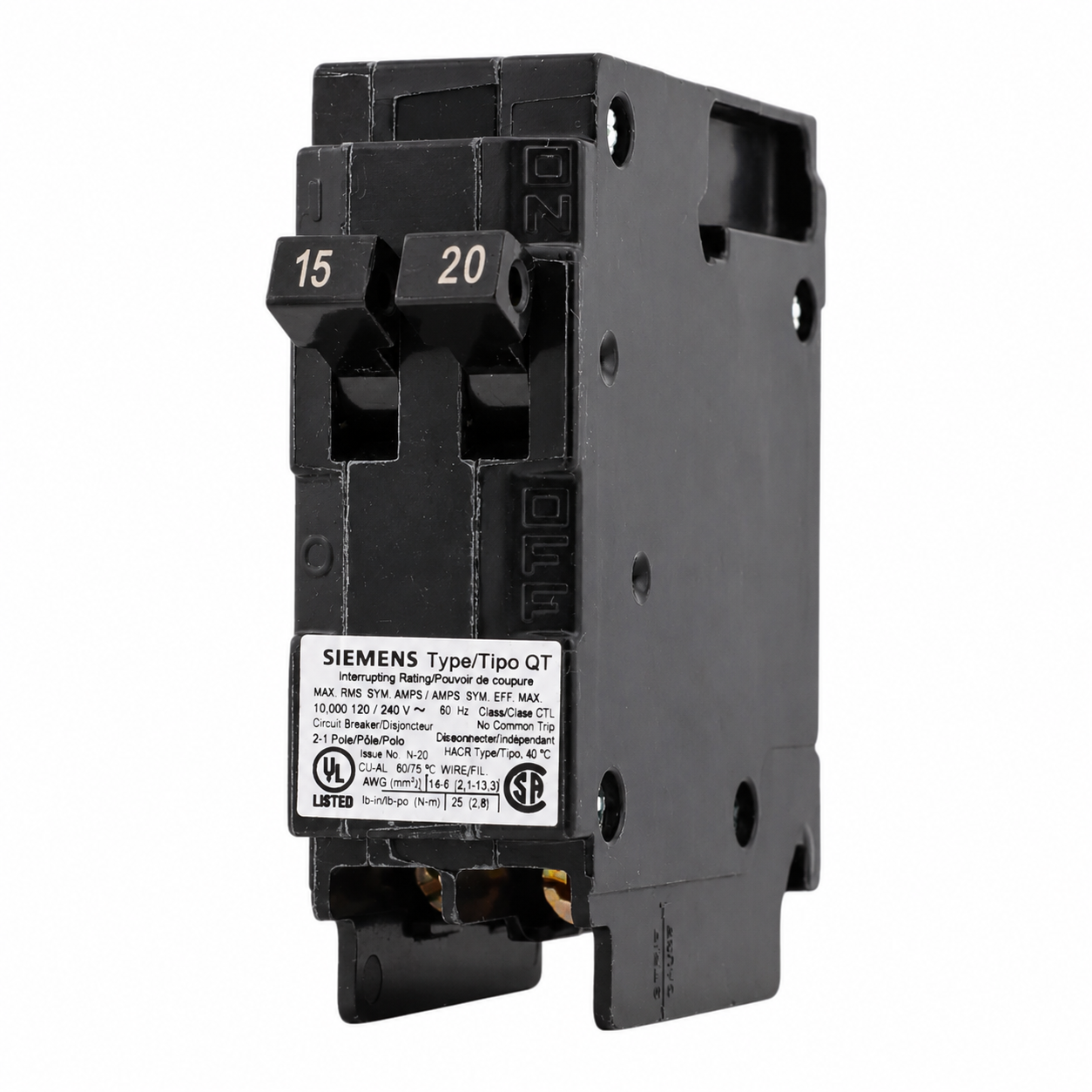

The Siemens Q1520 is a Type QT duplex thermal-magnetic circuit breaker with two single-pole breakers, one rated at 15 amps and the other at 20 amps. It is designed for compatible 120V electrical panels.
Condition: Brand new.
KEY FEATURES
• DUAL 15/20 AMP BREAKERS: Combines one 15A breaker and one 20A breaker in a single unit.
• COMPACT DUPLEX FORMAT: Provides two single-pole circuits in one compact breaker.
• THERMAL MAGNETIC TRIP: Provides overload and short-circuit protection.
• TYPE QT INSTALLATION: Designed for compatible Siemens panels that accept Type QT breakers.
• 10 KAIC & WIRE RANGE: Rated at 10 kAIC and accepts #14–6 AWG copper or aluminum wire.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q1520
• Type: Duplex Circuit Breaker
• Amperage Rating: 15/20 Amps
• Voltage Rating: 120 Volts
• Number of Poles: Single-pole each breaker
• Circuit Protection: Thermal Magnetic
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-In
• Installation Feature: Insta-Wire
• Wire Size: #14–6 AWG copper or #14–6 AWG aluminum
• Design: Space-Saving Duplex
• Protection: Overload and Short-Circuit Protection
• Dimensions (H × W × D): 3.543 × 12.598 × 3.15 in
• Weight: 0.375 lb
