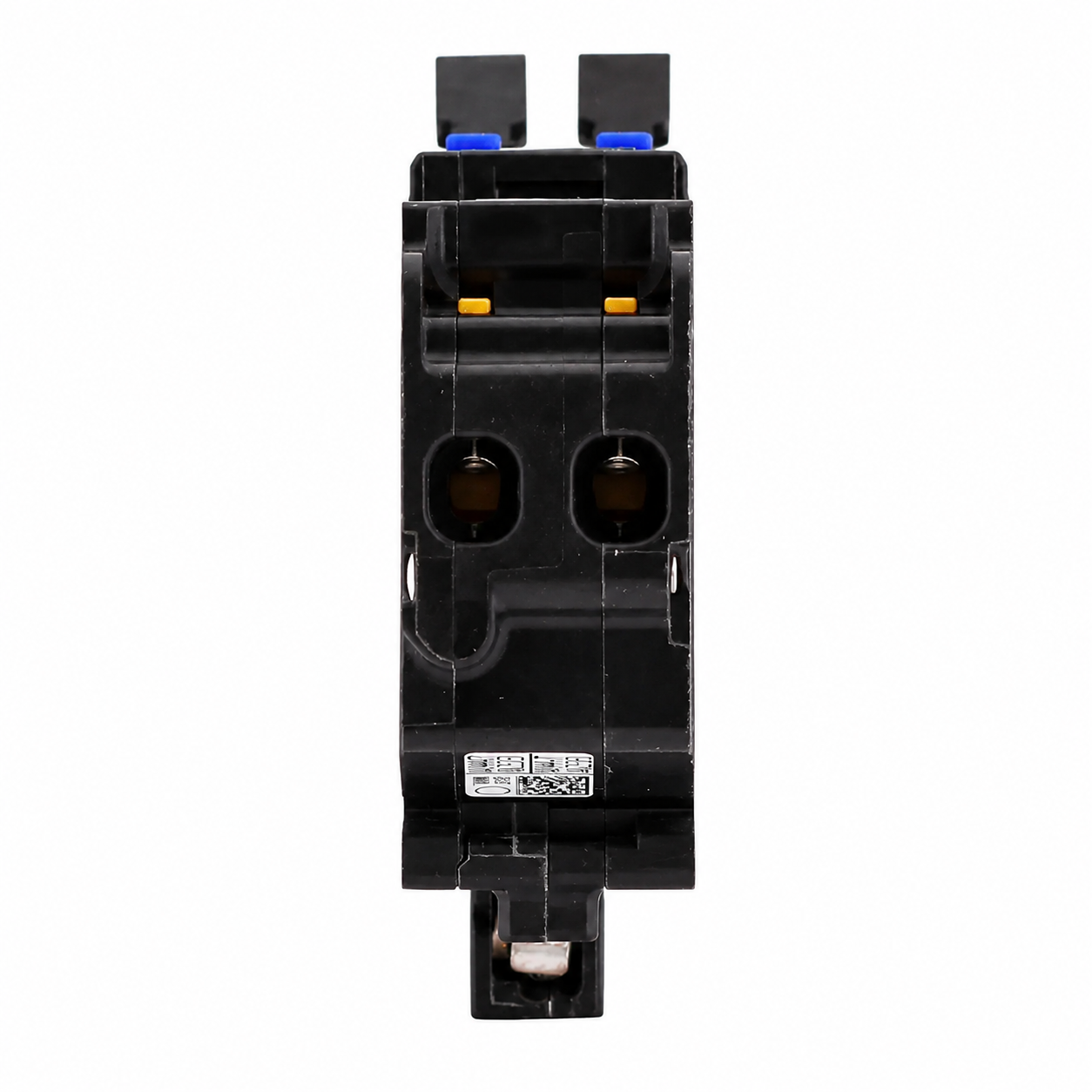

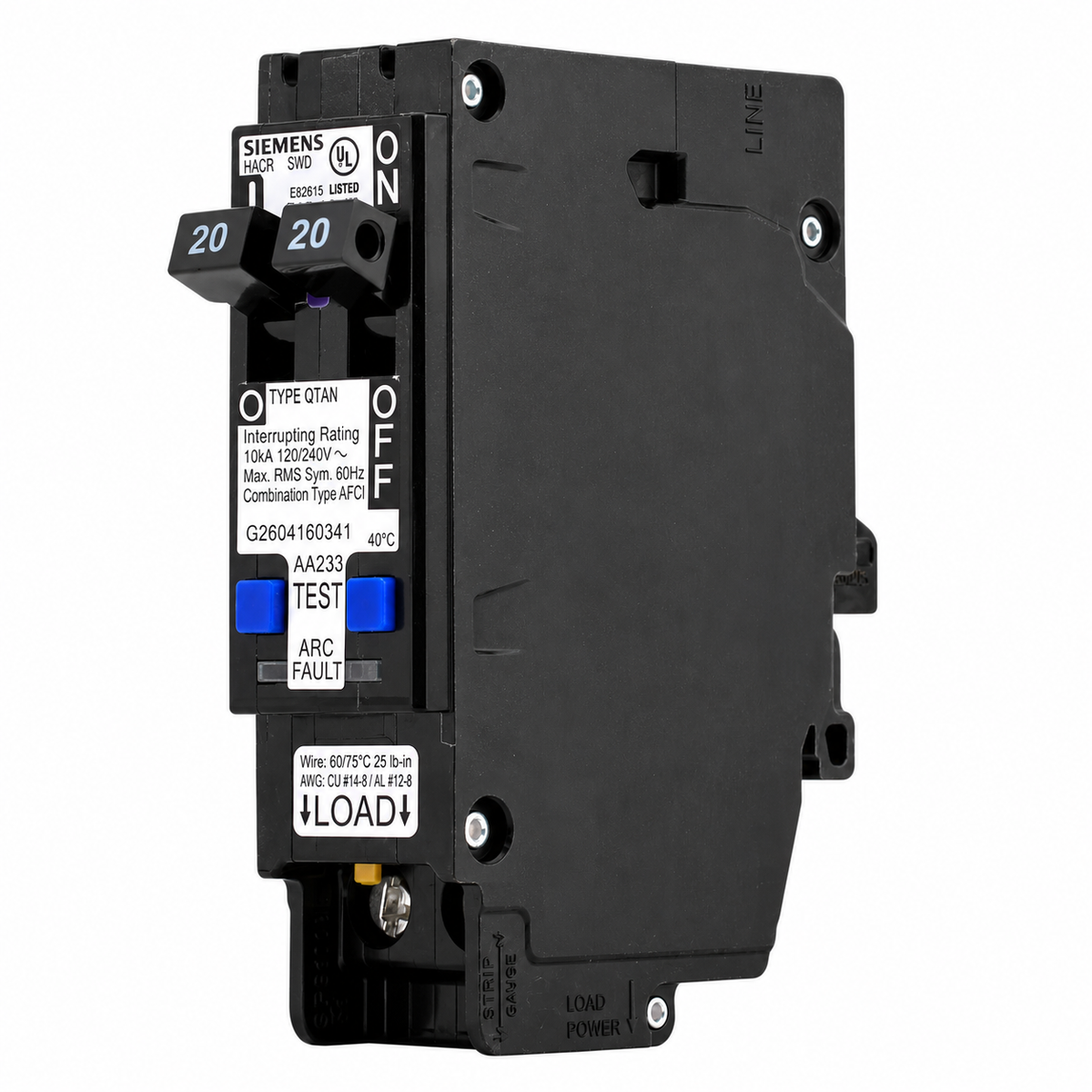

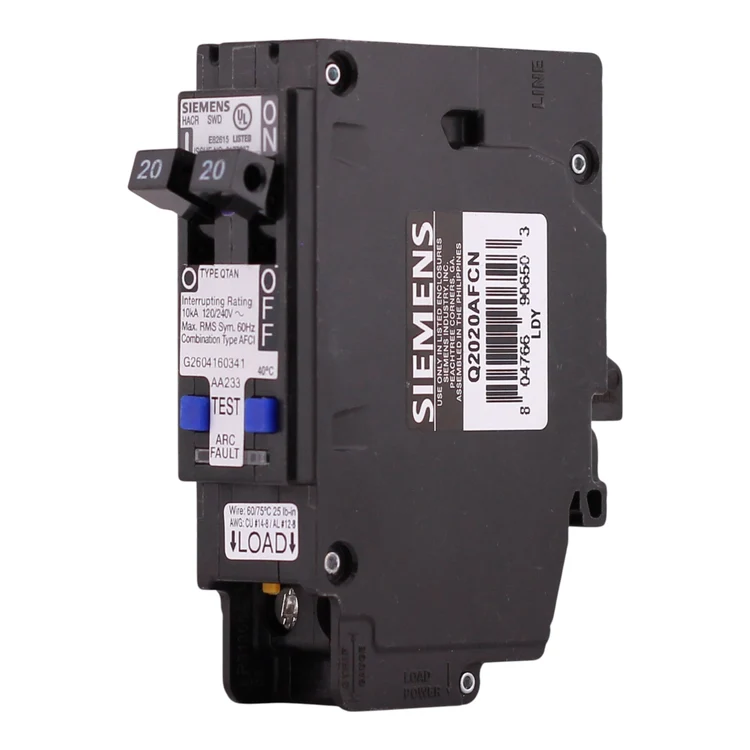

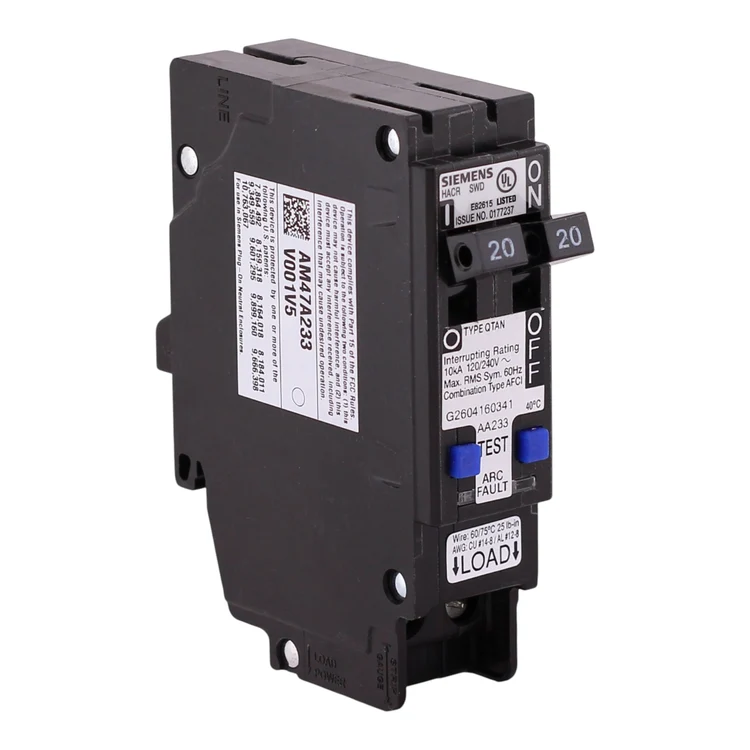

The Siemens Q2020AFCN is a 20/20 Amp, 120V tandem combination arc-fault circuit breaker with two independent 20A, single-pole AFCI circuits in one panel space. It features a plug-on neutral connection for compatible Siemens PN and SN load centers.
Condition: Brand new.
KEY FEATURES
• DUAL 20A AFCI CIRCUITS: Combines two independent 20A, 120V single-pole AFCI circuits in one panel space.
• 120V TANDEM CONFIGURATION: Provides two 20A circuits in a compact tandem design for compatible panels.
• PLUG-ON NEUTRAL CONNECTION: Designed for Siemens PN and SN load centers without a pigtail neutral wire.
• LED TRIP DIAGNOSTICS: Includes an LED trip indicator and installed indicator flags for troubleshooting and wire insertion checks.
• 10 KAIC & CERTIFIED: Rated at 10 kAIC and listed as UL Listed, HACR Rated, and SWD Rated in the supplied data.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q2020AFCN
• Type: Tandem Combination Arc-Fault Circuit Breaker
• Configuration: Tandem / Twin
• Amperage Rating: 20/20 Amps
• Circuit Rating: Two independent 20 Amp circuits
• Pole Configuration: Two independent 1-pole circuits
• Voltage Rating: 120 Volts AC
• Interrupt Rating: 10 kAIC at 120V AC
• Mounting Mode: Plug-In
• Panel Space: 1 panel space
• Connection Terminals: Plug-On Neutral (PON)
• Certification: UL Listed
• Installation Feature: Insta-Wire
• Protection: Combination Arc-Fault Protection
• Weight: 0.419 lb
