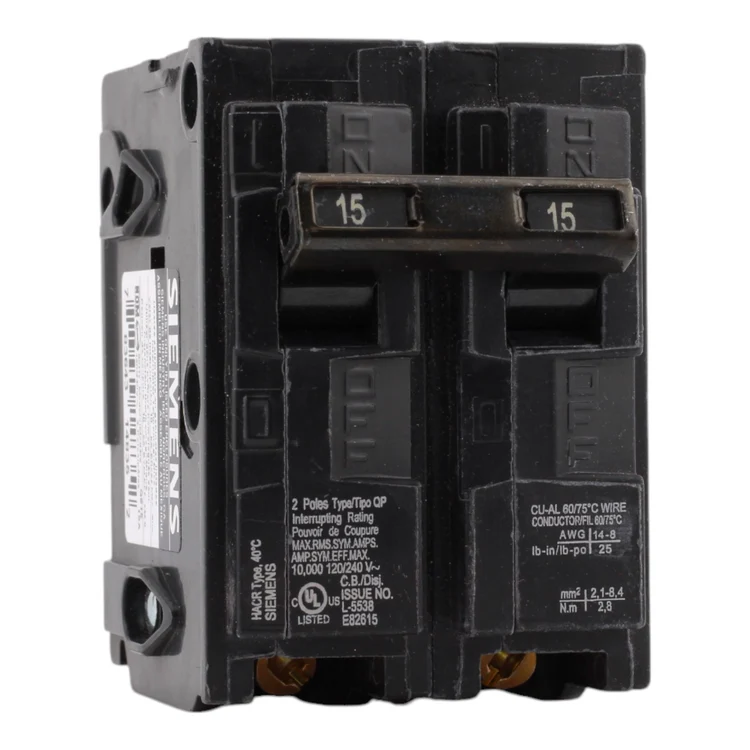

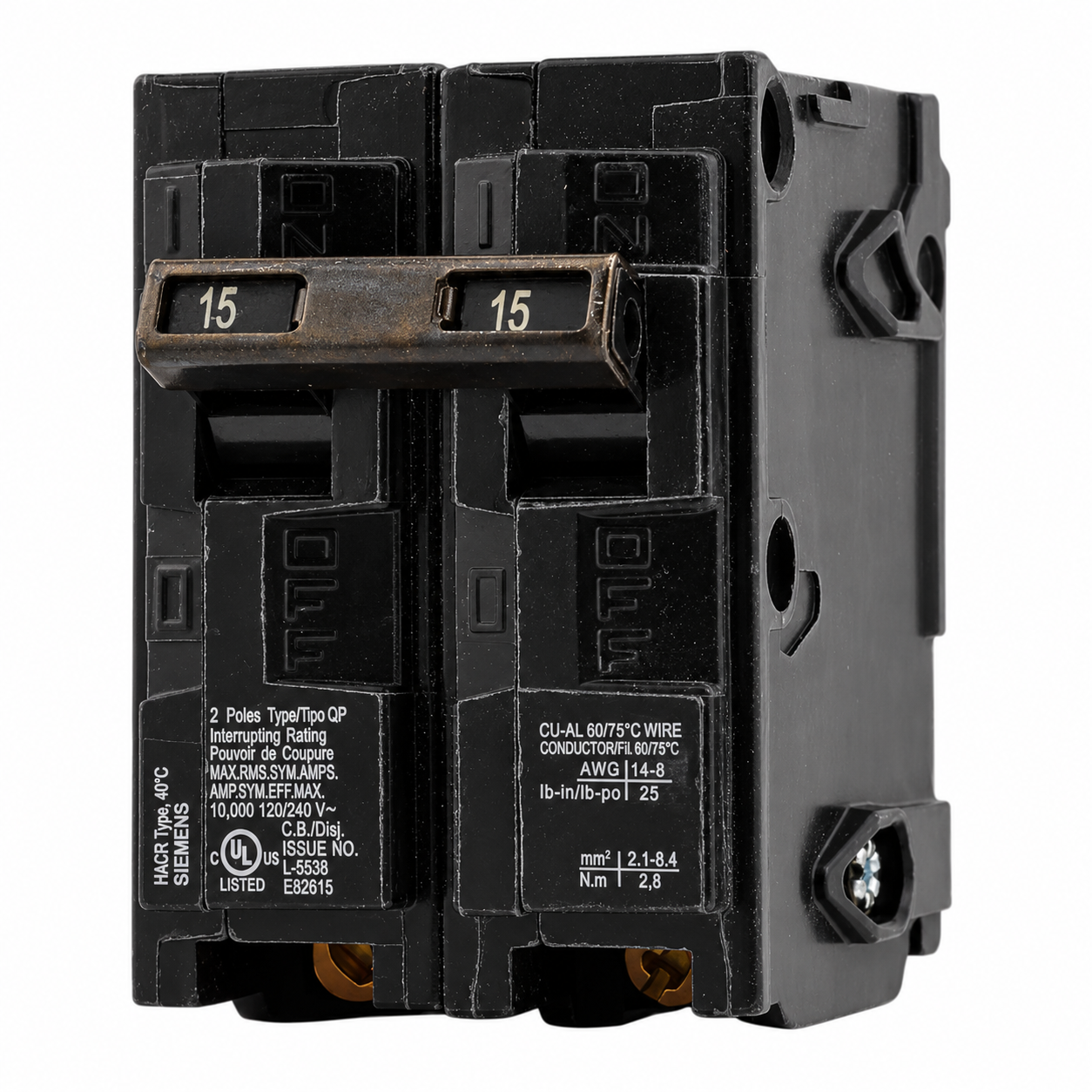

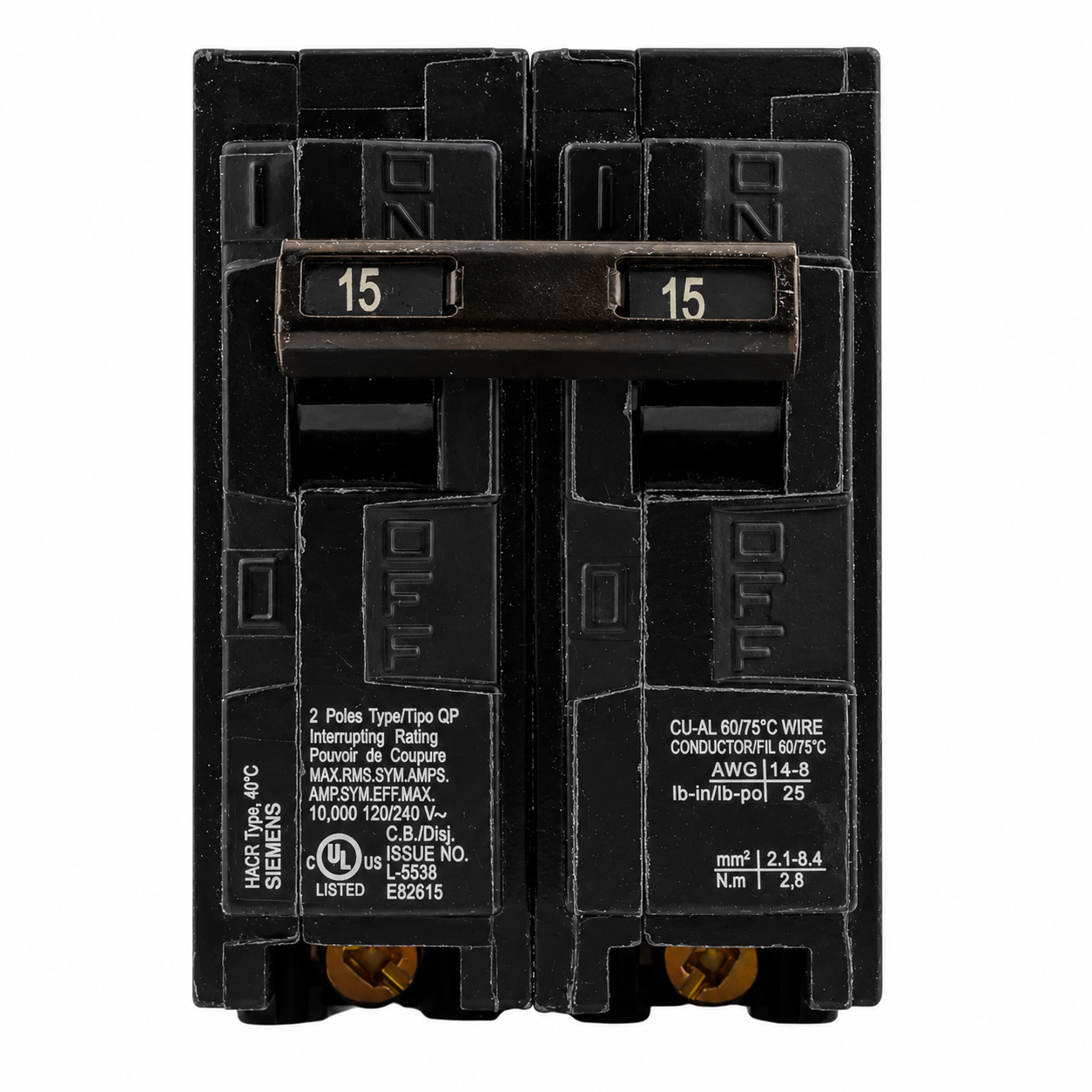

The Siemens Q215 is a 15 Amp, 120/240 Volt double-pole thermal-magnetic circuit breaker designed for compatible residential load centers. It features plug-in mounting and provides overload and short-circuit protection.
Condition: Brand new.
KEY FEATURES
• 15 AMP, 120/240 VOLT RATING: Rated for 15 amps and 120/240V AC in compatible electrical applications.
• DOUBLE-POLE DESIGN: Two-pole configuration for supported residential circuits requiring this rating.
• THERMAL MAGNETIC PROTECTION: Provides overload and short-circuit protection.

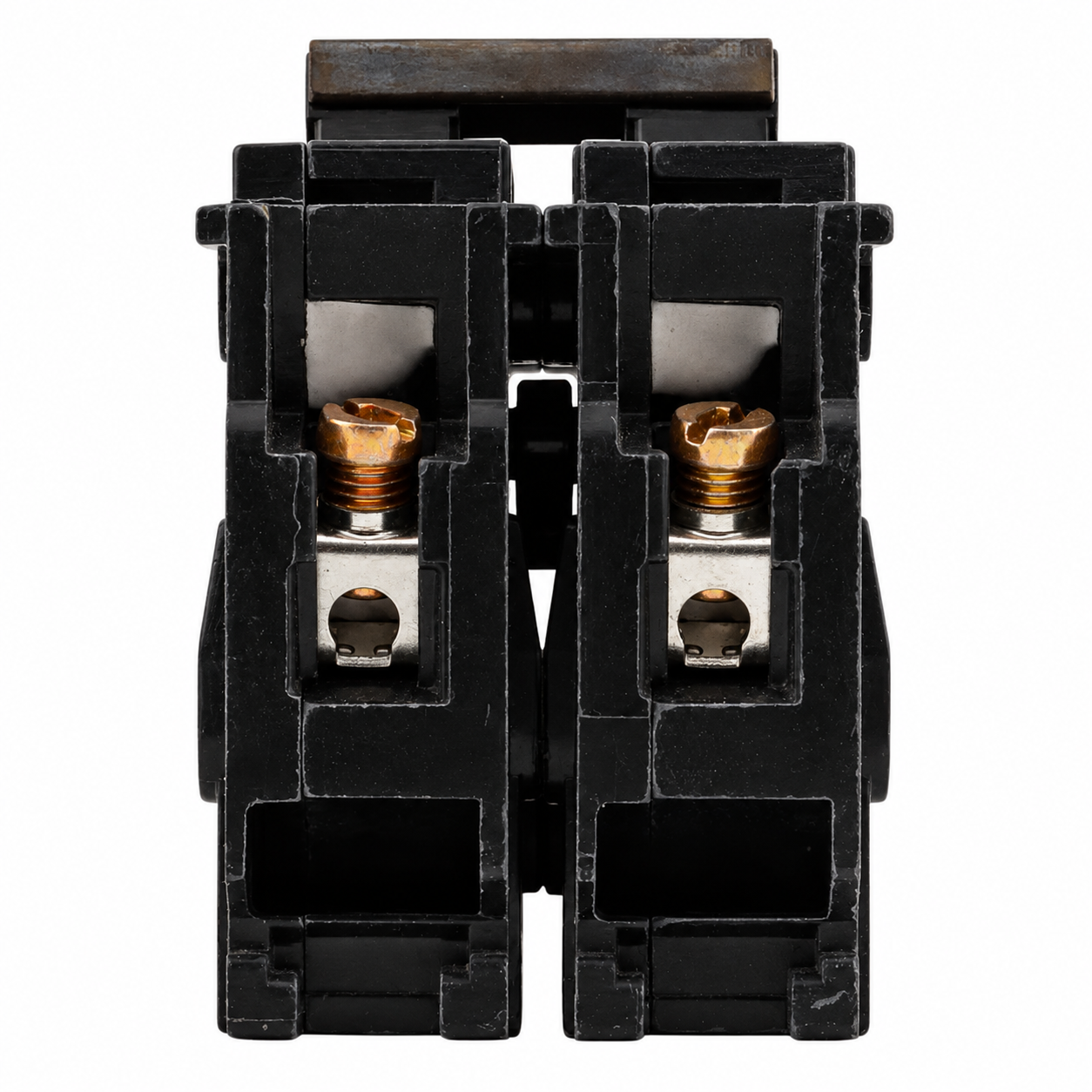

• PLUG-IN MOUNTING: Designed for installation in compatible residential load centers.
• 10K AIC & UL LISTED: Listed with a 10kAIC interrupt rating and UL certification in the supplied data.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q215
• Type: Thermal Magnetic Circuit Breaker
• Circuit Breaker Type: Standard
• Amperage Rating: 15 A / 15 Amps
• Voltage Rating: 120/240 V AC
• Number of Poles: 2 / Double Pole / Dual Pole
• Mounting Type: Plug-In
• For Use In: Residential Load Centers
• Interrupt Rating: 10 kAIC / 10,000 AIC
• Certification: UL Listed
• Protection: Overload and Short-Circuit Protection
• Dimensions (H × W × D): 3.15 × 12.60 × 3.15 in
• Weight: 0.529 lb
