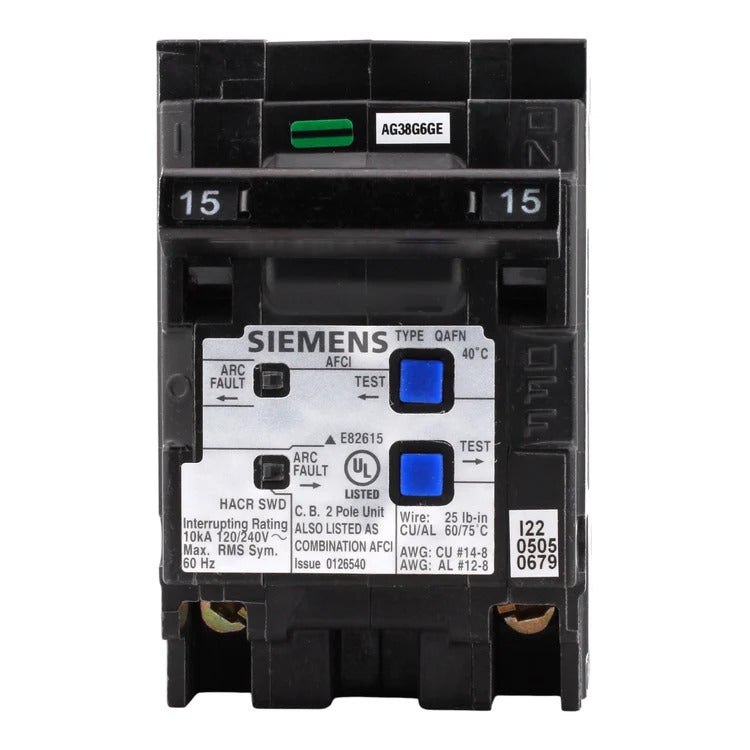

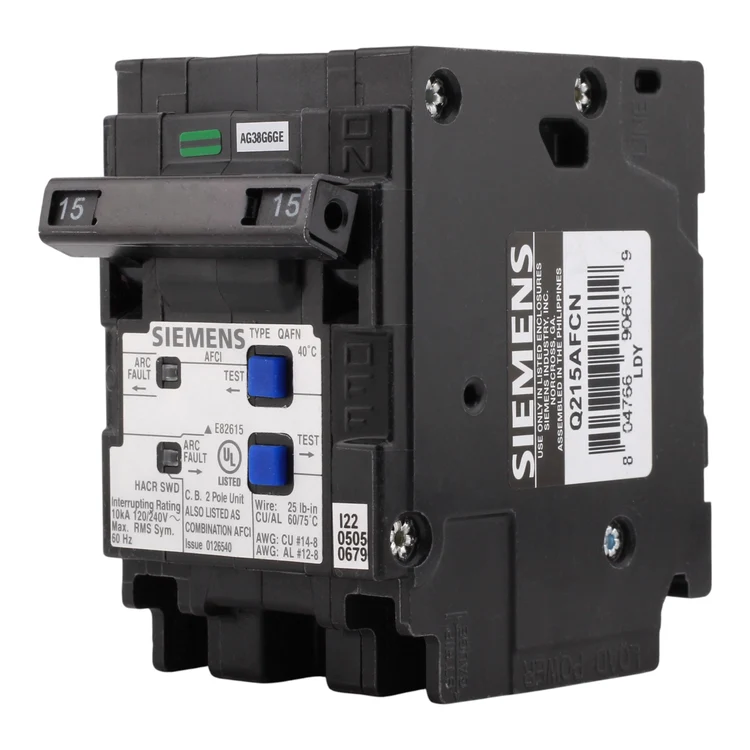

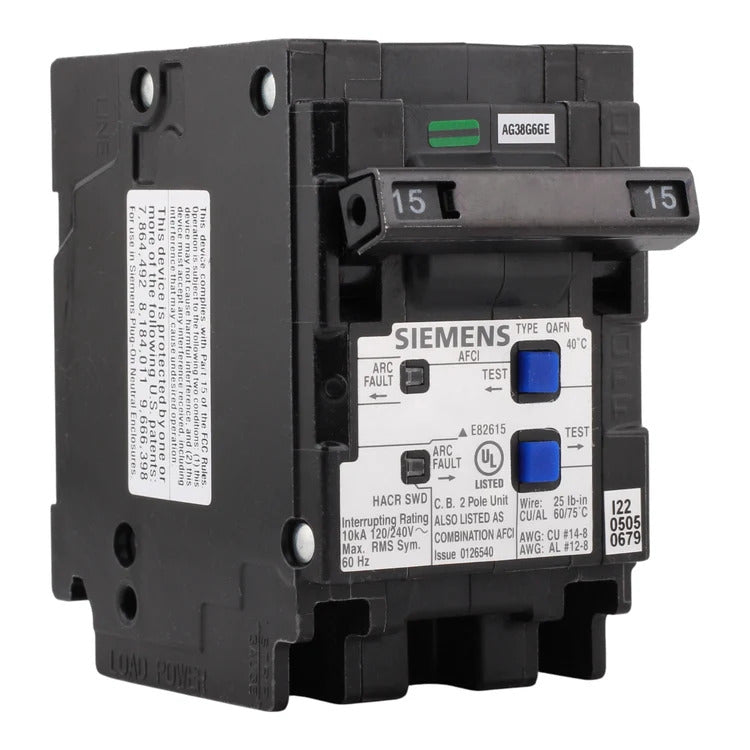

The Siemens Q215AFCN is a 15 Amp, 120/240 Volt AC, 2-pole Arc-Fault Circuit Interrupter designed for compatible Siemens QAFN load centers and equipment. It features a plug-on neutral connection and plug-in mounting.
Condition: Brand new.
KEY FEATURES
• 15 AMP, 120/240 VOLT RATING: Designed for compatible Siemens QAFN load centers and equipment.
• ARC-FAULT CIRCUIT PROTECTION: Provides AFCI protection for supported residential electrical applications.
• PLUG-ON NEUTRAL DESIGN: Uses a plug-on neutral connection with plug-in mounting.
• SPECIFIED WIRE COMPATIBILITY: Accepts one #14–8 AWG and two #14–10 AWG copper or aluminum conductors.
• 10 KAIC & UL LISTED: Features a 10 kAIC interrupt rating and UL Listed certification.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q215AFCN
• Type: Arc-Fault Circuit Interrupter (AFCI)
• Amperage Rating: 15 Amps
• Voltage Rating: 120/240 Volts AC
• Number of Poles: 2-Pole
• Mounting Type: Plug-In
• Connection Terminals: Plug-On Neutral
• Interrupt Rating: 10 kAIC
• Wire Size: (1) #14–8 AWG, (2) #14–10 AWG copper/aluminum
• Application: Residential Applications
• Certification: UL Listed
• Height: 5.12 in
• Width: 1.97 in
• Depth: 3.15 in
• Weight: 0.683 lbs
