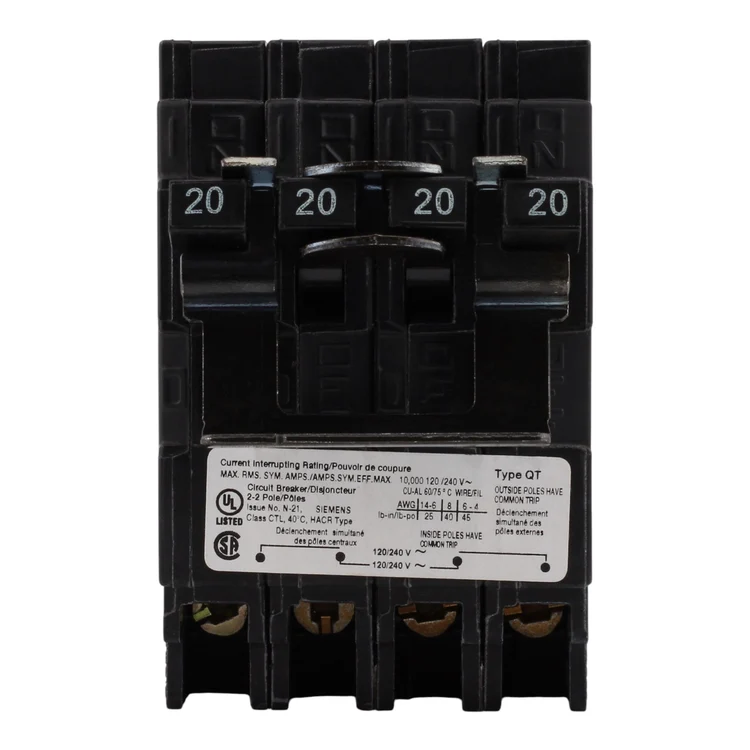

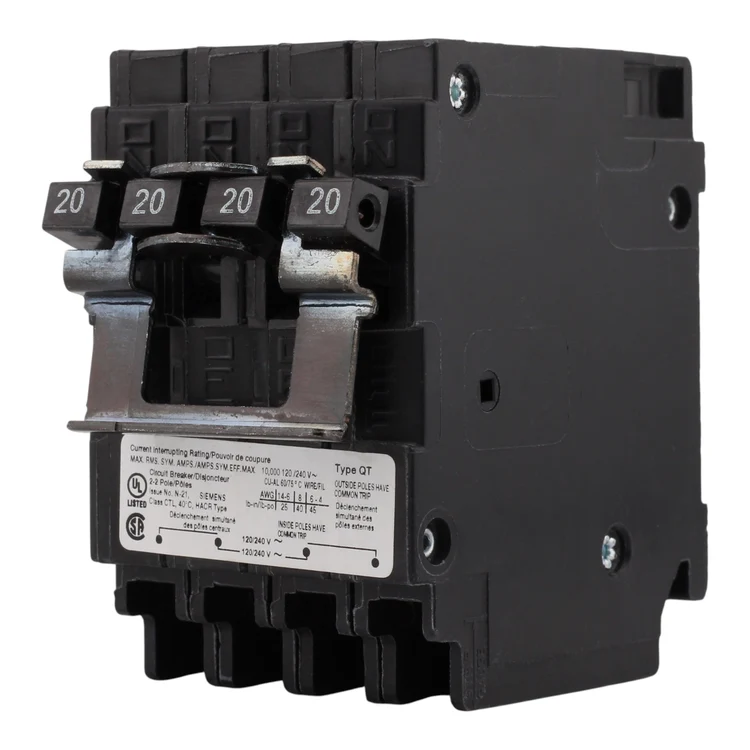

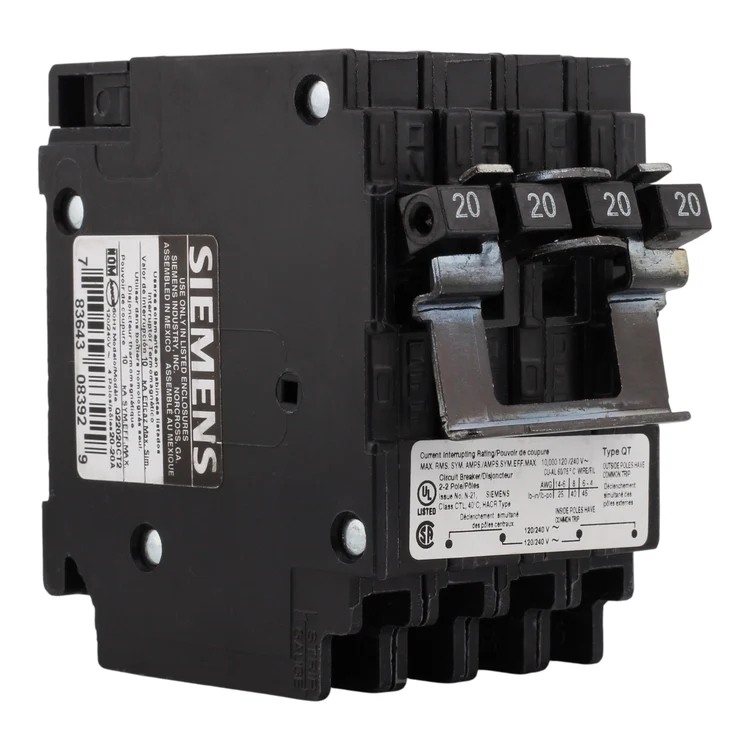

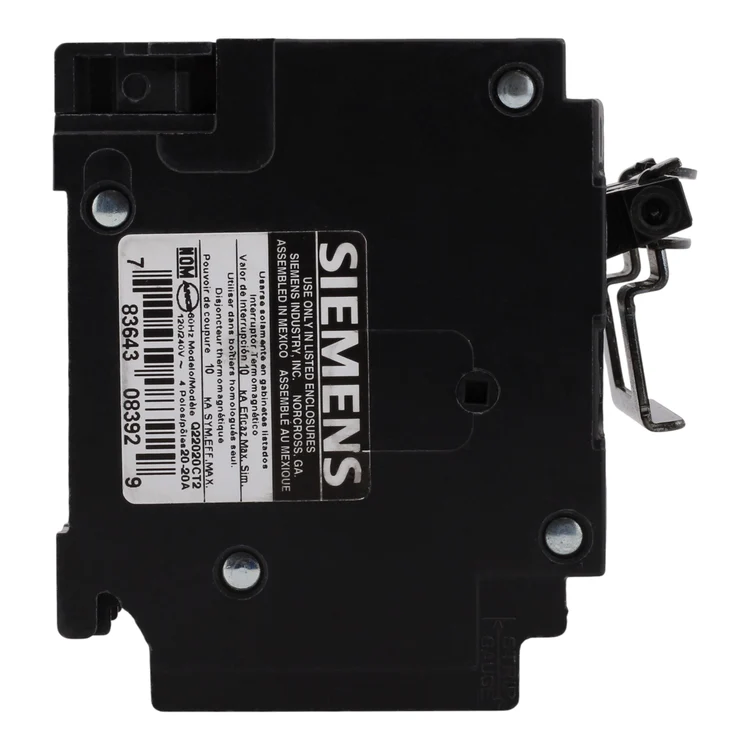

The Siemens Q22020CT2 is a QT-type thermal-magnetic circuit breaker listed with two 20A circuit ratings, 120/240V AC, plug-in mounting, and a 10 kAIC interrupt rating for compatible Siemens load centers.
Condition: Brand new.
KEY FEATURES
• DUAL 20A CIRCUITS: Listed with two 20A circuit ratings in a duplex configuration.
• 120/240V AC RATING: Specified for 120/240V AC, with an additional 240V reference in the source data.
• THERMAL-MAGNETIC PROTECTION: Uses a thermal-magnetic trip mechanism for overcurrent protection.
• PLUG-IN MOUNTING: Features plug-in mounting and plug-on terminals for compatible Siemens panels.
• WIRE & SAFETY RATINGS: Accepts #14–4 AWG copper or aluminum wire; listed under UL 489 with 25 lb-in terminal torque.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q22020CT2
• Product Range: QT
• Product Type: Duplex Circuit Breaker
• Current Rating: 20A / 20A
• Configuration: Two 20A single-pole breakers
• Number of Poles: 2-Pole (as listed)
• Voltage Rating: 120/240V AC
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-In
• Terminal Connection: Plug-On
• Wire Size: One conductor, #14–4 AWG copper or aluminum
• Certification: UL 489 Listed
• Height: 2.76 in
• Width: 1.97 in
• Depth: 2.76 in
• Weight: 0.750 lbs
