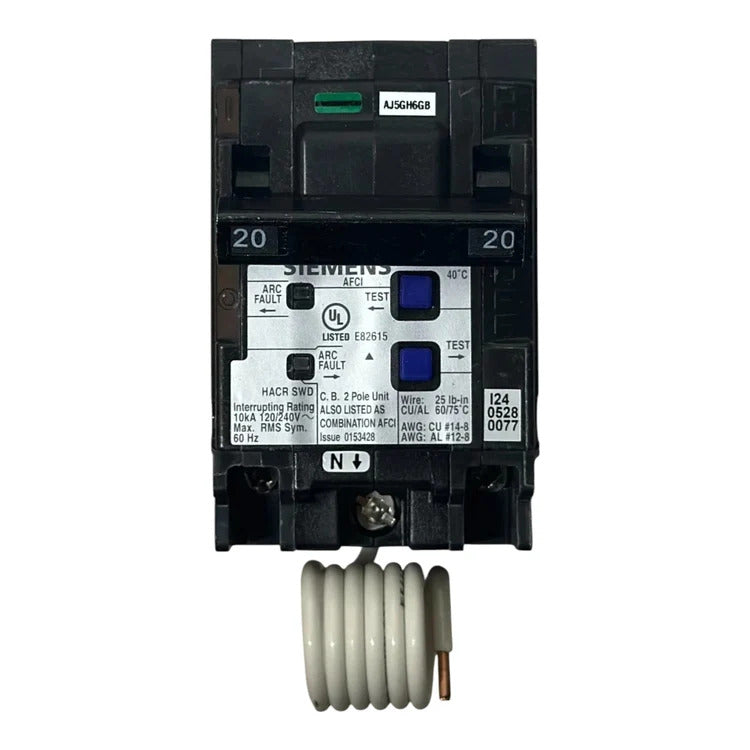

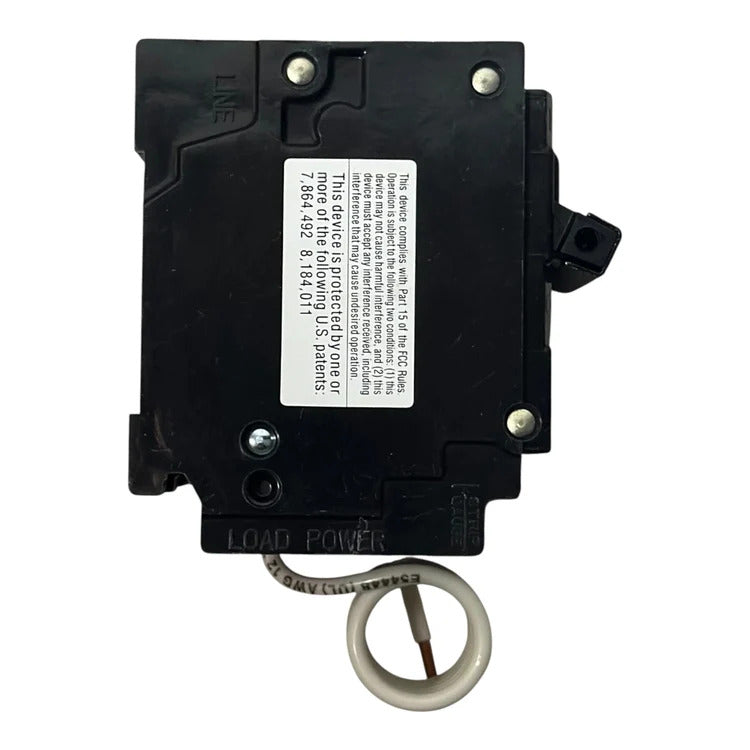

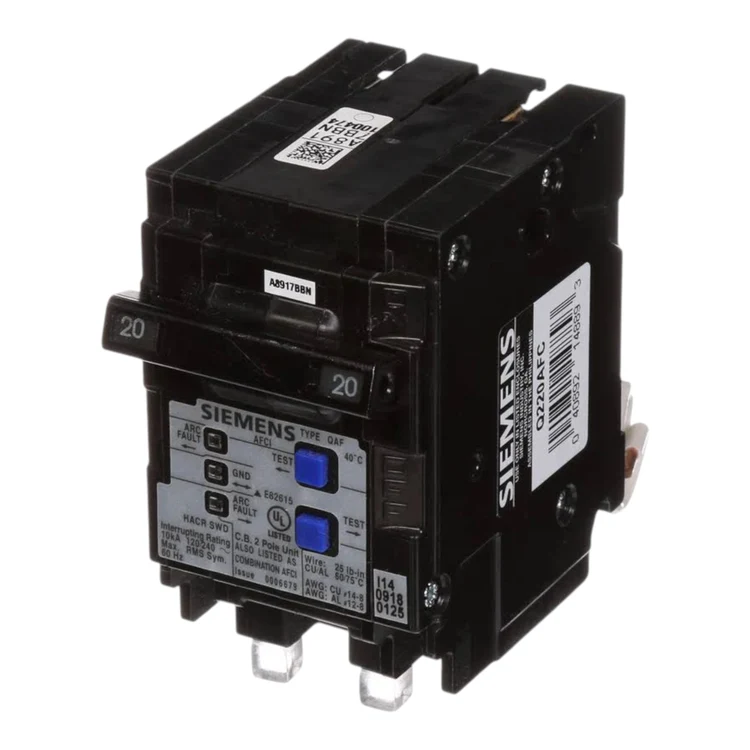

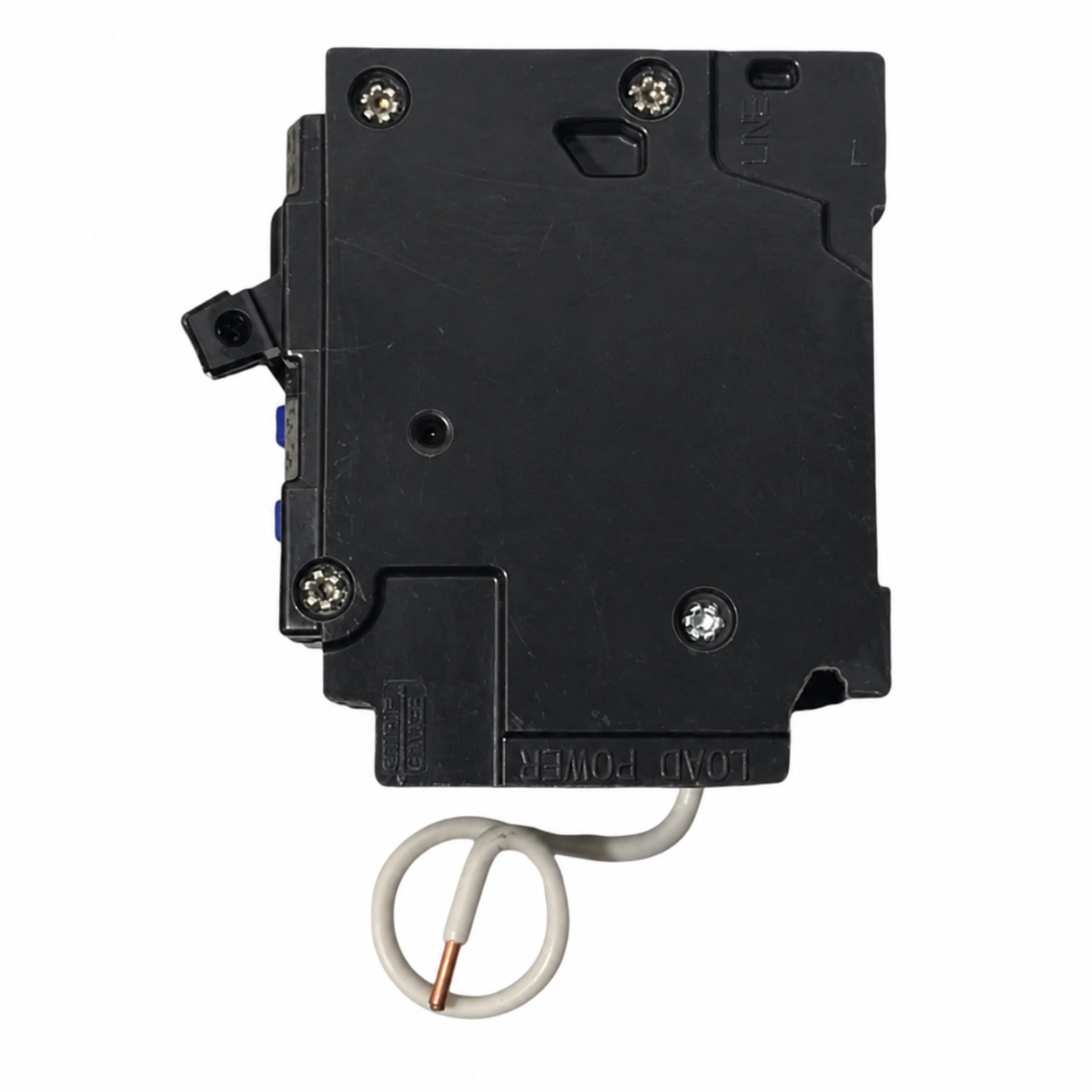

The Siemens Q220AFC is a 20 Amp, 120/240 Volt AC double-pole combination arc-fault circuit interrupter designed for compatible Siemens QAF Series load centers and residential panels. It features plug-in mounting and combination AFCI protection.
Condition: Brand new.
KEY FEATURES
• 20 AMP, 120/240 VOLT: Designed for compatible electrical panels requiring a 20A, double-pole breaker.
• COMBINATION AFCI PROTECTION: Detects line-to-ground, line-to-neutral, and series arcing faults, as specified.
• PLUG-IN PANEL MOUNT: Uses plug-in mounting for compatible Siemens load centers and residential panels.
• COPPER & ALUMINUM WIRE: Accepts #14–8 AWG copper and #12–8 AWG aluminum wire.
• 10 KAIC INTERRUPT RATING: Features a 10 kAIC interrupt rating and is UL Listed, according to the source.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q220AFC
• Type: Combination Arc-Fault Circuit Interrupter
• Amperage Rating: 20 Amps
• Voltage Rating: 120/240 Volts AC
• Number of Poles: 2-Pole
• Pole Configuration: Double Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10 kAIC
• Wire Size – Copper: #14–8 AWG Cu
• Wire Size – Aluminum: #12–8 AWG Al
• Certification: UL Listed
• Height: 12.9 in
• Width: 3.4 in
• Depth: 3.5 in
• Weight: 0.728 lbs
