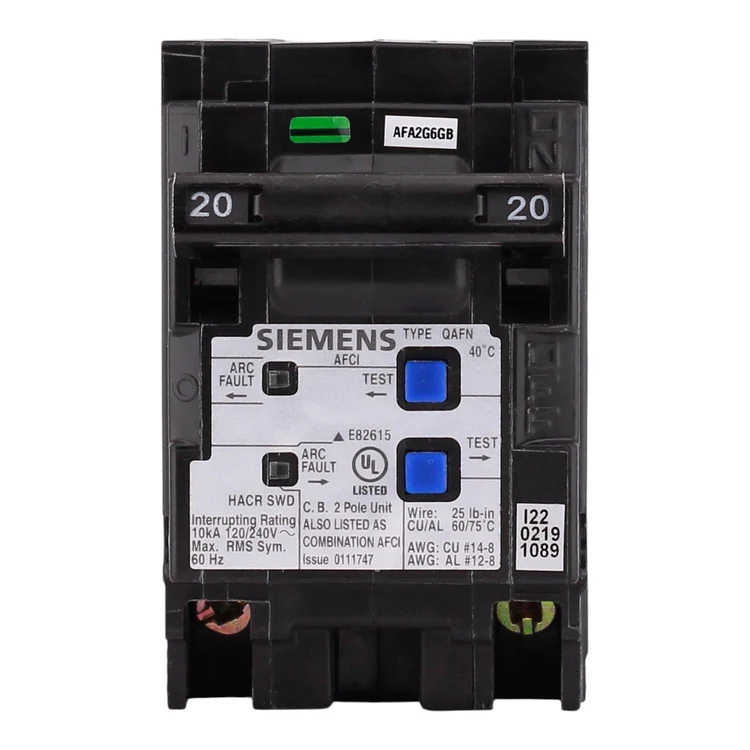

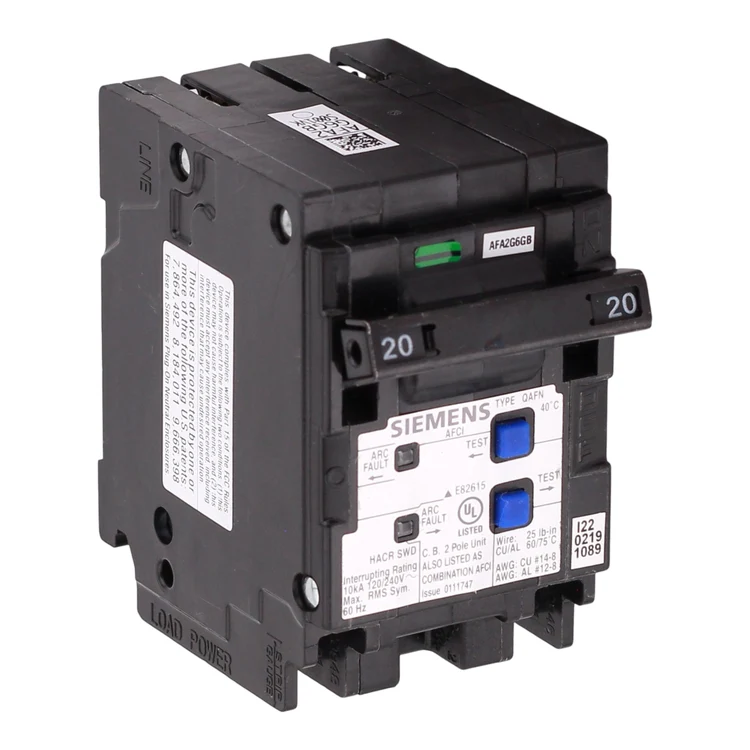

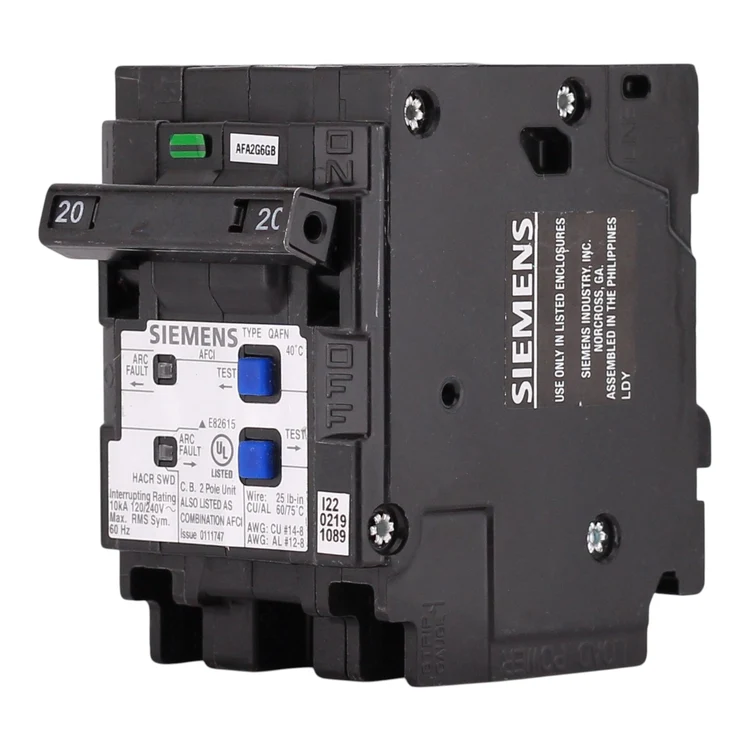

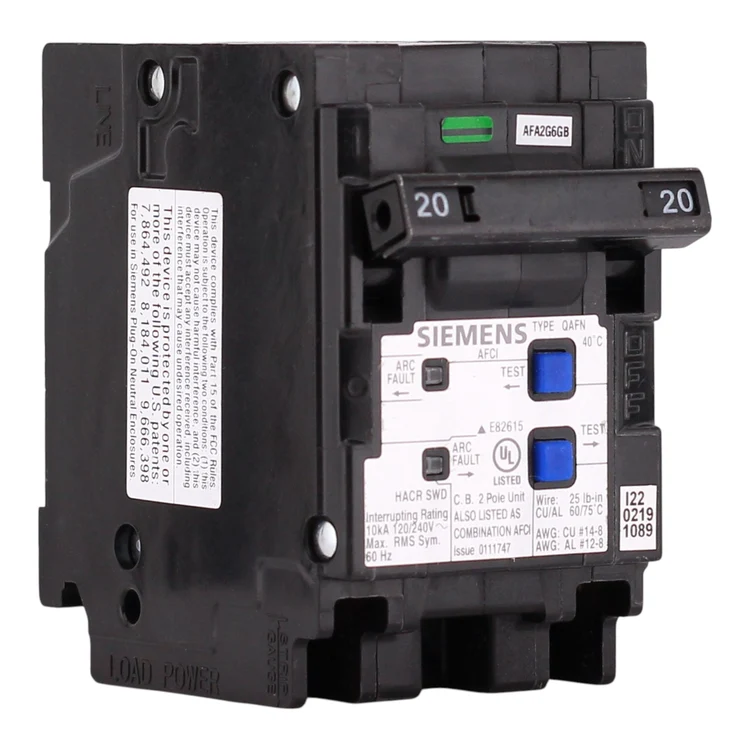

The Siemens Q220AFCN is a 20 Amp, 120/240 Volt AC, 2-pole Arc-Fault Circuit Interrupter (AFCI) designed for compatible Siemens QP load centers and equipment in the QAFN product range. It features plug-in mounting and a plug-on neutral connection.
Condition: Brand new.
KEY FEATURES
• 20 AMP ELECTRICAL RATING: Rated for 20A and 120/240V AC for compatible Siemens QP load centers.
• COMBINATION ARC-FAULT PROTECTION: Designed for residential applications requiring AFCI protection.
• PLUG-ON NEUTRAL DESIGN: Combines plug-on neutral terminals with plug-in mounting.
• SPECIFIED WIRE CONNECTIONS: Supports (1) #14–8 AWG and (2) #14–10 AWG copper or aluminum conductors.
• 10 KAIC INTERRUPT RATING: Listed with a 10 kAIC interrupt rating and UL certification.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q220AFCN
• Type: Arc-Fault Circuit Interrupter (AFCI)
• Amperage Rating: 20 Amps
• Voltage Rating: 120/240 Volts AC
• Number of Poles: 2-Pole
• Mounting Type: Plug-In
• Connection Terminals: Plug-On Neutral
• Interrupt Rating: 10 kAIC
• Wire Size: (1) #14–8 AWG, (2) #14–10 AWG Cu/Al
• Application: Residential Applications
• Certification: UL Listed
