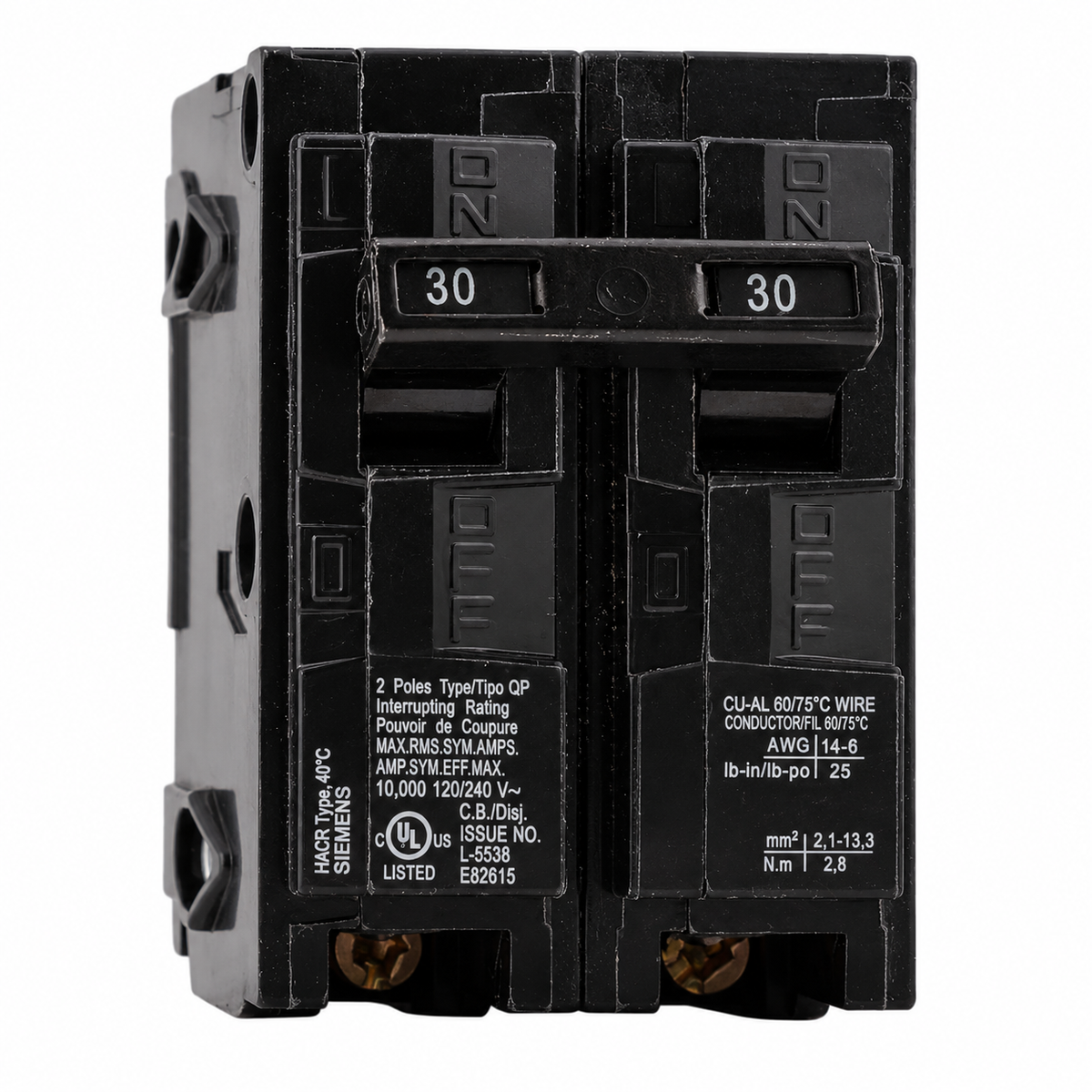

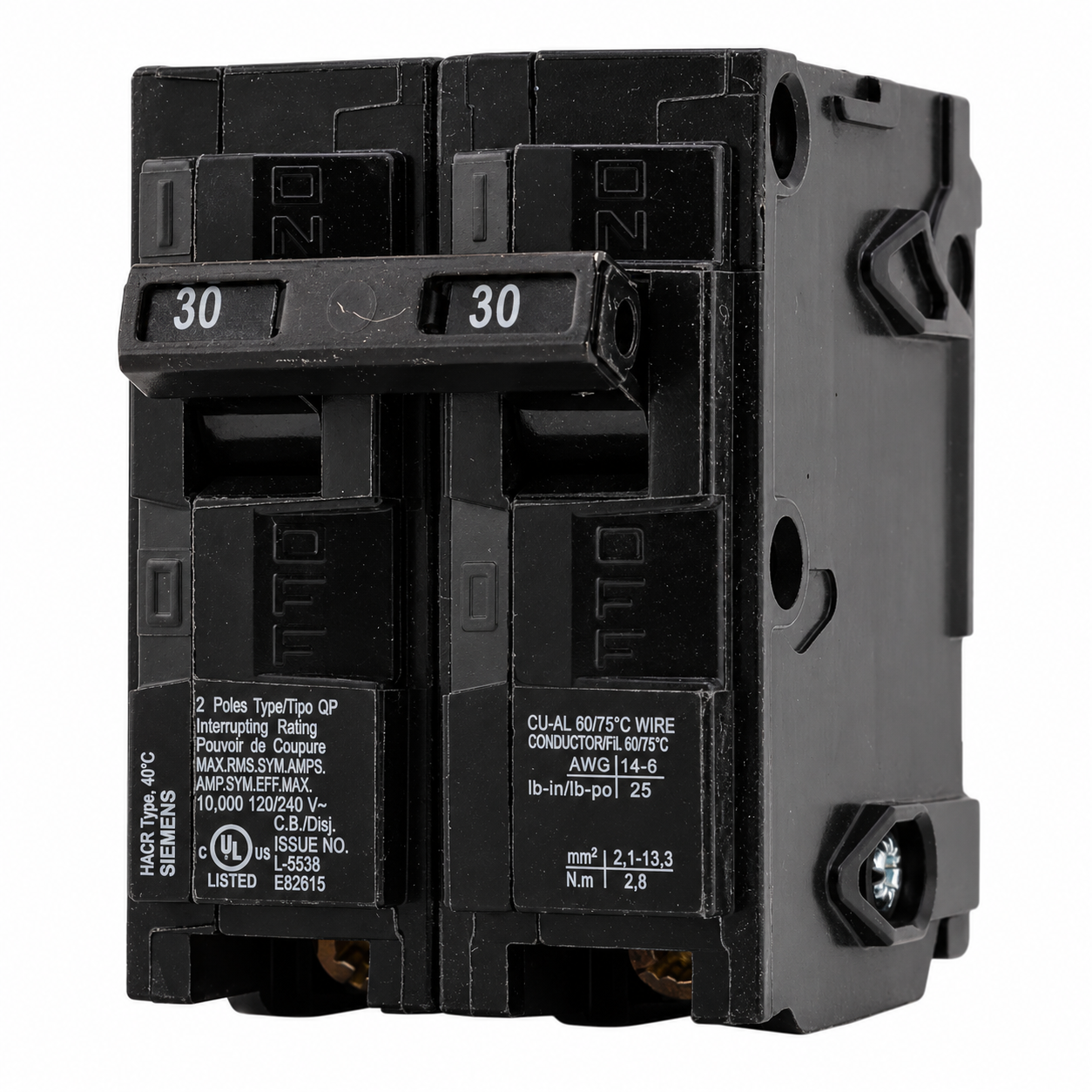

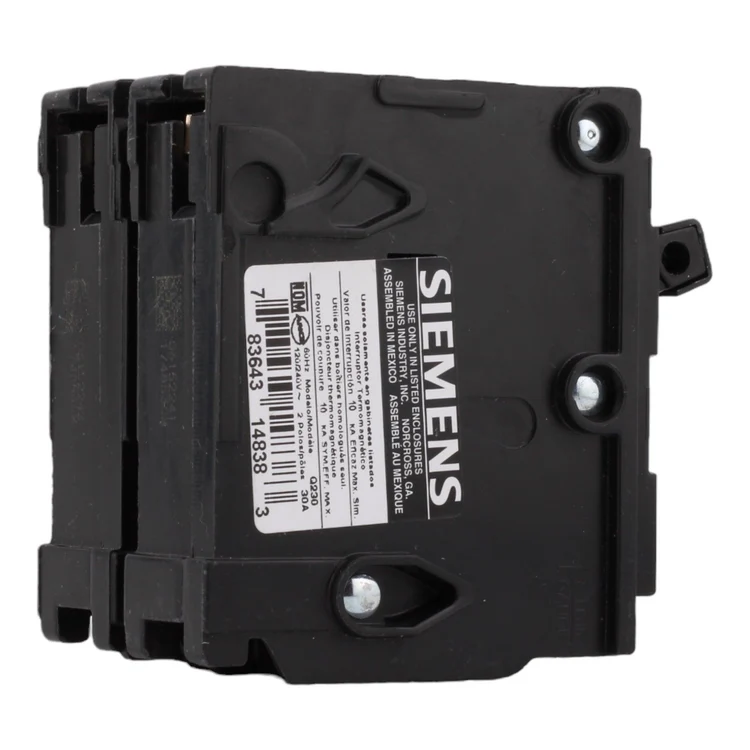

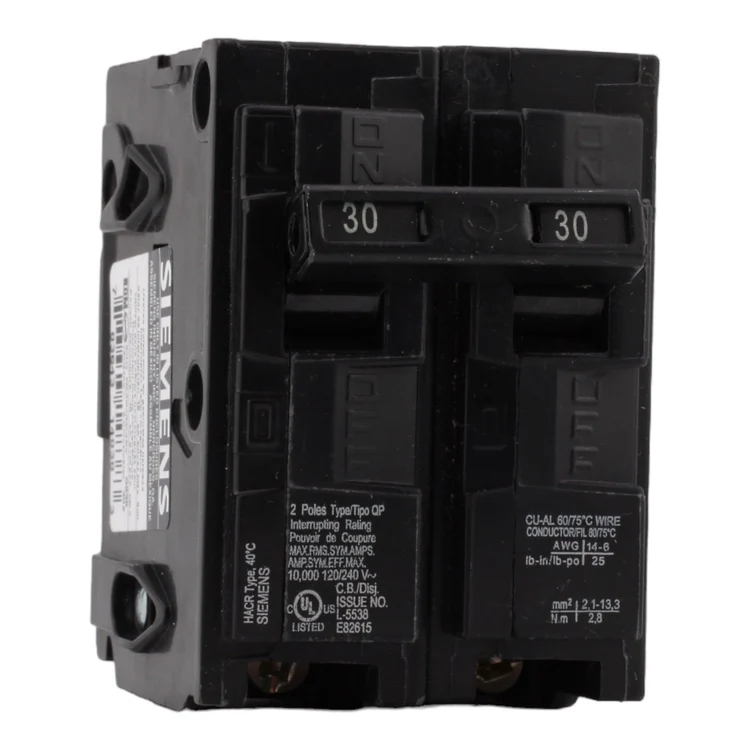

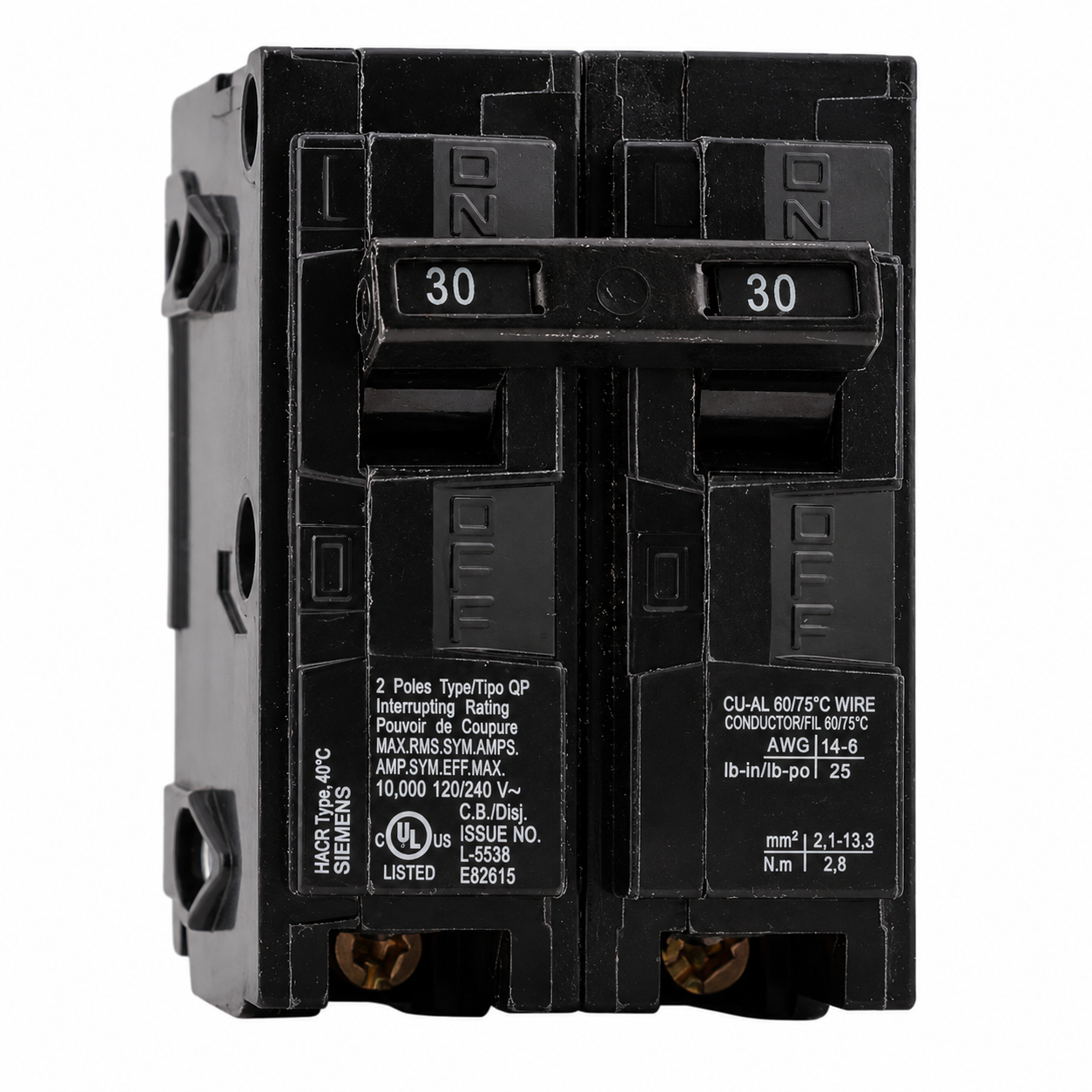

The Siemens Q230 is a 30 Amp, 120/240 Volt double-pole QP circuit breaker designed for compatible electrical distribution systems. It features a thermal-magnetic trip mechanism, plug-in connection, and Insta-Wire design for supported panel applications.
Condition: Brand new.
KEY FEATURES
• 30 AMP, 120/240 VOLT RATING: Rated for 30 amps and 120/240 volts for compatible 2-pole electrical applications.
• THERMAL MAGNETIC TRIP: Provides overload and short-circuit protection for compatible electrical systems.
• PLUG-IN CONNECTION: Features plug-in mounting and an Insta-Wire design for supported panels.
• QP SERIES COMPATIBILITY: Listed for compatible Siemens PL and ES series load centers.
• 10K AIC INTERRUPT RATING: Listed with a 10 kA interrupt rating and accepts #14 to #6 AWG wire.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q230
• Type: QP Circuit Breaker
• Amperage Rating: 30 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2 Pole / Double Pole
• Connection Type: Plug-In
• Mounting Type: Plug-In
• Interrupt Rating: 10 kA / 10,000 AIC
• Wire Size: #14 to #6 AWG
• Installation Feature: Insta-Wire
• Certification: UL Listed
• Dimensions (H × W × L): 2 × 3 × 3 in
• Net Weight: 0.551 lb
• Protection: Overload and Short-Circuit Protection
