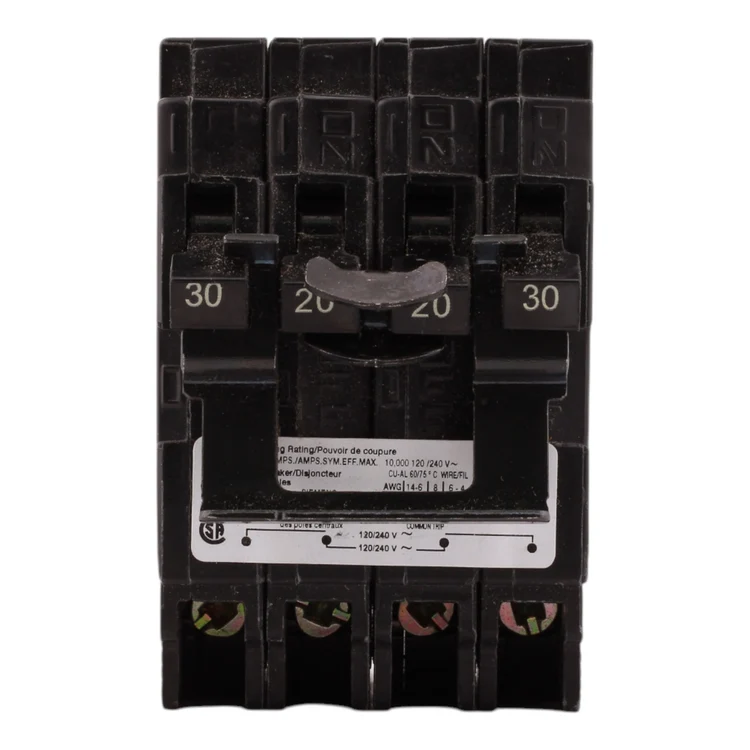

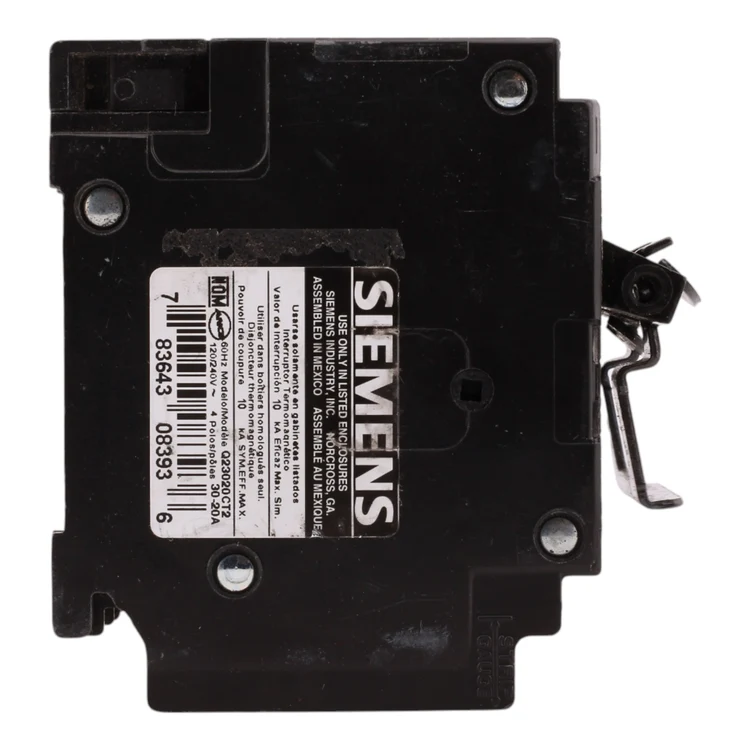

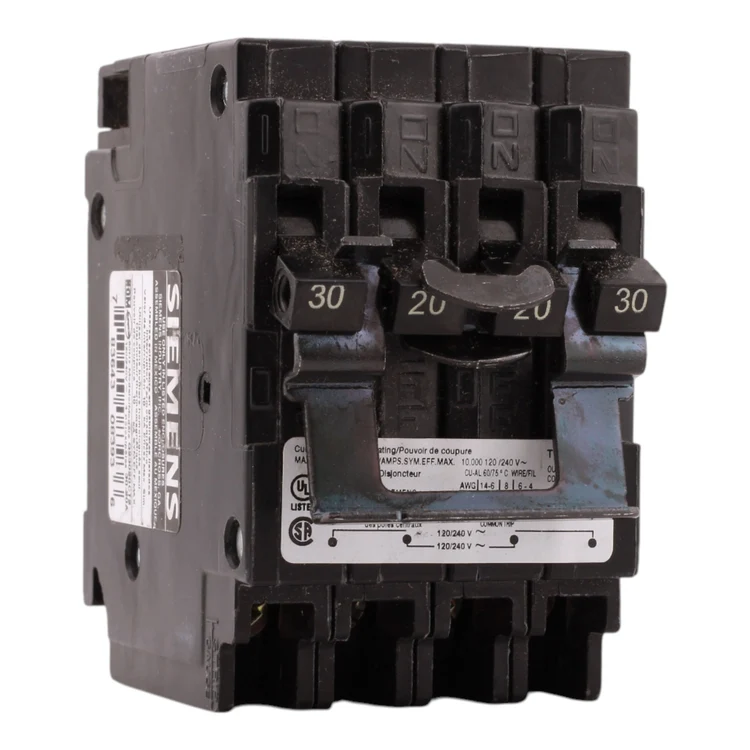

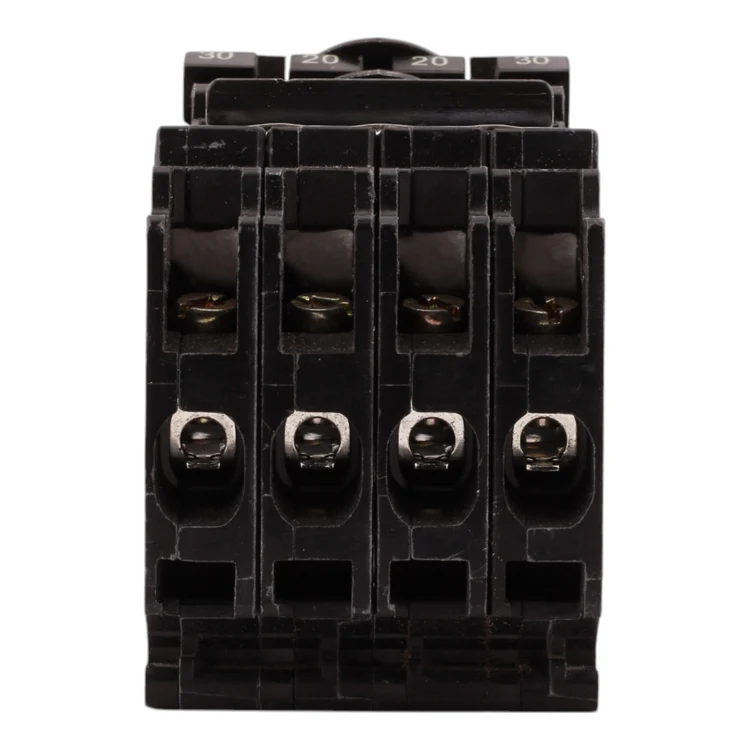

The Siemens Q23020CT2 is a QT thermal-magnetic circuit breaker for compatible Siemens electrical distribution systems. The supplied listing describes a 30 Amp and 20 Amp breaker arrangement, a 120/240 Volt rating, plug-in mounting, and a 10 kAIC interrupt capacity.
Condition: Brand new.
KEY FEATURES
• DUAL CIRCUIT CONFIGURATION: Combines 30 Amp and 20 Amp, 2-pole breaker configurations in one Siemens QT assembly, according to the supplied product information.
• 120/240V ELECTRICAL RATING: Rated for 120/240 Volts with a listed 10 kAIC interrupt capacity for systems requiring the specified voltage and interrupting rating.
• THERMAL-MAGNETIC PROTECTION: Features a thermal-magnetic trip mechanism designed to respond to overload and short-circuit conditions in compatible electrical installations.
• PLUG-IN INSTALLATION: Uses a plug-in mounting design and is listed as requiring two panel spaces for compatible Siemens panels that accept Type QT breakers.
• RESIDENTIAL APPLICATIONS: Intended for compatible residential load centers that accept Type QT circuit breakers; verify suitability for the intended panel and circuit arrangement.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q23020CT2
• Product Type: QT Circuit Breaker
• Circuit Breaker Type: Standard
• Breaker Series: QT
• Trip Type: Thermal-Magnetic
• Amperage Configuration: 30A/20A
• Current Ratings: 20 A and 30 A
• Number of Poles: 2-pole
• Voltage Rating: 120/240 Volts
• Interrupt Capacity: 10 kAIC
• Mounting Type: Plug-In Mount
• Dimensions (H × W × D): 2.756 × 2.756 × 1.969 in
• Weight: 0.728 lb
• Certification: UL 489
