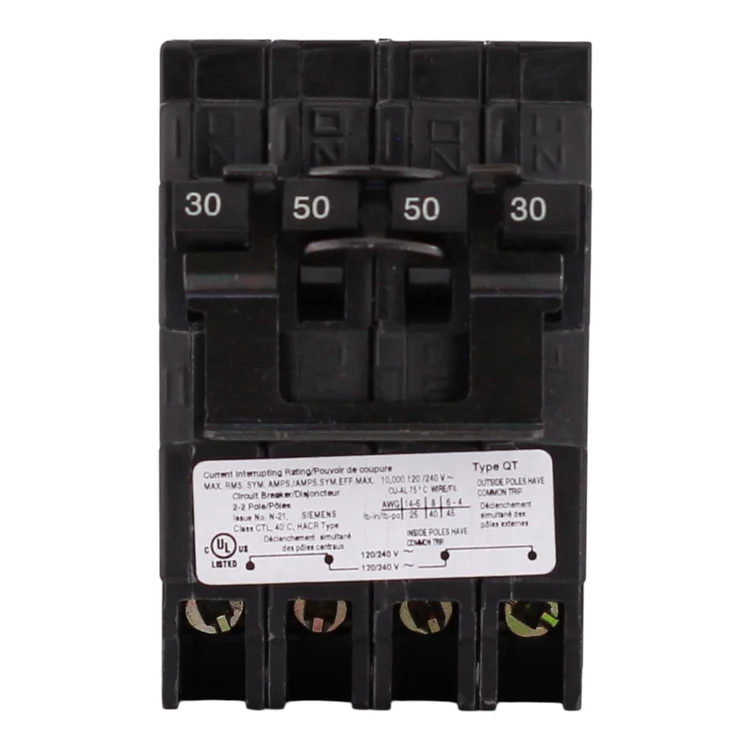

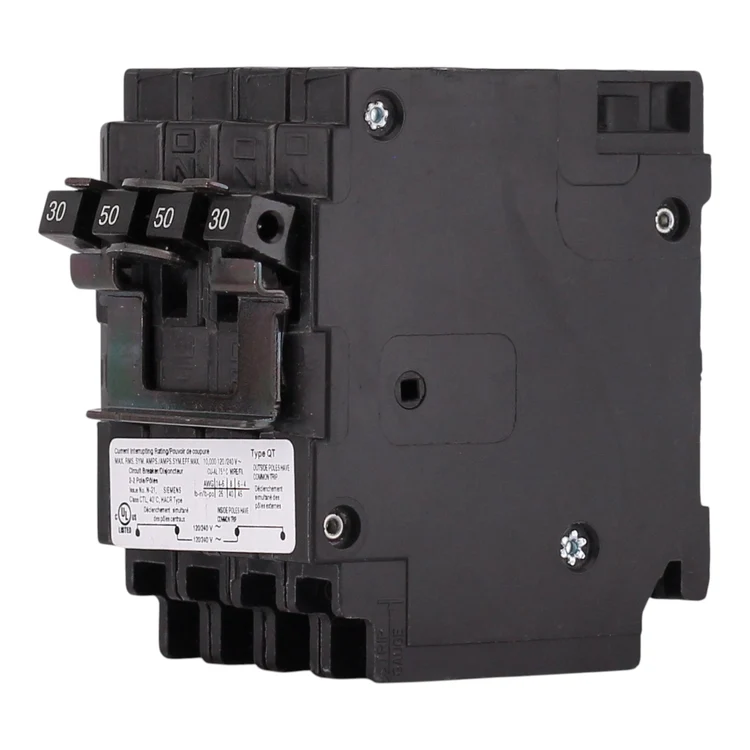

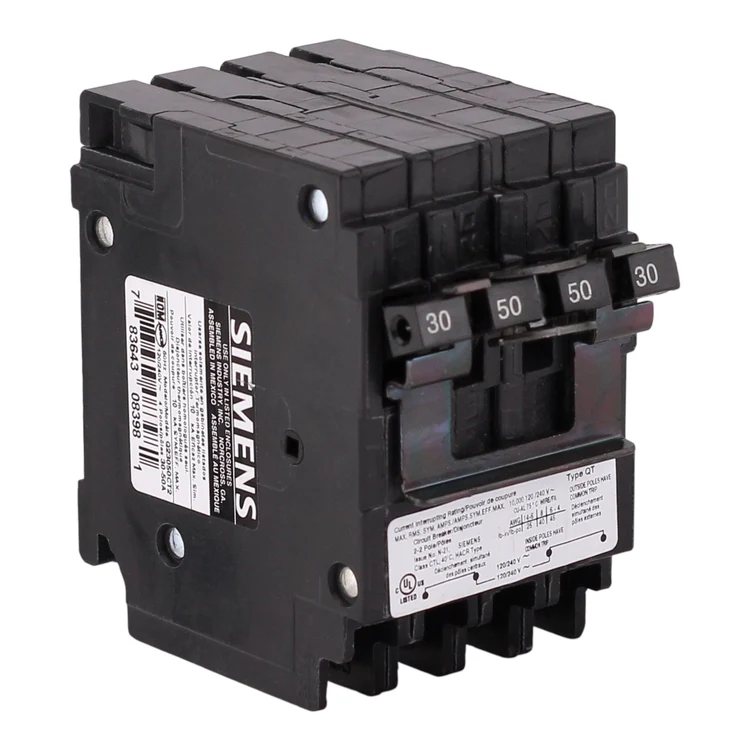

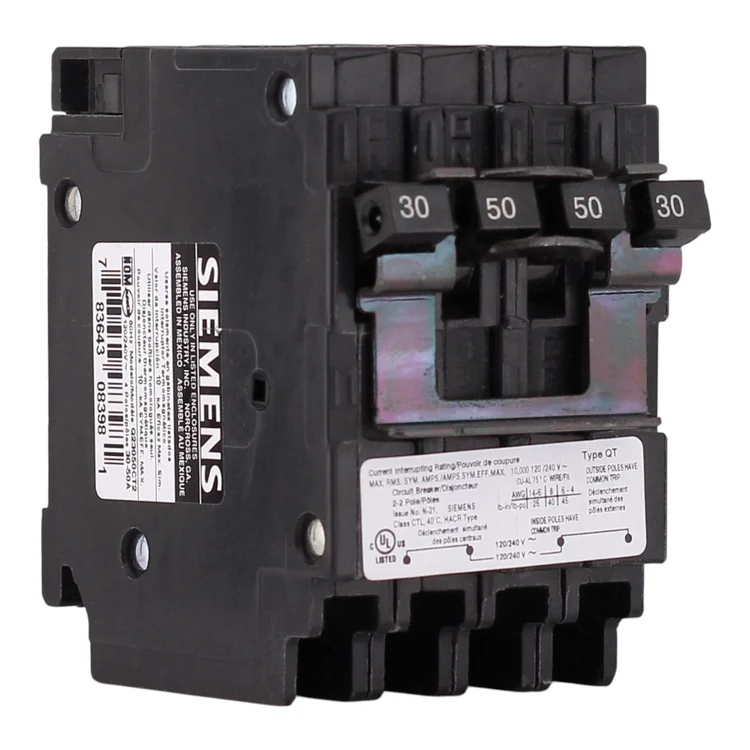

The Siemens Q23050CT2 is a QT-type quadplex thermal-magnetic circuit breaker for compatible Siemens load centers. It combines one 30A outer double-pole circuit and one 50A inner double-pole circuit in a single assembly. It is rated for 120/240V AC and a 10 kAIC interrupt rating, with plug-in mounting, Insta-Wire, and wire-size support specified for the outside and inside terminals.
Condition: Brand new.
KEY FEATURES
• 30A/50A DUAL CIRCUITS: Combines one 30A outer double-pole circuit with one 50A inner double-pole circuit in a quadplex assembly.
• 120/240V AC RATING: Designed for electrical distribution applications requiring the specified 120/240V AC rating.
• 10 kAIC INTERRUPT RATING: Has a specified 10 kAIC interrupt rating for compatible electrical systems.
• PLUG-IN MOUNTING WITH INSTA-WIRE: Features plug-in mounting, Insta-Wire, and a stated two-panel-space requirement.
• COPPER & ALUMINUM WIRE SUPPORT: Outside terminals accept #14–6 AWG copper or aluminum; inside terminals accept #8–6 AWG copper or #8–4 AWG aluminum.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q23050CT2
• Product Type: Quadplex Circuit Breaker
• Configuration: One 30A outer double-pole circuit and one 50A inner double-pole circuit
• Amperage Rating: 30A outer / 50A inner
• Number of Poles: 2-pole per circuit; 4 poles total (as listed)
• Voltage Rating: 120/240V AC
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-in
• Included Feature: Insta-Wire
• Panel Space Requirement: 2 spaces
• Outside Terminal Wire Size: #14–6 AWG copper or aluminum
• Inside Terminal Wire Size: #8–6 AWG copper; #8–4 AWG aluminum
• Certifications / Ratings: UL 489; HACR Rated
• Height: 2.00 in
• Width: 3.00 in
• Depth: 3.00 in
• Weight: 0.772 lb
