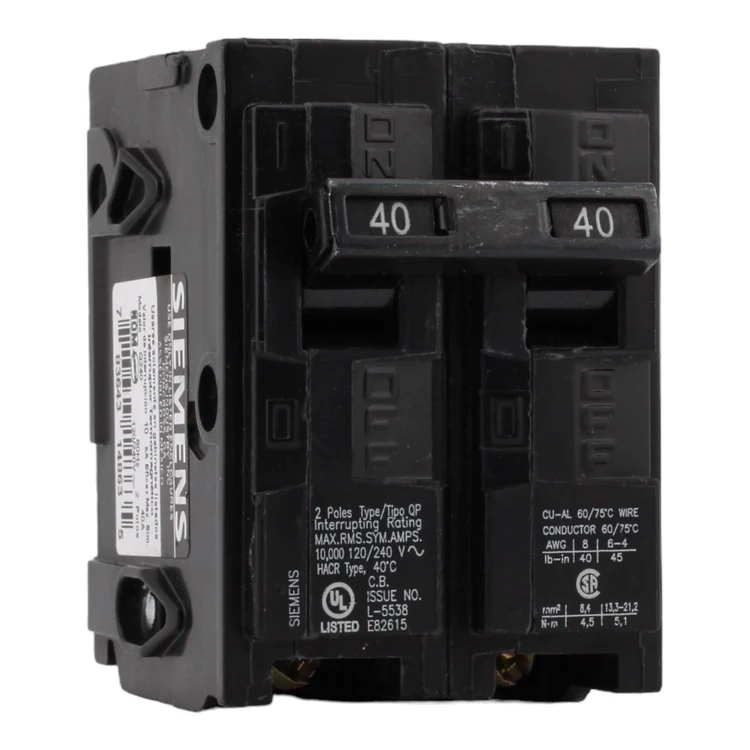

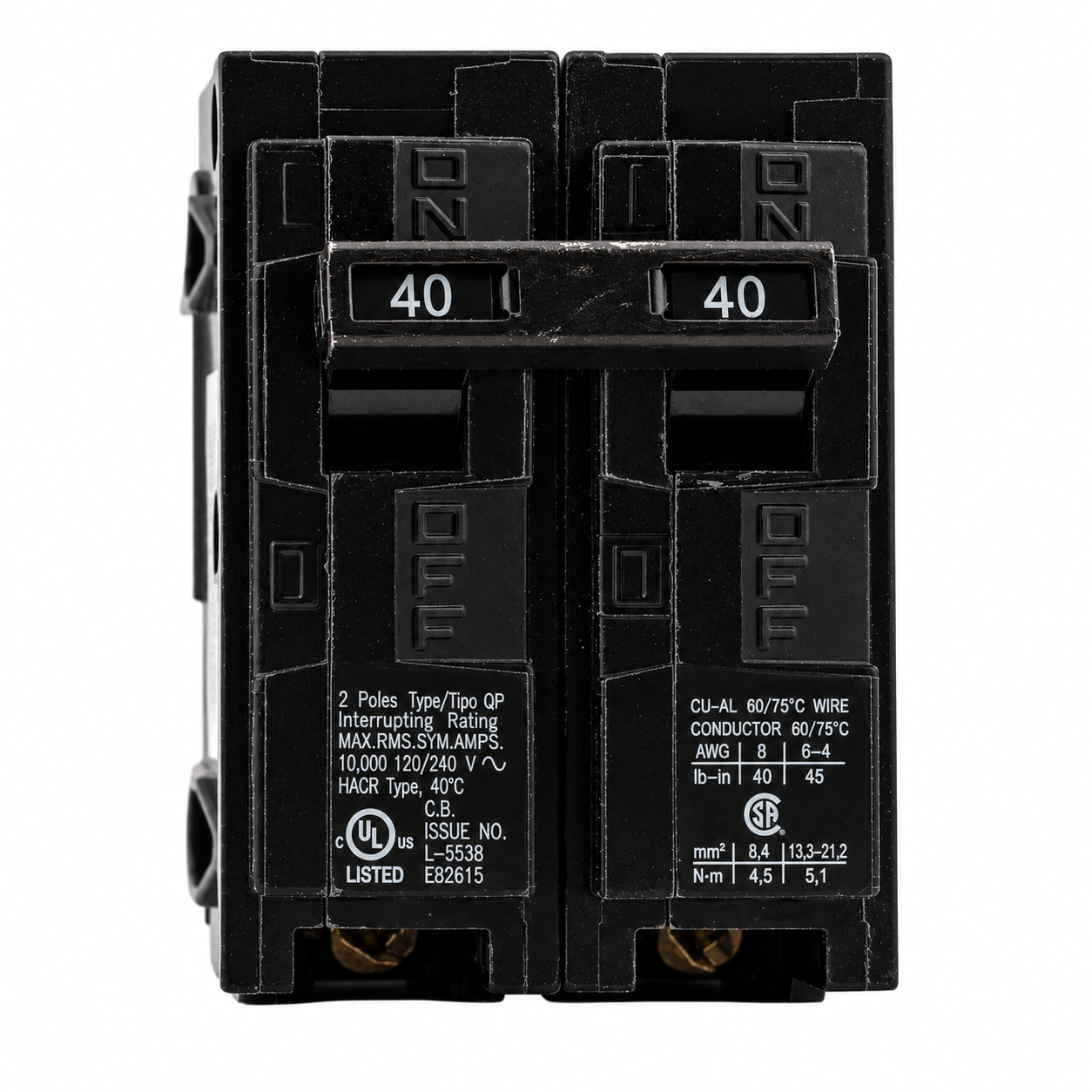

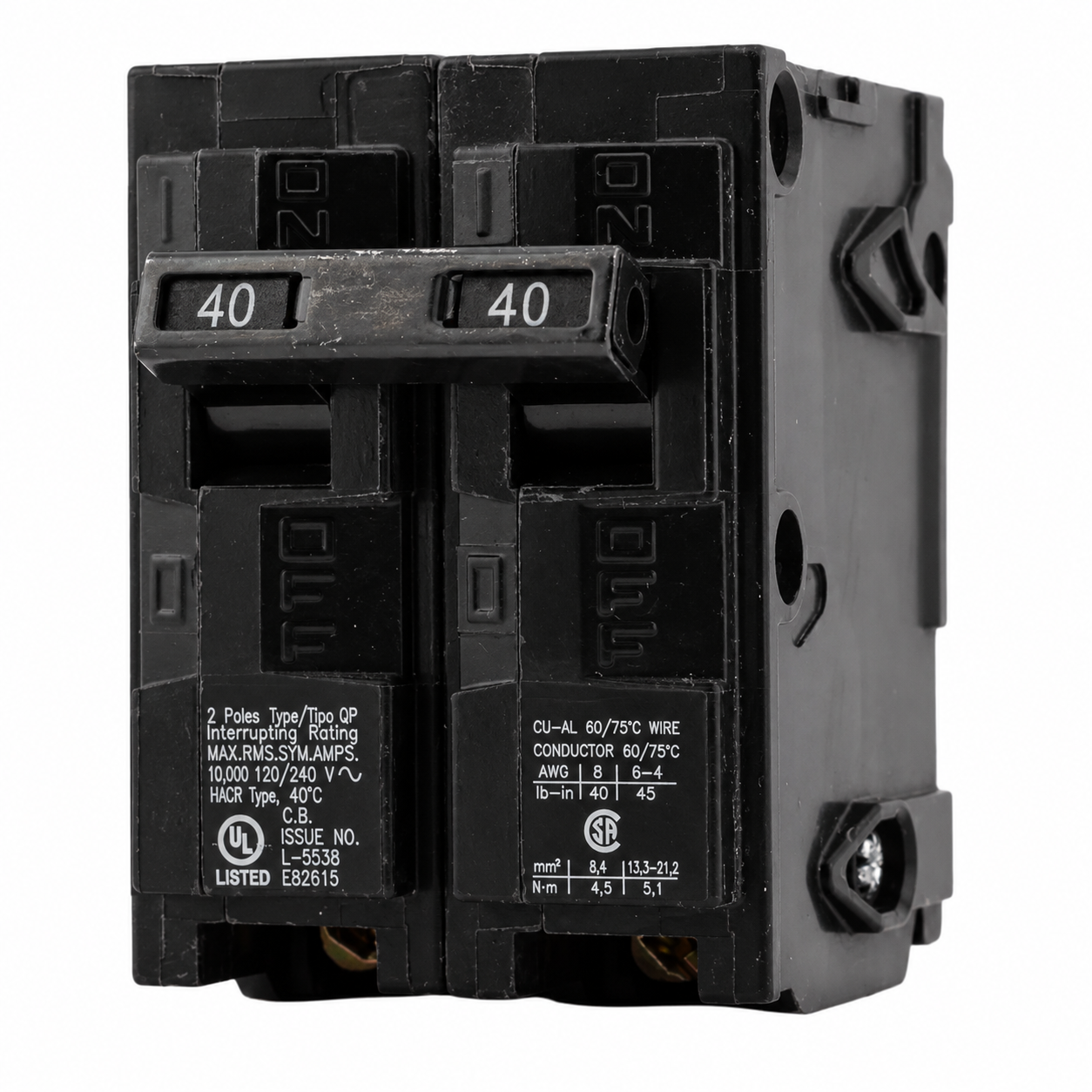

The Siemens Q240 is a 40 Amp, 120/240 Volt double-pole QP circuit breaker designed for compatible electrical distribution systems. It features thermal-magnetic protection, plug-in mounting, and an Insta-Wire connection design.
Condition: Brand new.
KEY FEATURES
• 40 AMP, 120/240 VOLT RATING: Designed for compatible electrical systems requiring a 40A, two-pole breaker.
• THERMAL MAGNETIC TRIP: Provides overload and short-circuit protection.
• PLUG-IN CONNECTION: Features plug-in mounting and Insta-Wire design for compatible panels.
• QP SERIES COMPATIBILITY: Listed for compatible Siemens PL and ES series load centers.
• 10 KA INTERRUPT RATING: Has a listed 10 kA interrupt rating and supports the specified wire sizes.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q240
• Type: QP Circuit Breaker
• Amperage Rating: 40 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2 Pole / Double Pole
• Connection Type: Plug-In
• Mounting Type: Plug-In
• Trip Type: Thermal Magnetic
• Interrupt Rating: 10 kA / 10,000 AIC
• Wire Size: Copper: #8 to #6 AWG; aluminum: #8 to #4 AWG, as listed in supplied text
• Installation Feature: Insta-Wire
• Certification: UL Listed
• Dimensions (H × W × L): 3 × 2 × 3 in
• Net Weight: 0.551 lb
• Protection: Overload and Short-Circuit Protection
