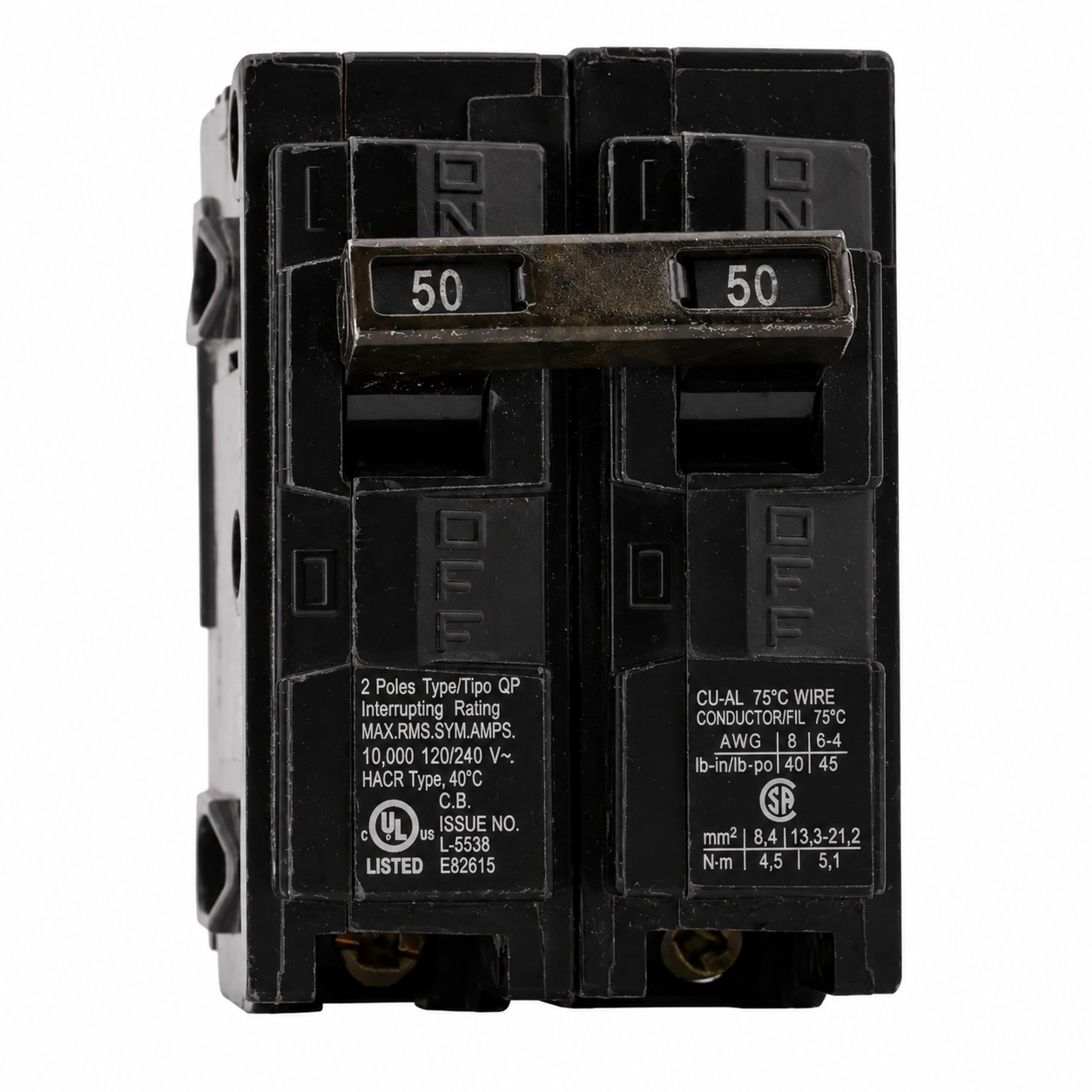

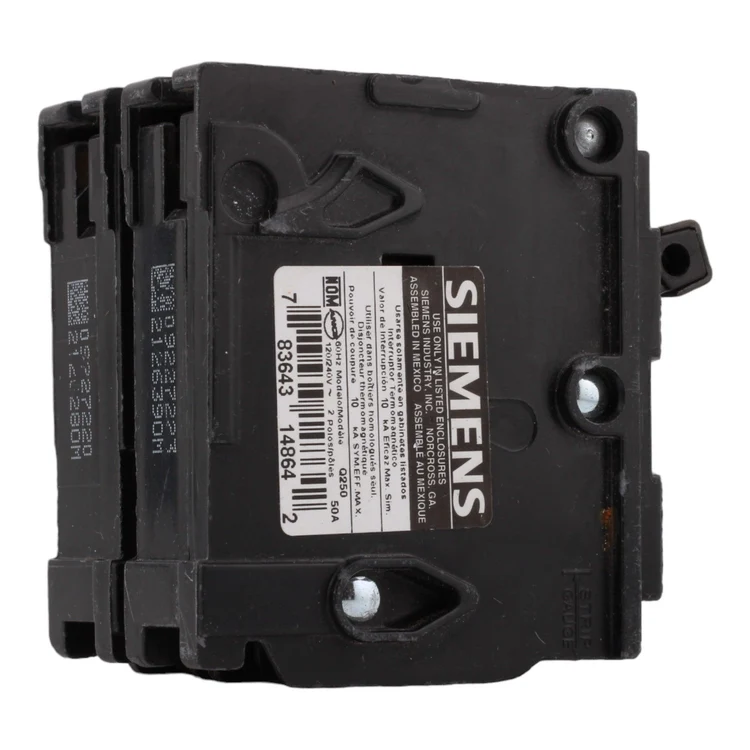

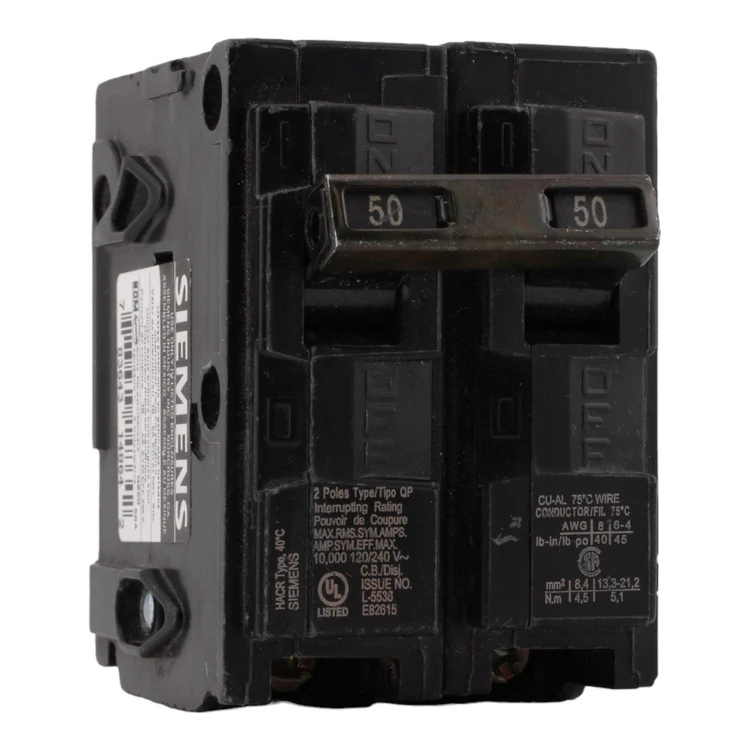

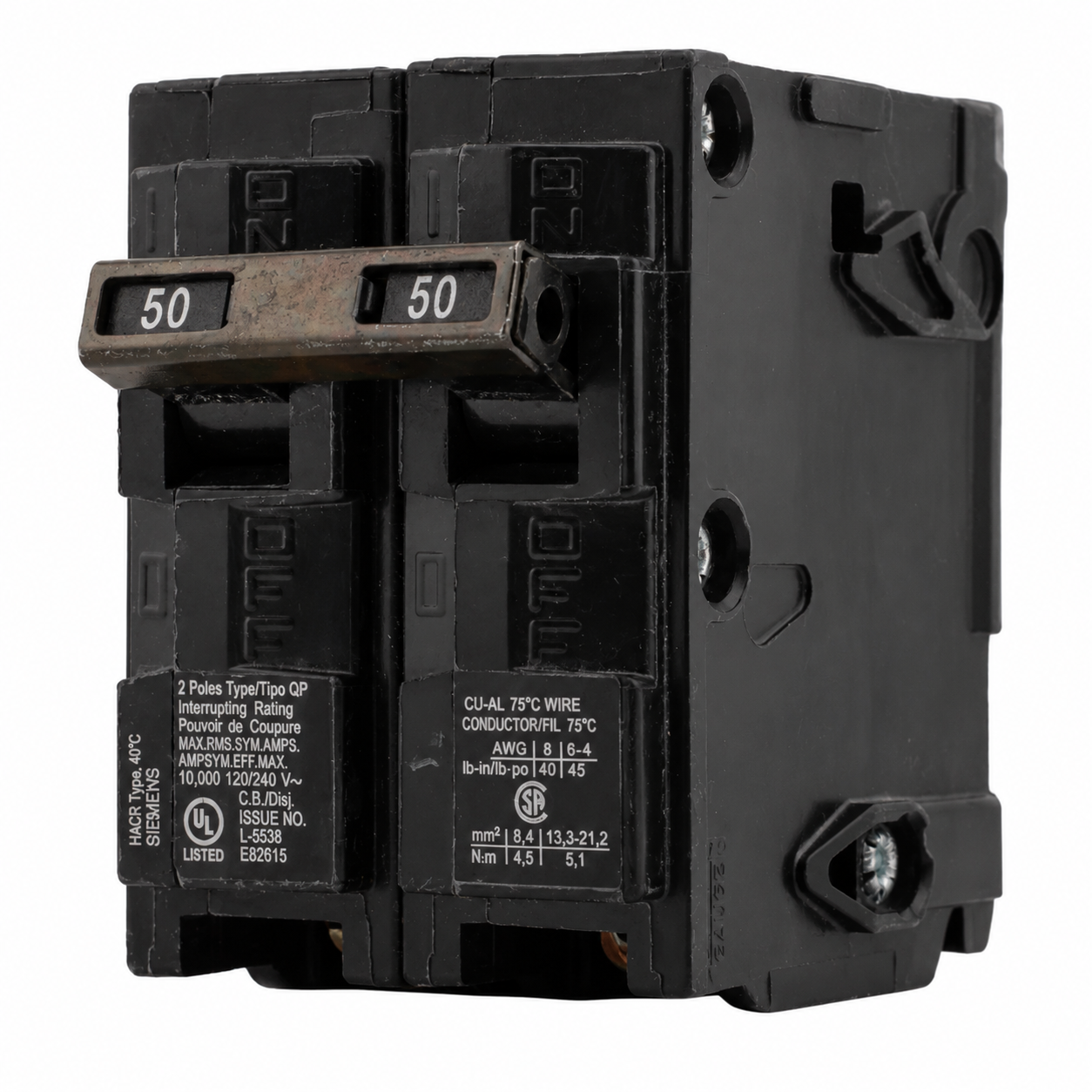

The Siemens Q250 is a 50 Amp, 240 Volt double-pole QP Series circuit breaker designed for compatible Siemens load centers. It features a standard trip mechanism, plug-in connection, and Insta-Wire design.
Condition: Brand new.
KEY FEATURES
• 50 AMP, 240 VOLT RATING: Designed for compatible electrical systems requiring a 50A, double-pole breaker.
• STANDARD TRIP DESIGN: Provides the specified standard-trip operation for compatible branch-circuit applications.
• PLUG-IN CONNECTION: Features plug-in mounting and an Insta-Wire design for compatible load centers.
• OVERLOAD & SHORT-CIRCUIT PROTECTION: Provides protection against overload and short-circuit conditions.
• PANEL COMPATIBILITY: Listed for compatible Siemens PL and ES series load centers.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q250
• Product Range: QP Series
• Amperage Rating: 50 Amp / 50 Amps
• Voltage Rating: 240 Volt
• Number of Poles: 2 Pole / Double Pole
• Connection Type: Plug-In
• Mounting Type: Plug-In
• Trip Type: Standard Trip
• Interrupt Rating: 10 kA / 10,000 AIC
• Installation Feature: Insta-Wire
• Certification: UL Listed
• Protection: Overload and Short-Circuit Protection
• Dimensions (H × W × L): 4.5 × 2 × 3.5 in
• Net Weight: 1 lb
