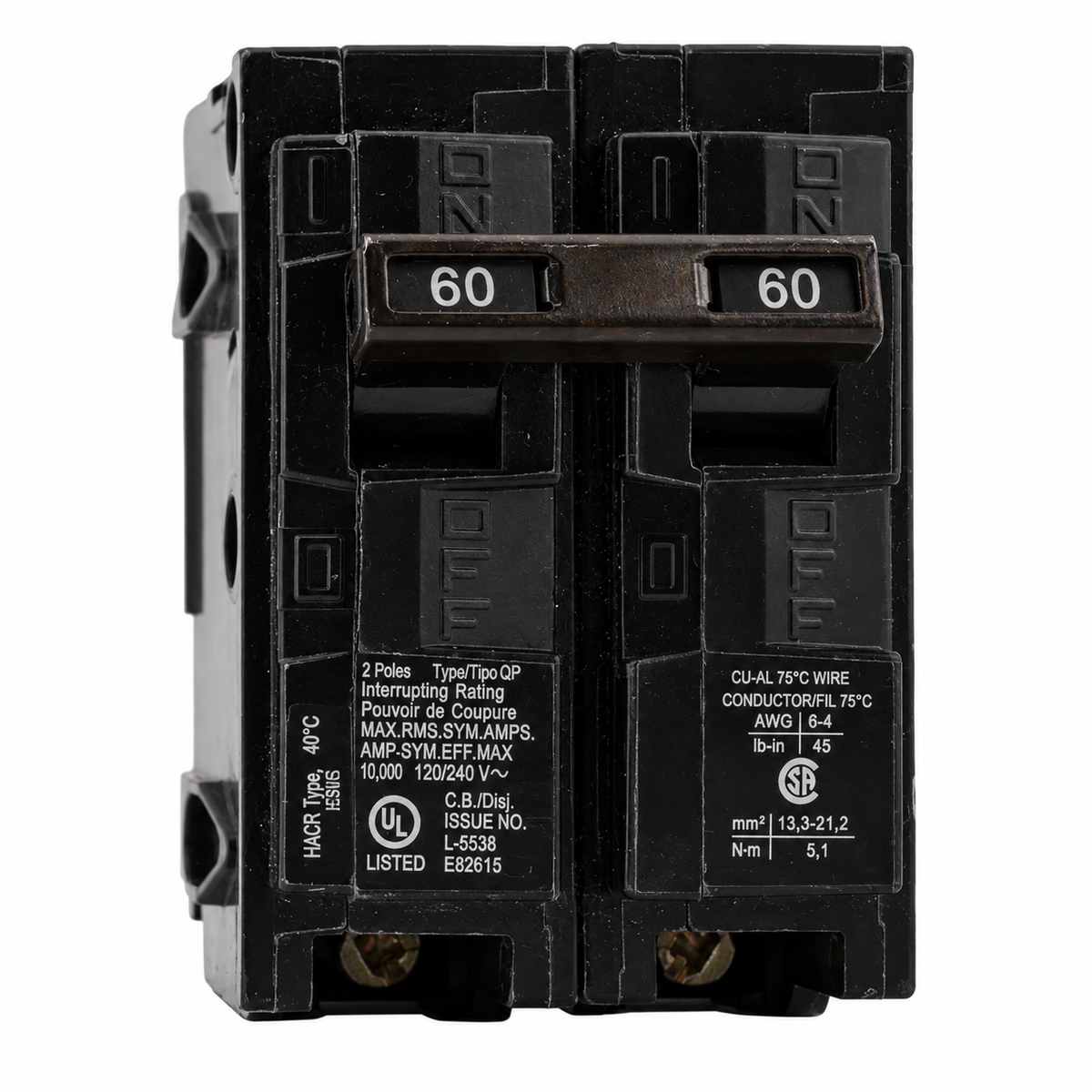

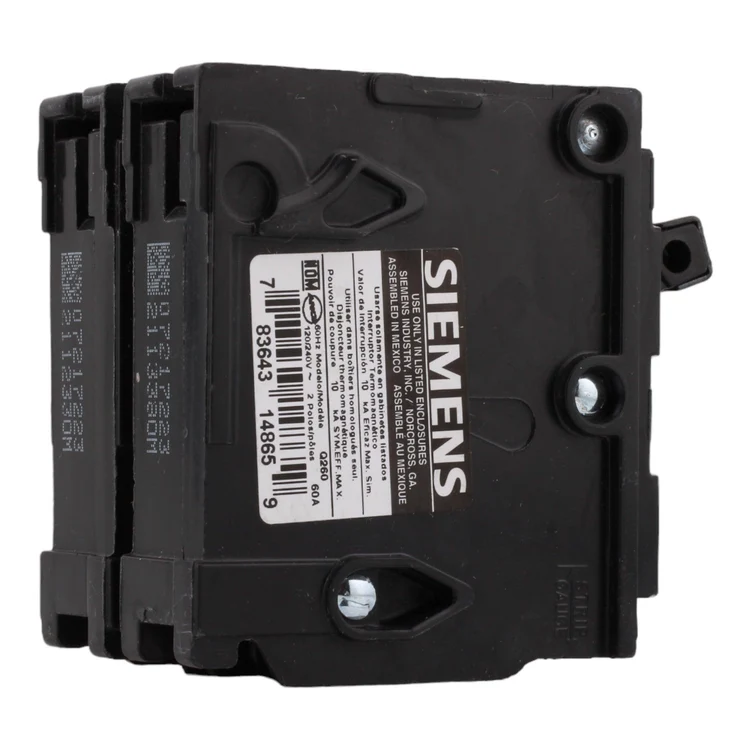

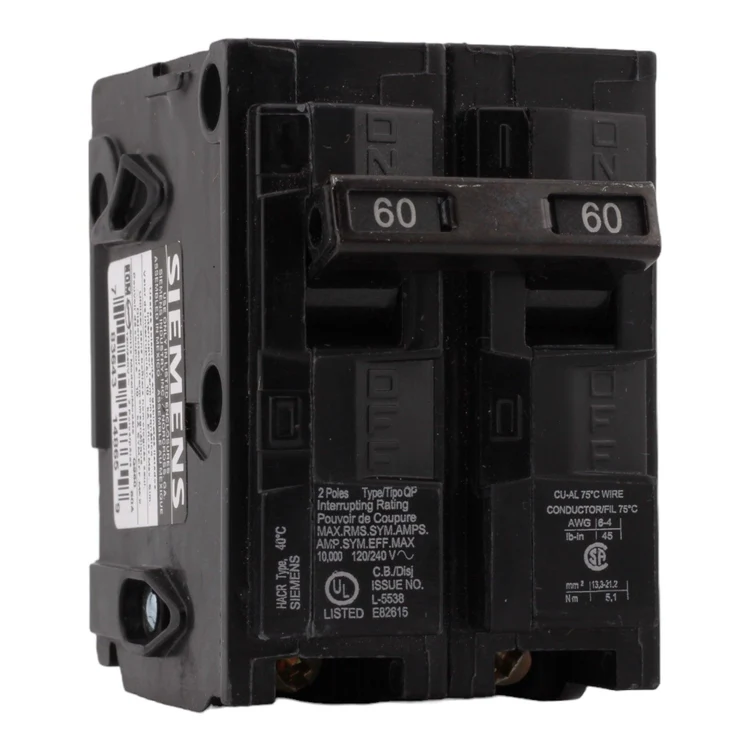

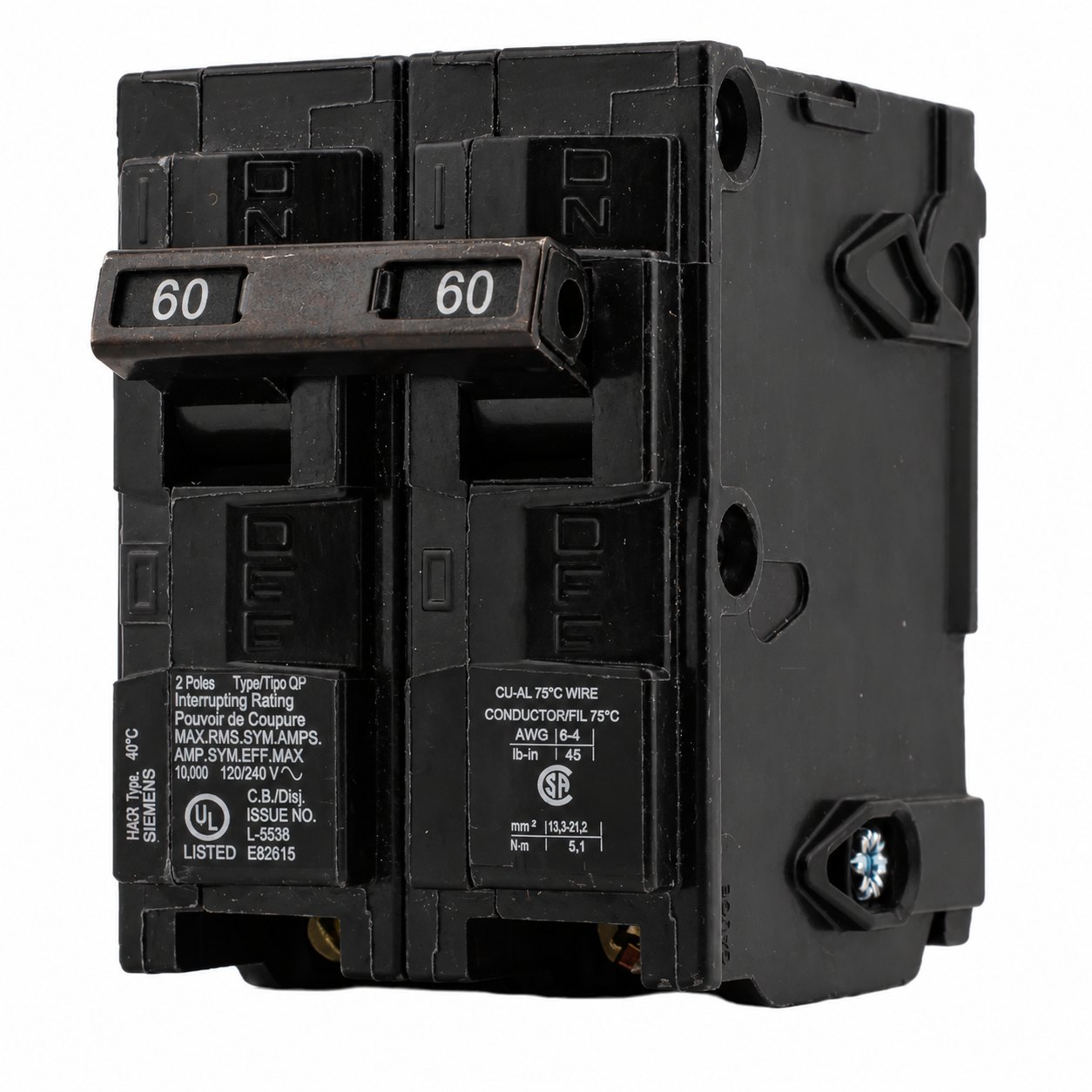

The Siemens Q260 is a 60 Amp, 120/240 Volt AC double-pole thermal-magnetic circuit breaker designed for compatible Siemens QP load centers and residential panels. It features plug-in mounting, Insta-Wire technology, and overload and short-circuit protection.
Condition: Brand new.
KEY FEATURES
• 60 AMP, 120/240 VOLT RATING: Designed for compatible electrical systems requiring a 60A, double-pole breaker.
• THERMAL MAGNETIC PROTECTION: Provides overload and short-circuit protection.
• PLUG-IN INSTALLATION: Features plug-in mounting and Insta-Wire technology for supported panels.
• QP SERIES COMPATIBILITY: Listed for compatible Siemens QP load centers, including PL and ES series.
• 10 KAIC INTERRUPT RATING: Rated at 10 kAIC and accepts the listed copper or aluminum conductor sizes.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q260
• Breaker Type: Thermal Magnetic
• Amperage Rating: 60 Amps
• Voltage Rating: 120/240 Volts AC
• Number of Poles: 2-Pole / Double Pole
• Mounting Type: Plug-In
• Connection Terminals: Load Lug / Plug-In
• Interrupt Rating: 10 kAIC / 10,000 AIC
• Wire Size: #8 AWG to 2/0 AWG
• Conductor Compatibility: Copper / Aluminum
• Installation Feature: Insta-Wire
• Protection: Overload and Short-Circuit Protection
• Certification: UL Listed
• Height: 2.00 in
• Width: 3.00 in
• Depth: 3.00 in
• Net Weight: 0.617 lbs
