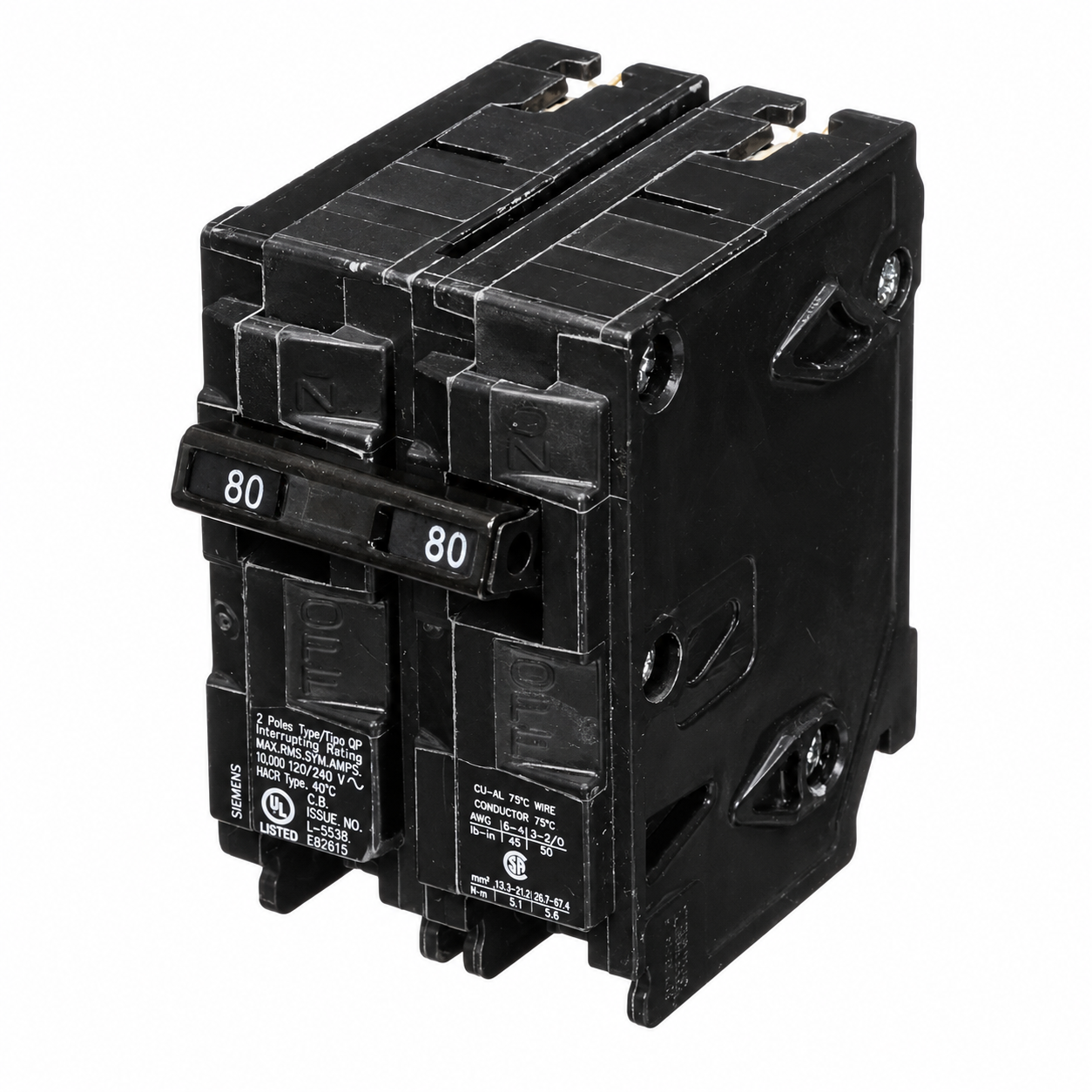

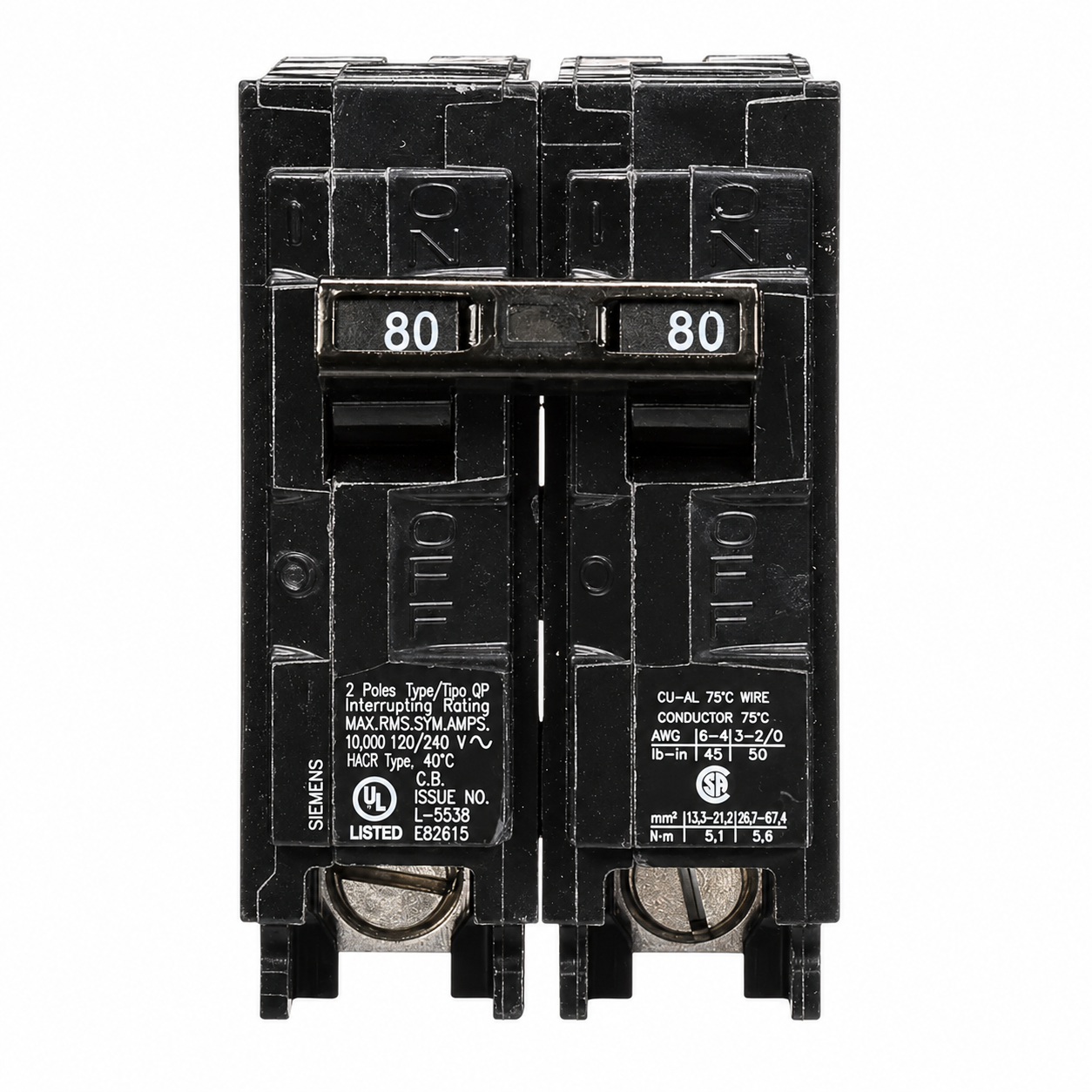

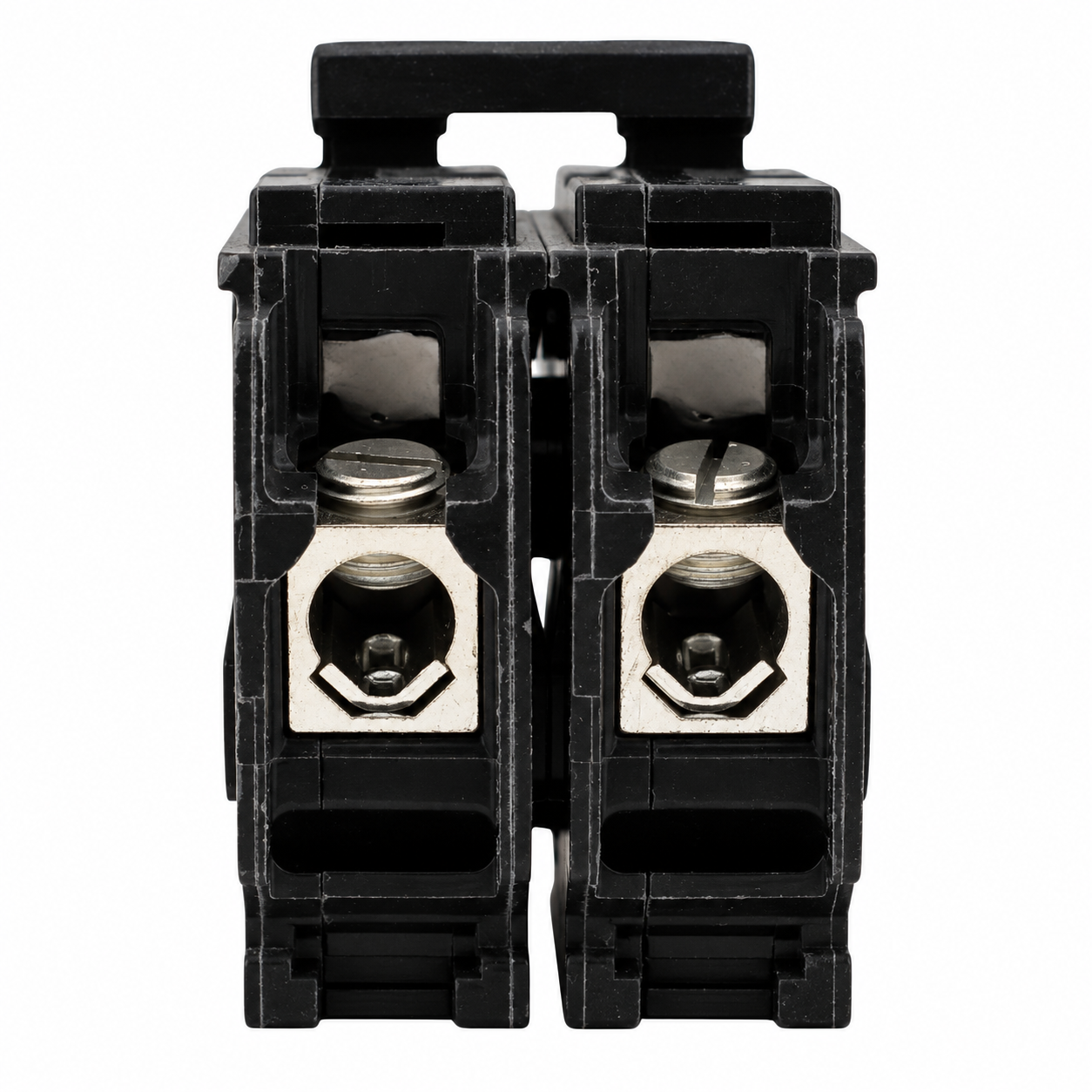

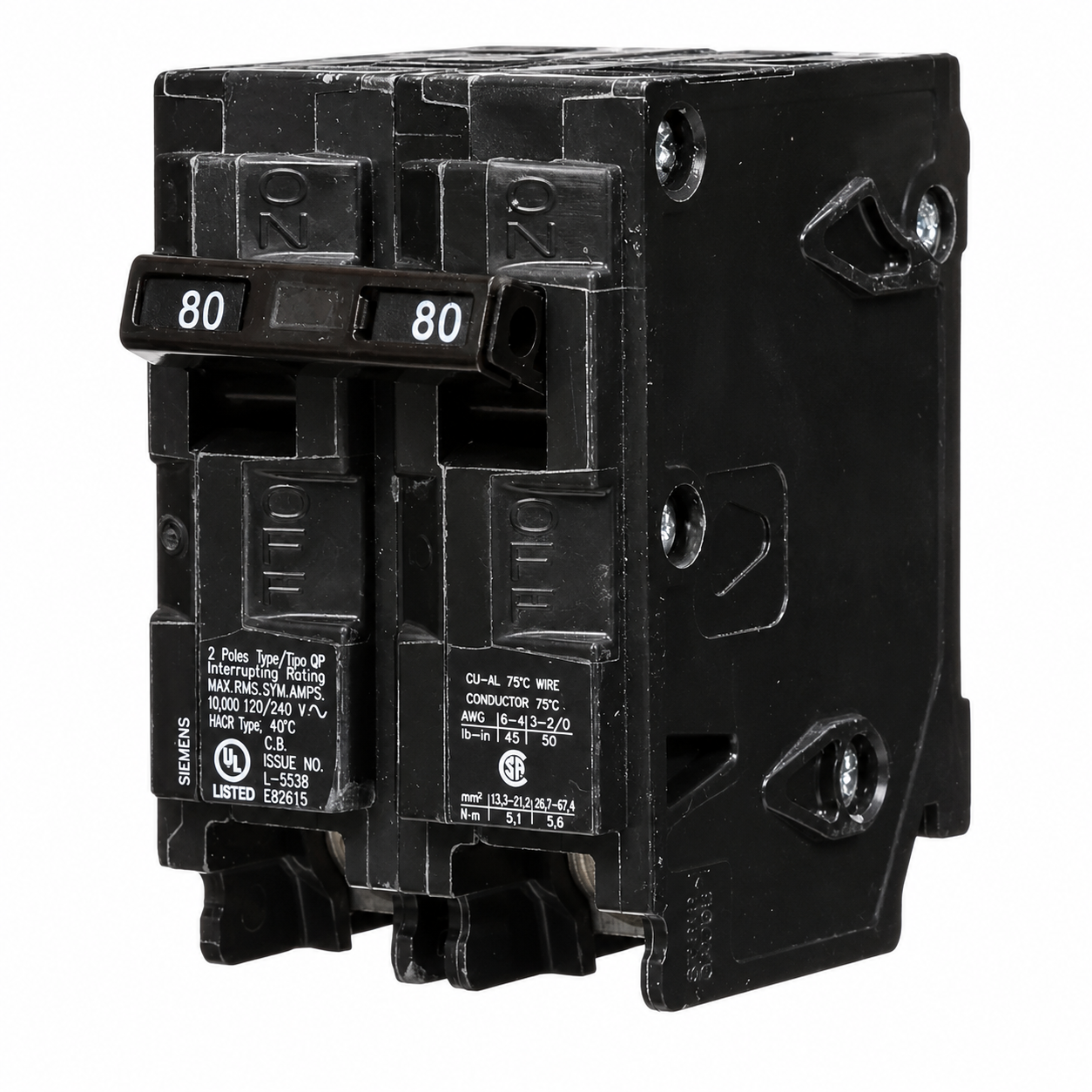

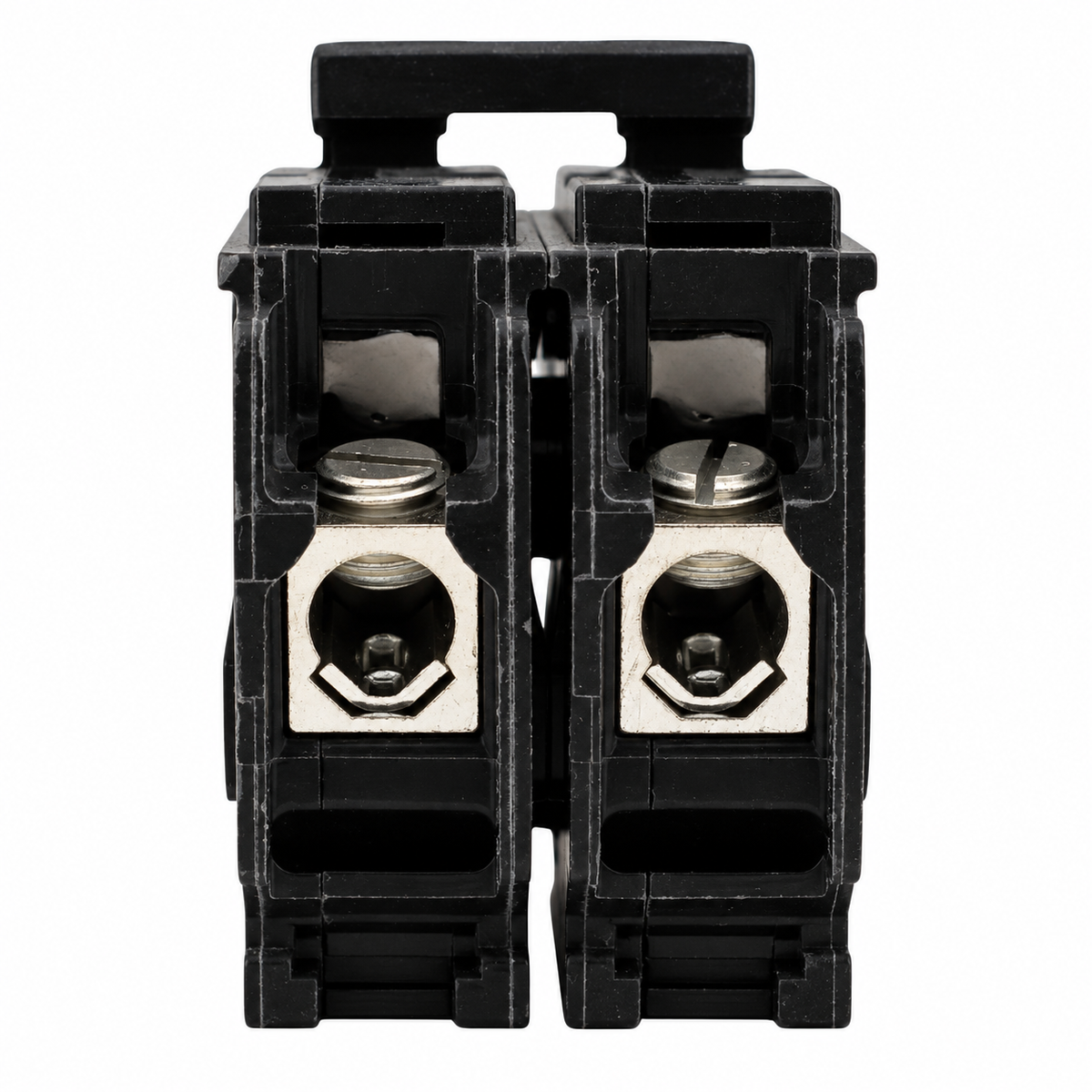

The Siemens Q280 is an 80 Amp, 120/240 Volt AC double-pole thermal-magnetic circuit breaker designed for compatible Siemens load centers. It features plug-in mounting, Insta-Wire technology, and overload and short-circuit protection.
Condition: Brand new.
KEY FEATURES
• 80 AMP, 120/240 VOLT RATING: Designed for compatible electrical systems requiring an 80A, double-pole breaker.
• THERMAL MAGNETIC PROTECTION: Provides overload and short-circuit protection.
• PLUG-IN INSTALLATION: Features plug-in mounting and Insta-Wire technology for compatible panels.
• SIEMENS LOADCENTER COMPATIBILITY: Listed for compatible Siemens EQ, EQL, SEQ, EQG, PL, and ES series load centers.
• 10 KAIC & CERTIFICATIONS: Listed with a 10 kAIC interrupt rating, UL listing, HACR rating, and CSA certification.
SPECIFICATIONS
• Brand: Siemens
• Model Number: Q280
• Breaker Type: Thermal Magnetic
• Amperage Rating: 80 Amps
• Voltage Rating: 120/240 Volts AC
• Number of Poles: 2-Pole / Double Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10 kAIC / 10,000 AIC
• Wire Size: #8–2/0 AWG Cu/Al; also listed as #4–1/0 AWG Cu/Al in some sources
• Installation Feature: Insta-Wire
• Applications: Residential and Light Commercial
• Certification: UL Listed
• Height: 3 in
• Width: 2 in
• Depth: 3 in
• Weight: 0.617 lbs
