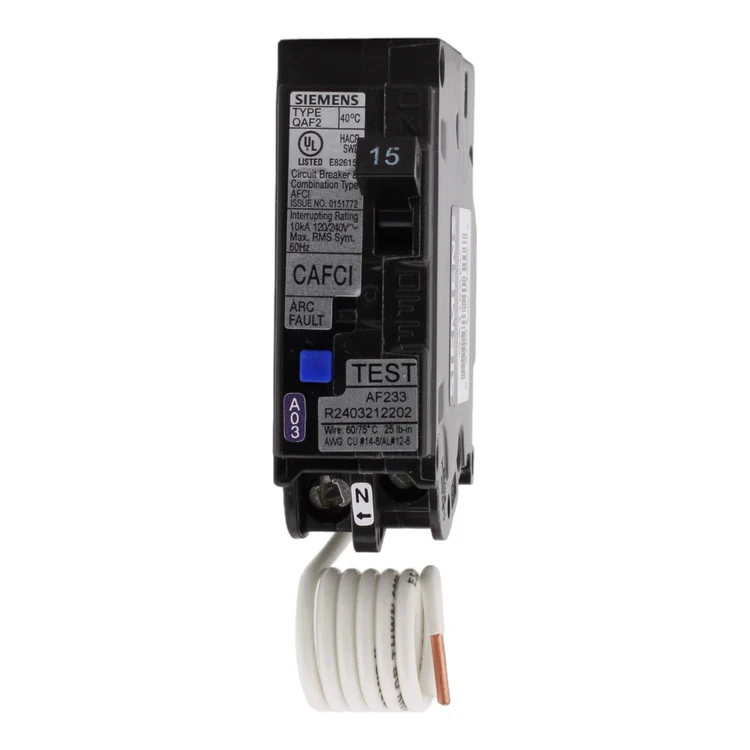

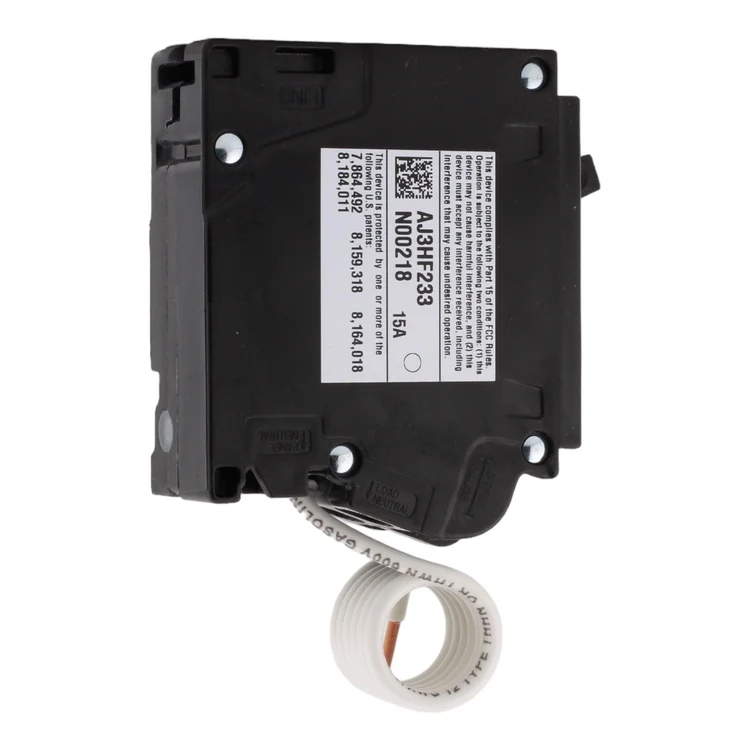

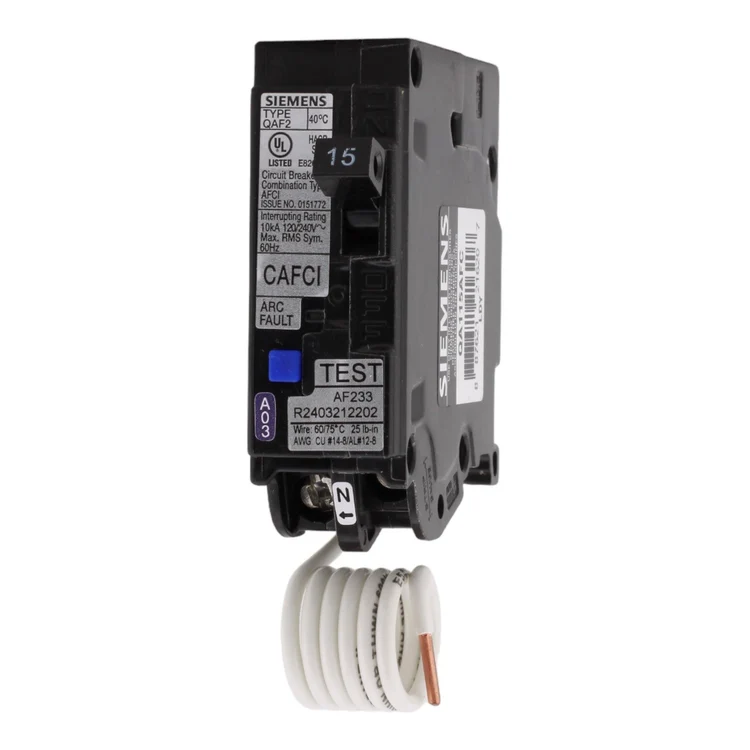

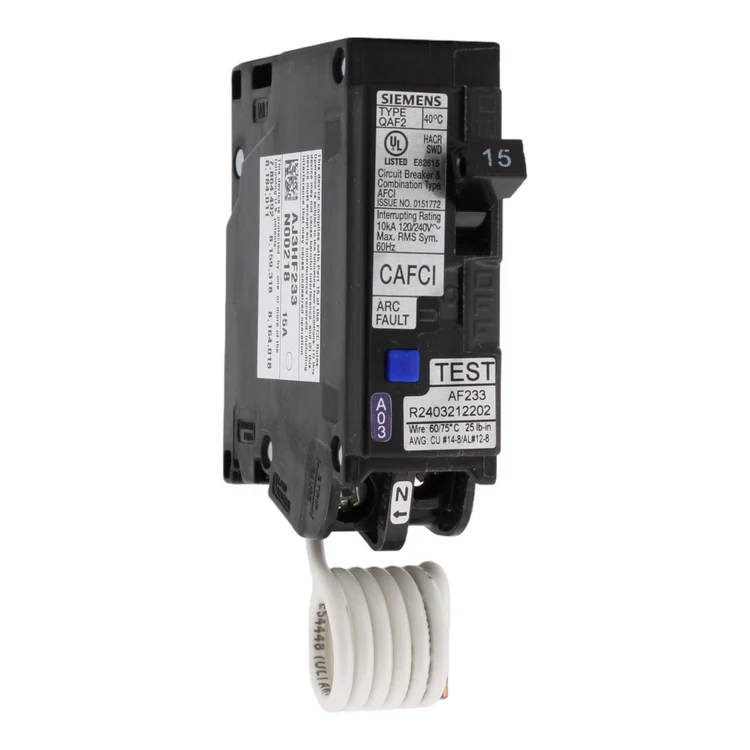

The Siemens QA115AFC is a 15 Amp, 120 Volt AC, single-pole Combination Arc-Fault Circuit Interrupter (AFCI) circuit breaker for compatible Siemens load centers and residential applications. It features thermal-magnetic trip operation, plug-in mounting, and a pigtail neutral connection.
Condition: Brand new.
KEY FEATURES
• 15A SINGLE-POLE CIRCUIT: Rated for 15 amps and 120 volts AC for compatible residential electrical applications.
• ARC-FAULT DETECTION: Combination AFCI design detects arc faults and provides the specified circuit protection.
• PIGTAIL NEUTRAL CONNECTION: Features a pigtail neutral connection and plug-in mounting for supported Siemens loadcenter applications.
• THERMAL-MAGNETIC TRIP: Accepts #14-8 AWG wire and has a specified terminal tightening torque of 20 lb-in.
• PROTECTION & RATING: Features a 10 kAIC interrupt rating and is UL Listed, HACR Rated, and SWD Rated.
SPECIFICATIONS
• Brand: Siemens
• Model Number: QA115AFC
• Type: Pigtail Neutral Circuit Breaker
• Trip Type: Thermal-Magnetic
• Amperage Rating: 15 Amps
• Voltage Rating: 120 Volts AC
• Number of Poles: 1-Pole
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-In
• Wire Size: #14-8 AWG
• Application: Residential Use
• Height: 3.0 in
• Width: 1.0 in
• Depth: 3.0 in
• Weight: 0.4 lbs
