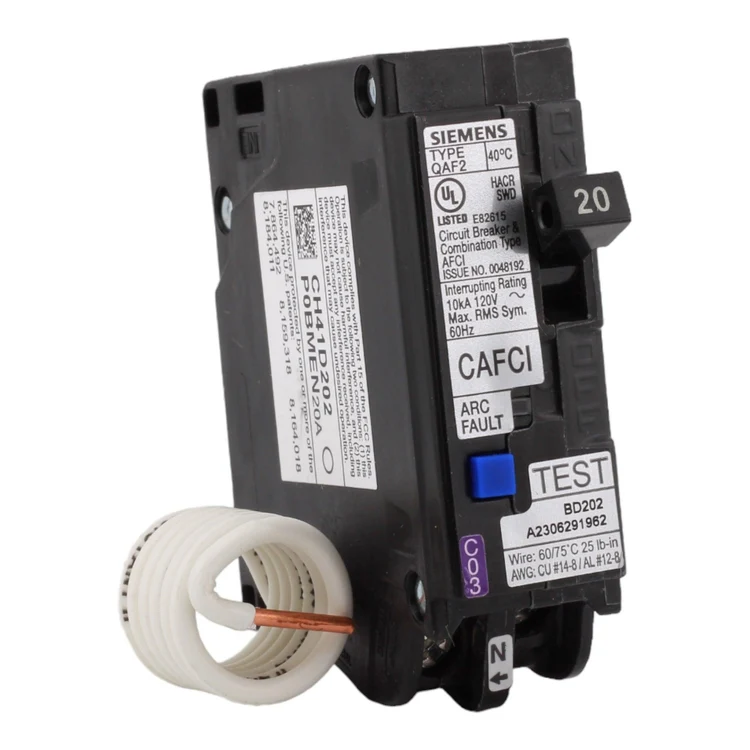

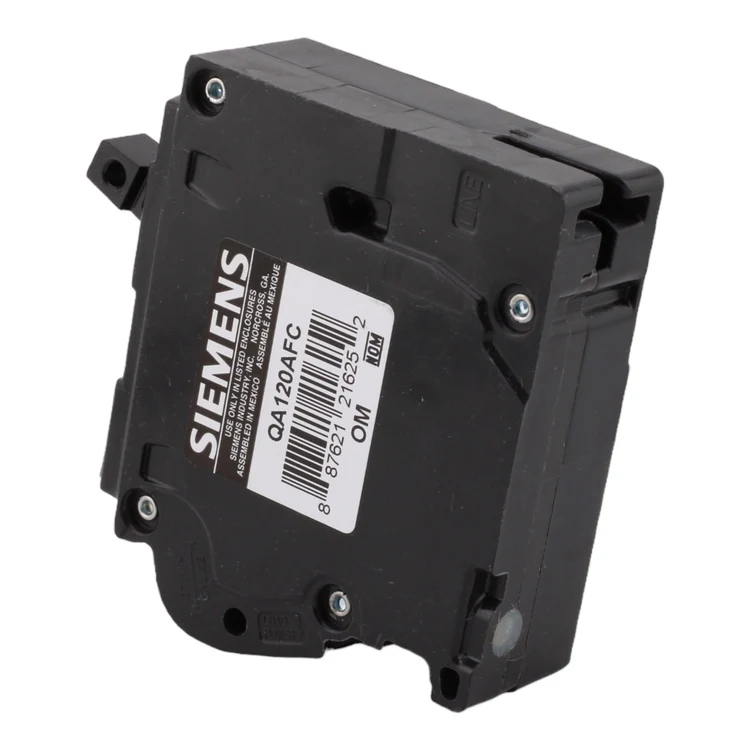

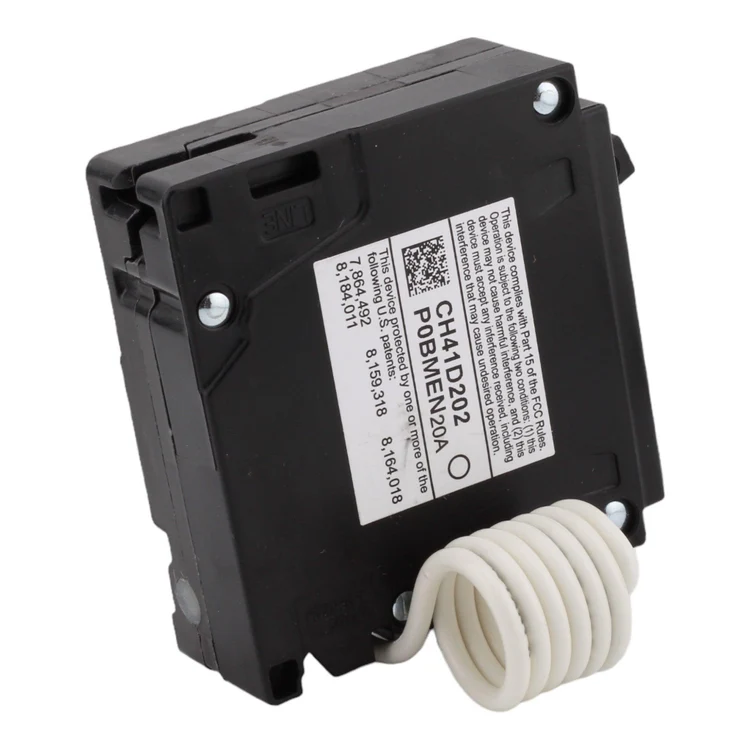

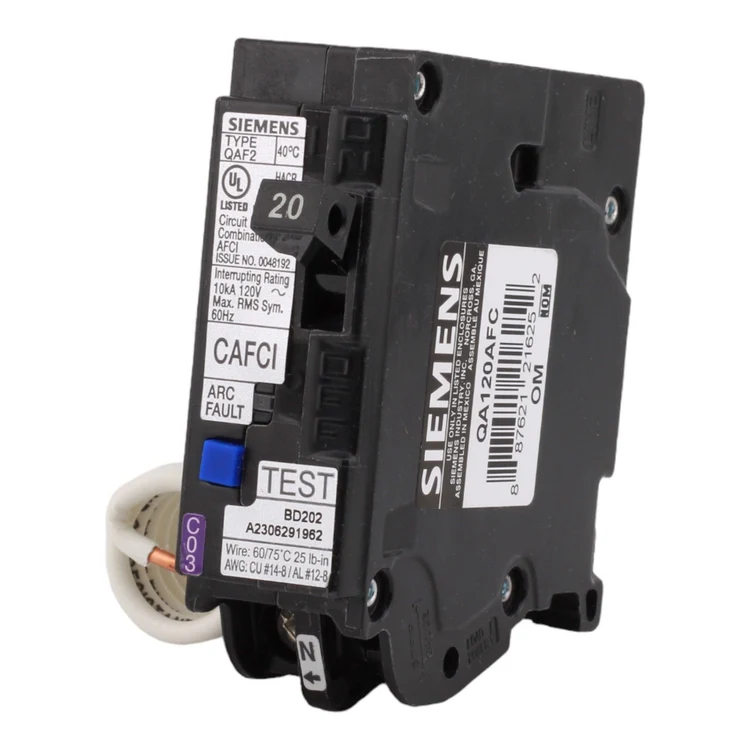

The Siemens QA120AFC is a 20 Amp, 120 Volt, single-pole combination arc-fault circuit interrupter (CAFCI) designed for compatible electrical applications. It features plug-in mounting, a pigtail connection, and thermal arc-fault protection.
Condition: Brand new.
KEY FEATURES
• 20 AMP, 120 VOLT RATING: Designed for compatible 20A, 120V single-pole applications.
• COMBINATION ARC-FAULT PROTECTION: Provides combination arc-fault circuit protection for supported applications.
• PLUG-IN WITH PIGTAIL CONNECTION: Features plug-in mounting and a pigtail connection.
• COPPER & ALUMINUM WIRE COMPATIBILITY: Accepts 14–8 AWG copper or aluminum wire.
• 10 KAIC AND UL LISTED: Has a 10 kAIC interrupt rating and UL Listed certification.
SPECIFICATIONS
• Brand: Siemens
• Model Number: QA120AFC
• Type: Combination Arc-Fault Circuit
• Number of Poles: 1 / Single Pole
• Amperage Rating: 20 Amp
• Voltage Rating: 120 Volt
• Interrupt Rating: 10 kAIC
• Connection Type: Pigtail
• Mounting Type: Plug-In
• Wire Size: 14–8 AWG
• Wire Material: Copper / Aluminum
• Operating Temperature: -10°C to +60°C
• Certification: UL Listed
• Weight: 0.243 lb
