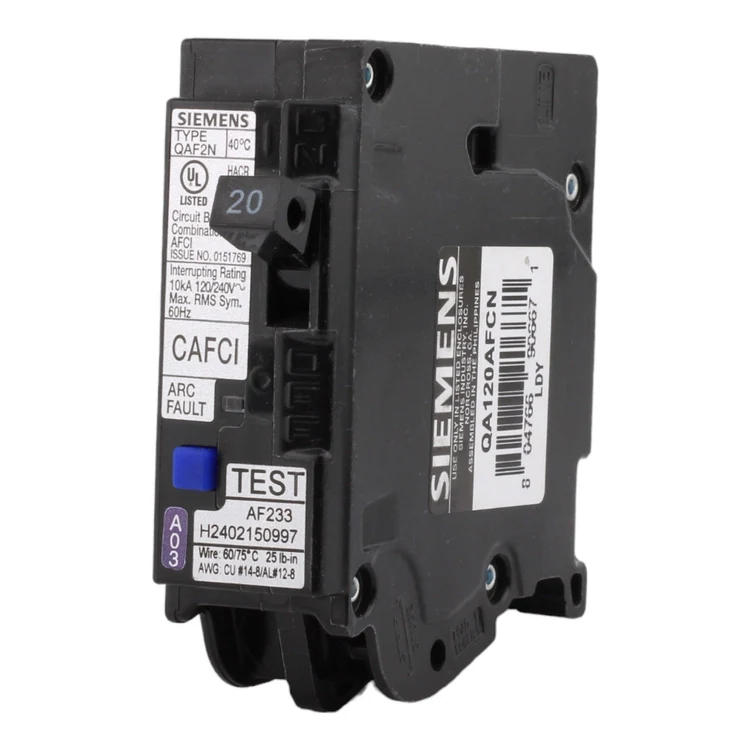

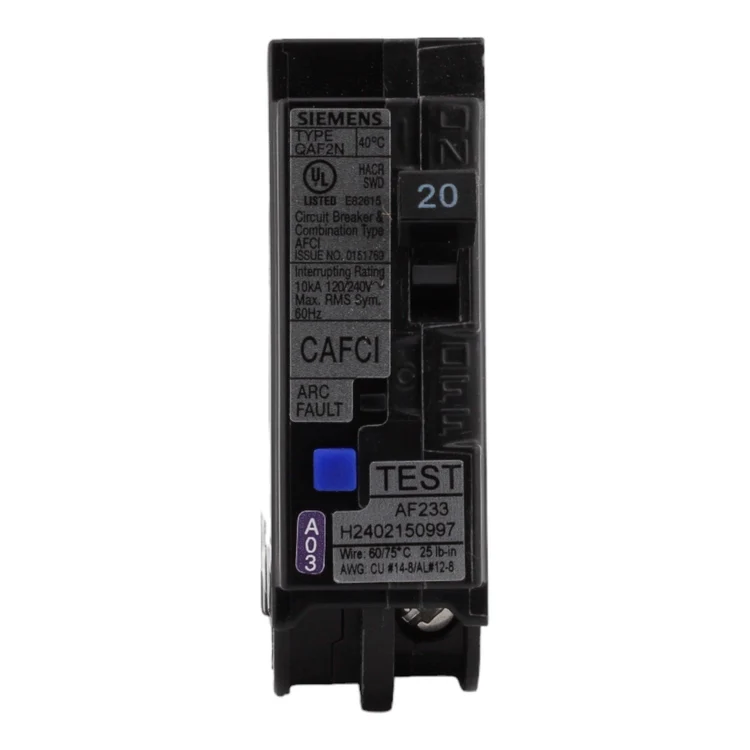

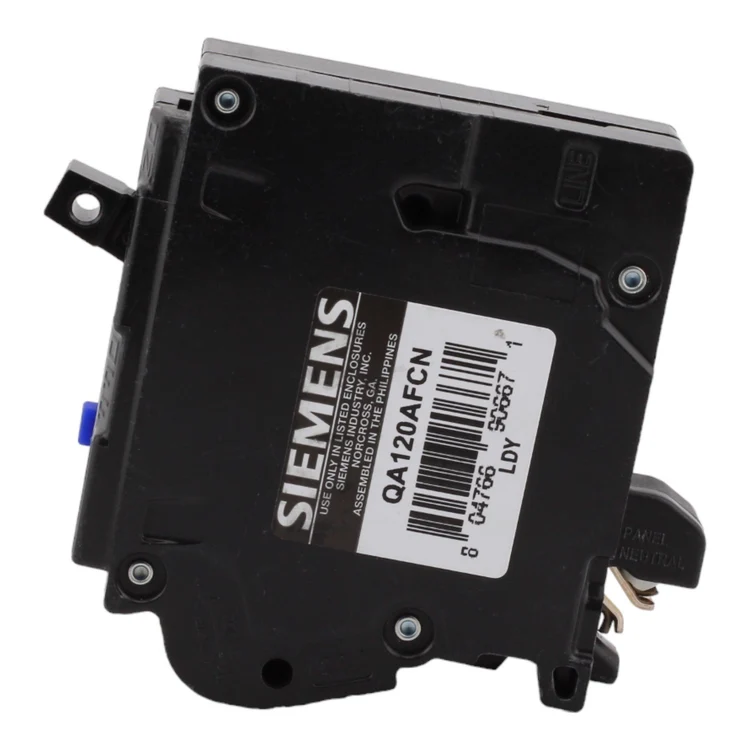

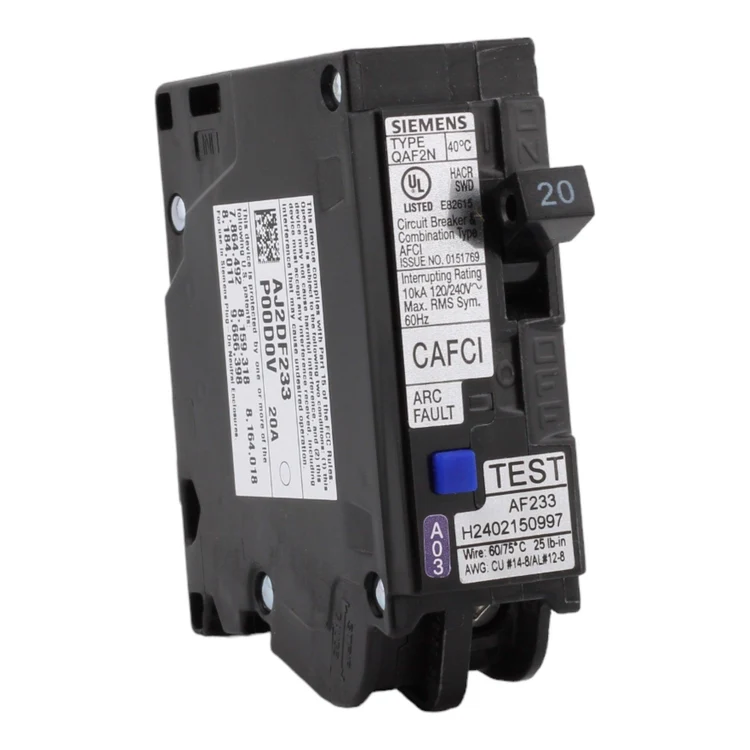

The Siemens QA120AFCN is a 20 Amp, 120 Volt AC, single-pole combination arc-fault circuit interrupter (AFCI) designed for compatible Siemens plug-on neutral load centers. It features plug-in mounting, a plug-on neutral terminal connection, and a 10 kA interrupt rating.
Condition: Brand new.
KEY FEATURES
• 20 AMP, 120 VOLT RATING: Designed for compatible Siemens plug-on neutral load centers.
• COMBINATION ARC-FAULT PROTECTION: Provides the specified AFCI protection for compatible residential applications.
• PLUG-ON NEUTRAL CONNECTION: Features plug-in mounting and a plug-on neutral terminal connection.
• WIRE SIZE & TORQUE: Accepts AWG 14–8 copper or aluminum wire, with 25 lbf-in (2.8 N·m) terminal torque.
• 10 KA INTERRUPT RATING: Has a 10 kA interrupt rating and UL Listed certification.
SPECIFICATIONS
• Brand: Siemens
• Model Number: QA120AFCN
• Product Type: Miniature Circuit Breaker
• Amperage Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Number of Poles: 1-Pole
• Interrupt Rating: 10 kA
• Mounting Type: Plug-In
• Connection Terminals: Plug-On Neutral
• Wire Size: AWG 14 to AWG 8
• Wire Material: Copper or Aluminum
• Application: Residential Applications
• Certification: UL Listed
