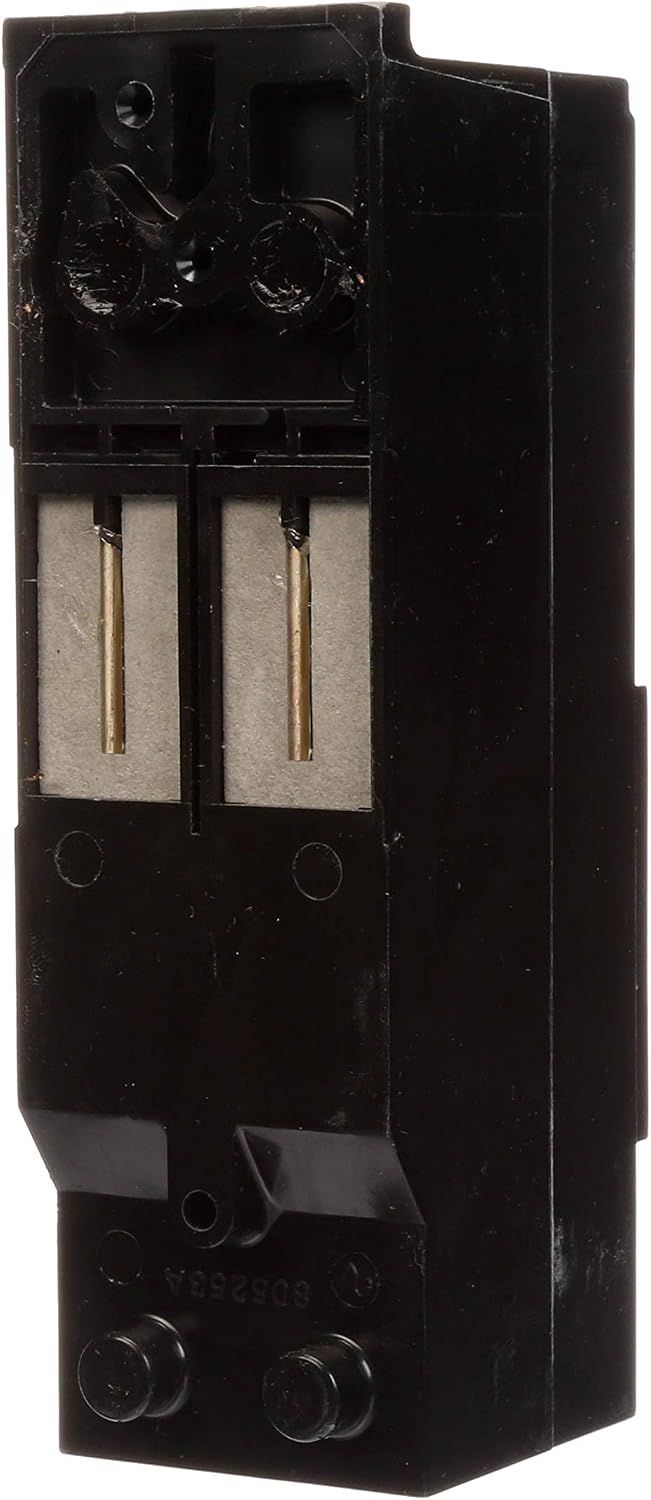

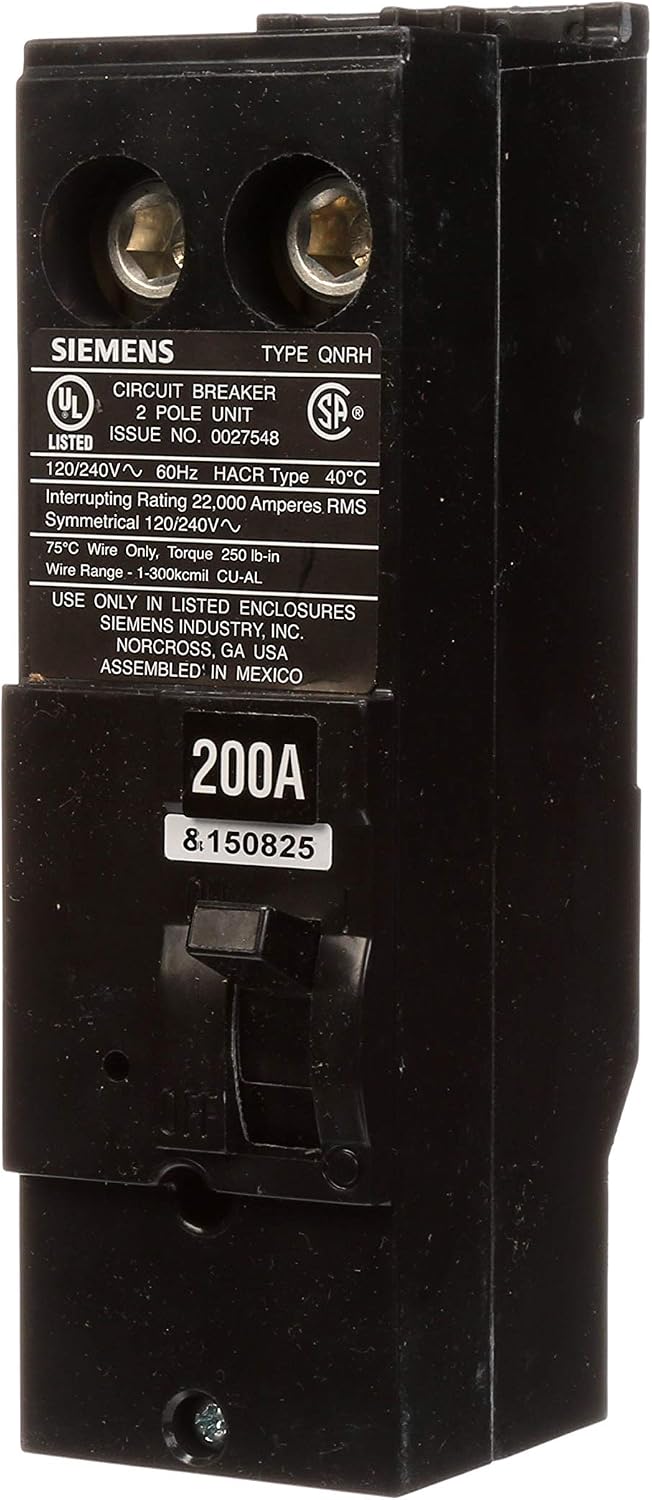

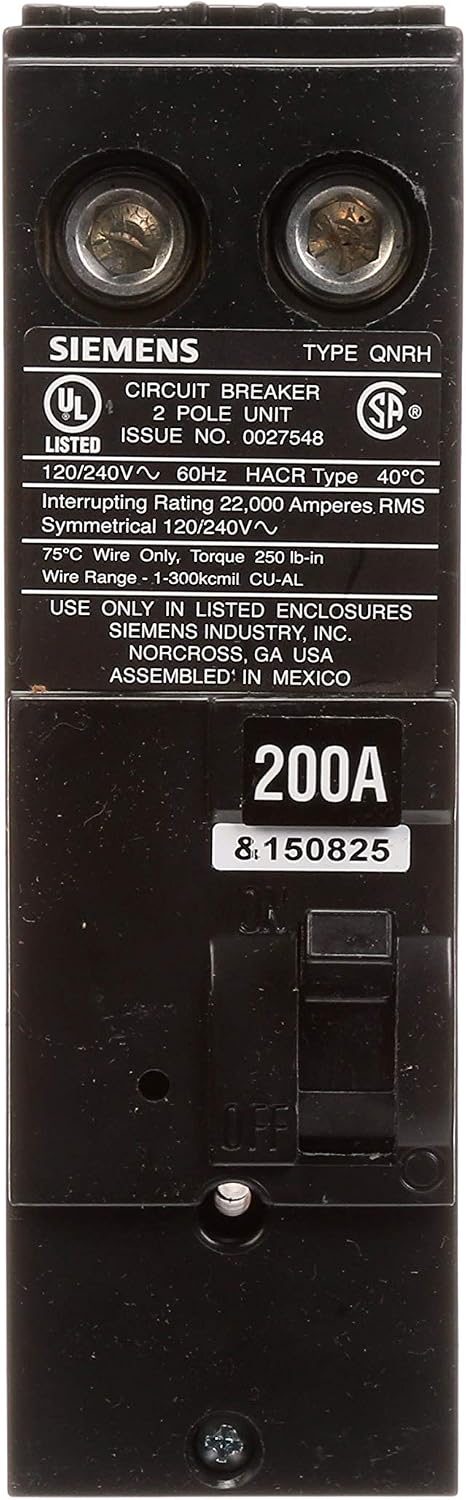

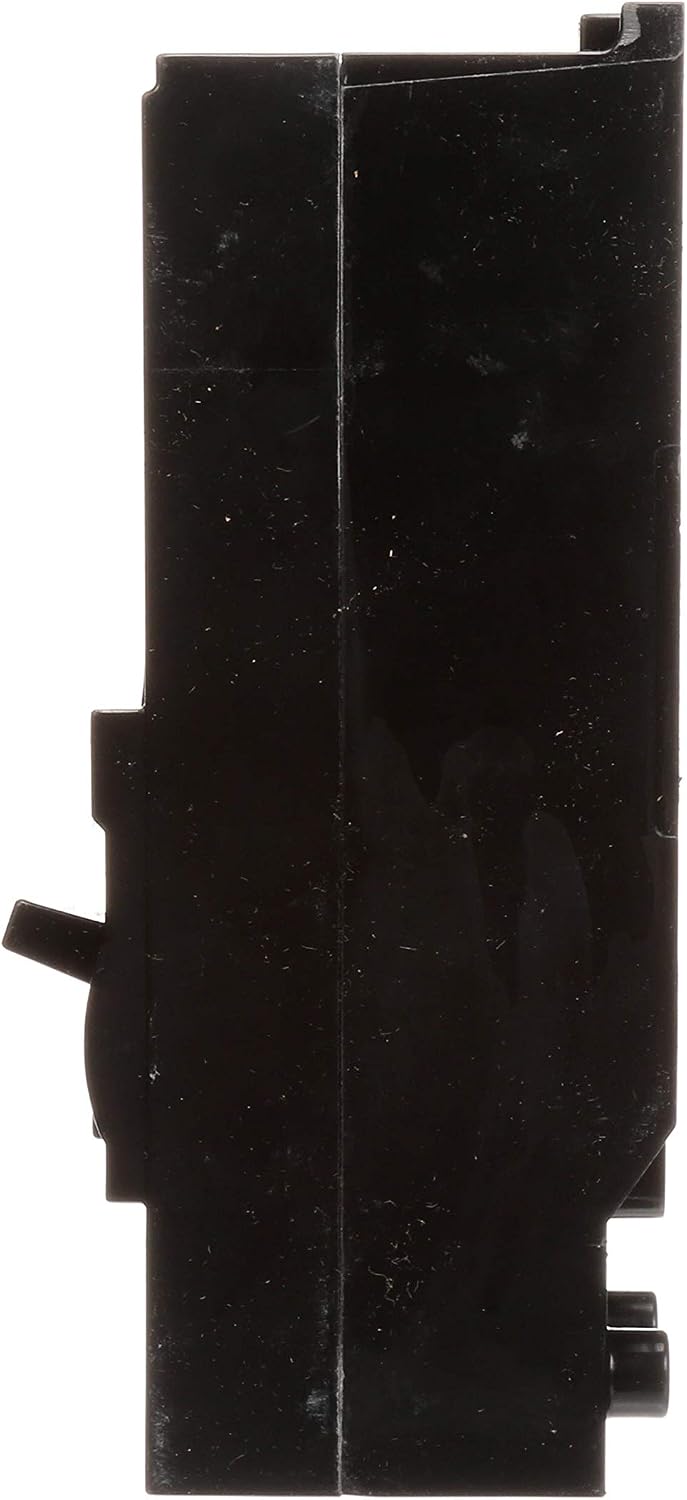

The Siemens QN2200RH QNH Series circuit breaker is rated at 200A and 120/240V AC for compatible Siemens load centers. It features a 2-pole design, thermal-magnetic trip mechanism, plug-on mounting, and a listed 22kA interrupting rating.
Condition: Brand new.
KEY FEATURES
• 200A TWO-POLE BREAKER: Rated for 200A with a 2-pole design for compatible Siemens load centers.
• 120/240V AC RATING: Designed for single-phase electrical systems rated at 120/240V AC.
• THERMAL-MAGNETIC TRIP: Uses a thermal-magnetic mechanism with a standard trip type.
• PLUG-ON INSTALLATION: Designed for plug-on mounting in compatible Siemens load centers.
• 22KA INTERRUPT RATING: Listed at 22kA at 120/240V AC; load-lug terminals support 1 AWG to 300 kcmil copper or aluminum conductors, as specified.
SPECIFICATIONS
• Brand: Siemens
• Model Number: QN2200RH
• Product Series: QNH
• Product Type: Plug-On Circuit Breaker
• Current Rating: 200A
• Voltage Rating: 120/240V AC
• Phase: Single-Phase
• Number of Poles: 2
• Mounting Type: Plug-On / Plug-In
• Trip Type: Standard Trip
• Interrupting Rating: 22kA at 120/240V AC
• Connection Type: Non-Neutral, as Listed
• Terminal Type: Load-Lug Terminals
• Conductor Compatibility: Copper or Aluminum, 1 AWG to 300 kcmil, as Listed
• Application: Electrical Distribution / Compatible Load Centers
• Standard: UL 489, as Listed
• Number of Items: 1
