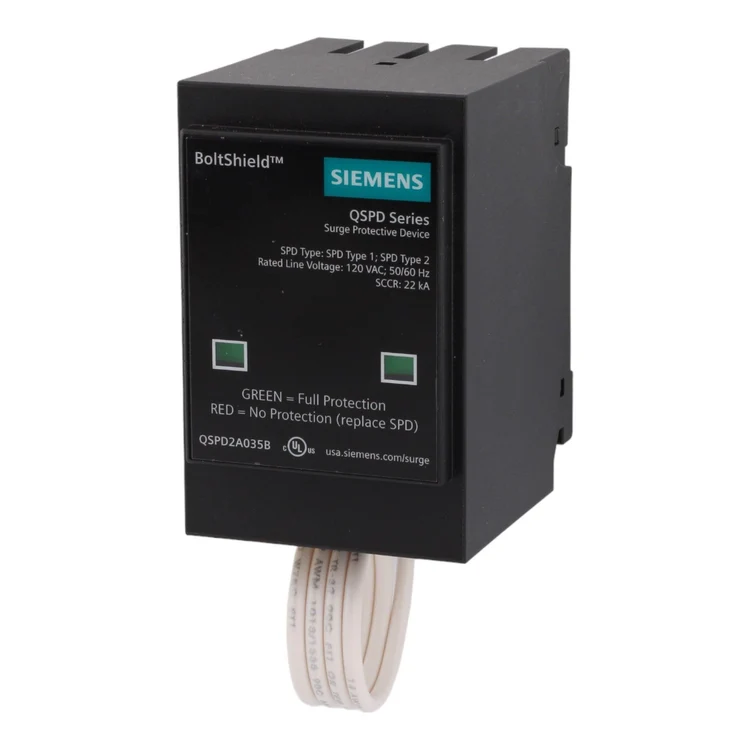

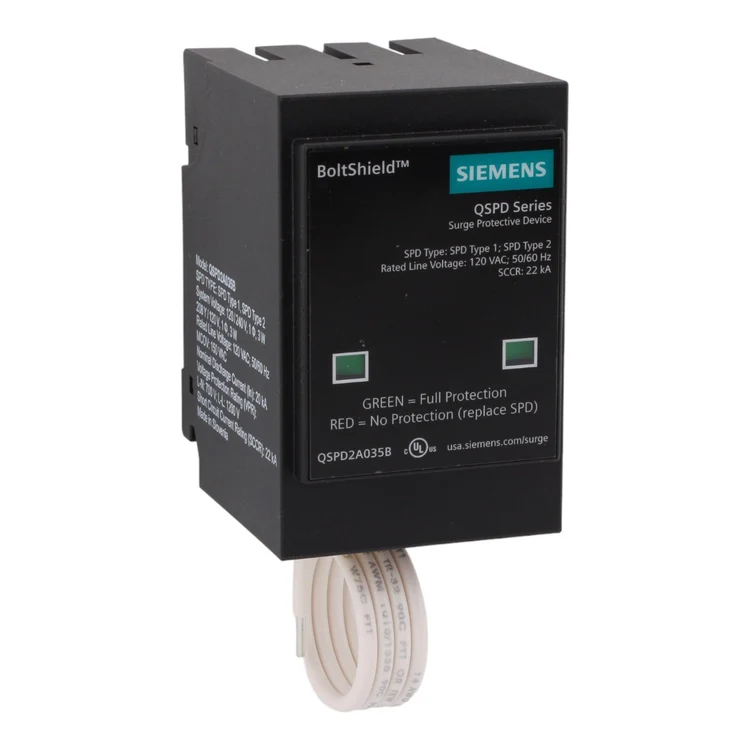

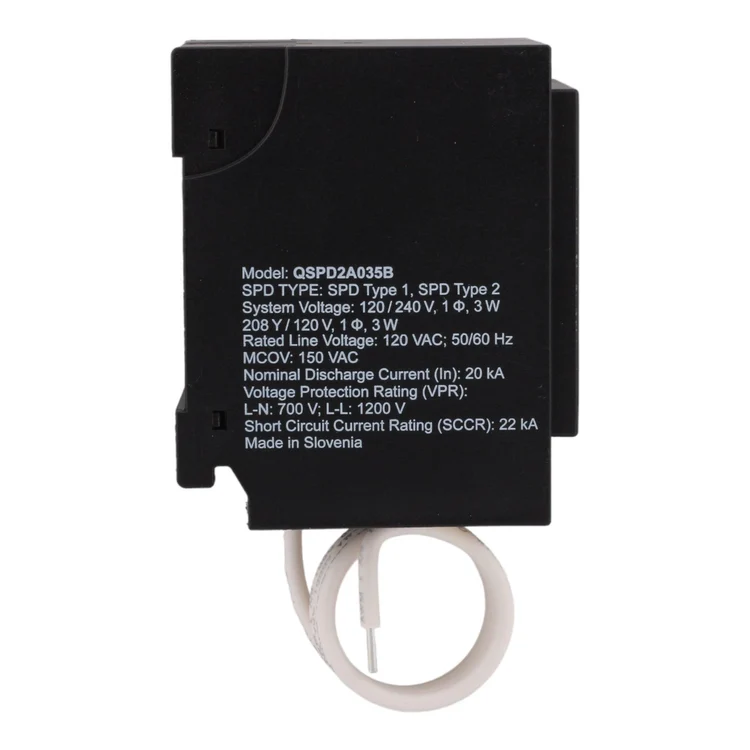

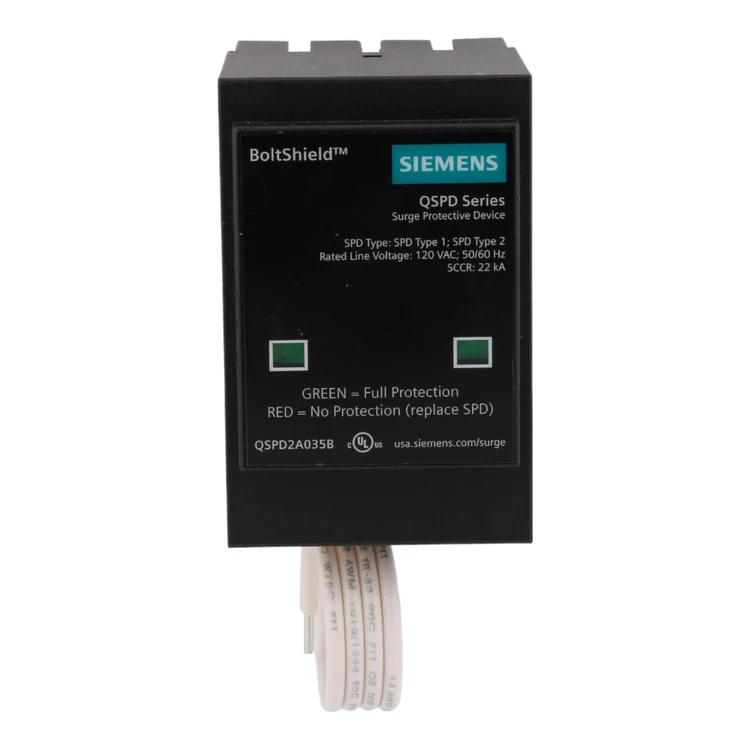

The Siemens QSPD2A035B surge protective device is designed for 120/240V, single-phase, 3-wire electrical systems. It provides a specified surge current capacity of 35kA per phase and a nominal discharge current of 20kA, with a 22kA short-circuit current rating. The supplied product information lists UL 1449 Type 1 certification and CSA approval.
Condition: Brand new.
KEY FEATURES
• 35KA SURGE CAPACITY: Provides 35kA surge current capacity per phase.
• 120/240V SYSTEM: Designed for single-phase, 3-wire electrical systems with a 2-pole configuration.
• WHOLE-HOME PROTECTION: Helps protect connected electronics, appliances, and HVAC equipment from electrical surges.
• ELECTRICAL RATINGS: Features 20kA nominal discharge current and 22kA short-circuit current rating.
• CERTIFIED DEVICE: Listed with UL 1449 Type 1 certification and CSA approval in the supplied product information.
SPECIFICATIONS
• Brand: Siemens
• Model Number: QSPD2A035B
• Product Type: Surge Protective Device (SPD)
• Voltage Rating: 120/240V
• System Configuration: Single-Phase, 3-Wire
• Number of Poles: 2-Pole
• Surge Current Capacity: 35kA per Phase
• Nominal Discharge Current: 20kA
• Short-Circuit Current Rating (SCCR): 22kA
• Connection Type: Hardwired
• Mounting Type: Hardwired Installation
• Certifications: UL 1449 Type 1, CSA Approved
• Weight: 0.573 lbs
