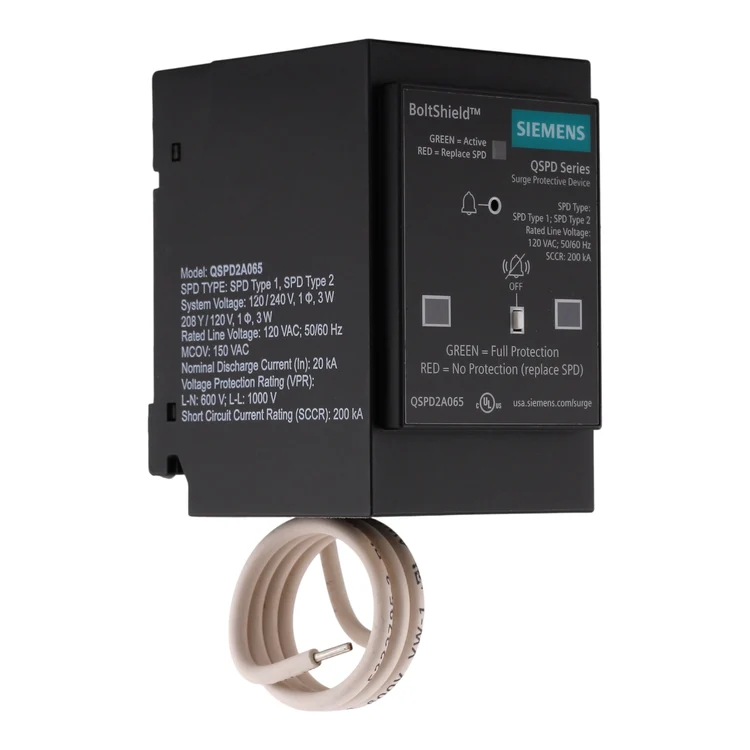

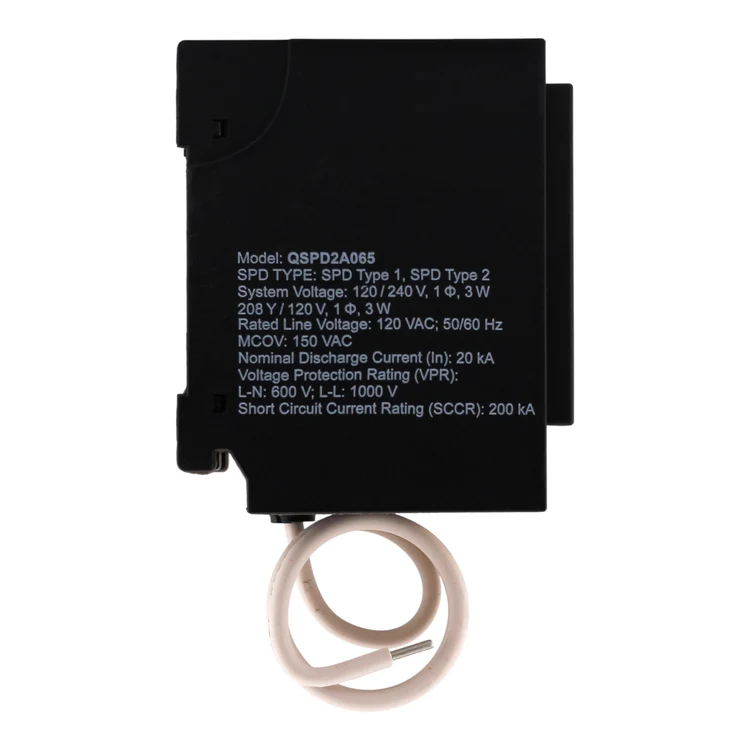

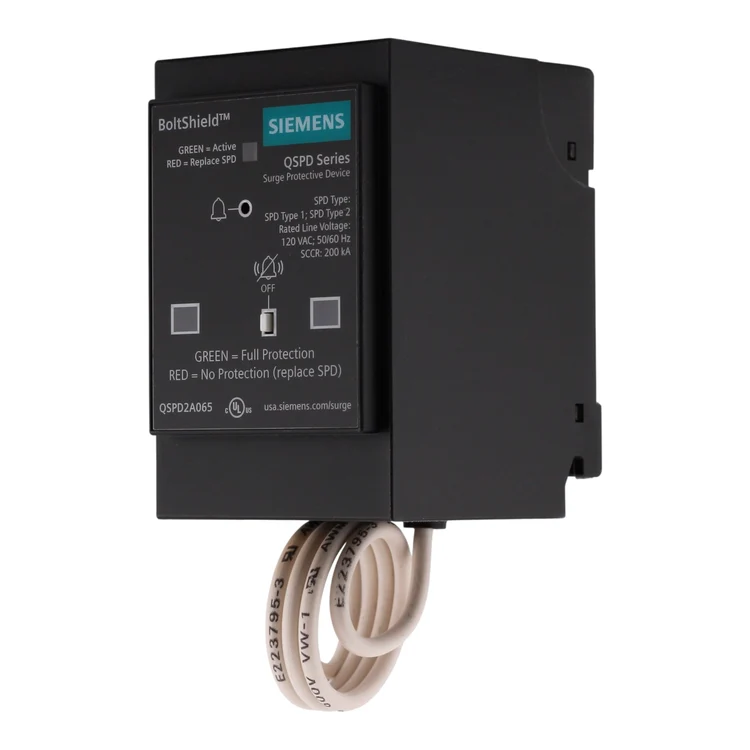

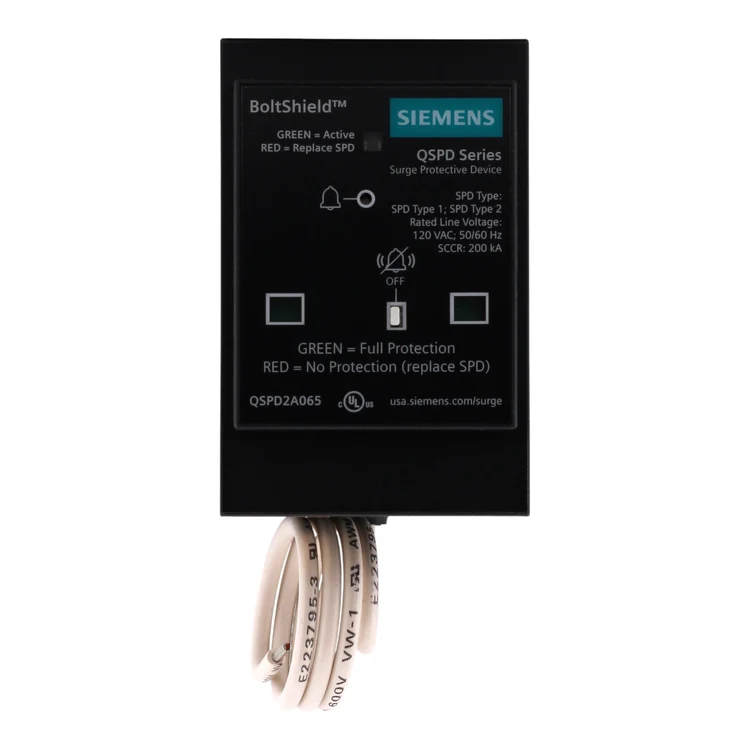

The Siemens QSPD2A065P surge protective device is designed for compatible Siemens 120/240V AC single-phase systems. It provides 65kA surge capacity per phase and features plug-in mounting, pre-wired neutral and ground connections.
Condition: Brand new.
KEY FEATURES
• 65KA SURGE PROTECTION: Provides 65kA surge capacity per phase for connected household electronics and equipment.
• 120/240V SYSTEM RATING: Designed for 120/240V AC single-phase systems with a 2-pole configuration.
• HIGH SURGE RATINGS: Features 20kA nominal discharge current, 200kA SCCR, and 150V MCOV.
• LED AND AUDIBLE ALERTS: Built-in LED indicator and audible alarm signal device status and the need for attention.
• PLUG-IN INSTALLATION: Includes pre-wired #14 AWG neutral and ground connections for compatible Siemens panels.
SPECIFICATIONS
• Brand: Siemens
• Model Number: QSPD2A065P
• Product Type: Surge Protective Device (SPD)
• Surge Current Capacity: 65kA per Phase
• Number of Poles: 2-Pole
• Voltage Rating: 120/240V AC
• Nominal Discharge Current (I-nominal): 20kA
• Short-Circuit Current Rating (SCCR): 200kA
• Maximum Continuous Operating Voltage (MCOV): 150V
• Mounting Type: Plug-In
• Neutral/Ground Connections: Pre-Wired #14 AWG
• Height: 3.07 in
• Width: 1.98 in
• Depth: 2.57 in
• Weight: 0.64 lbs
• System Type: 120/240V Single-Phase
