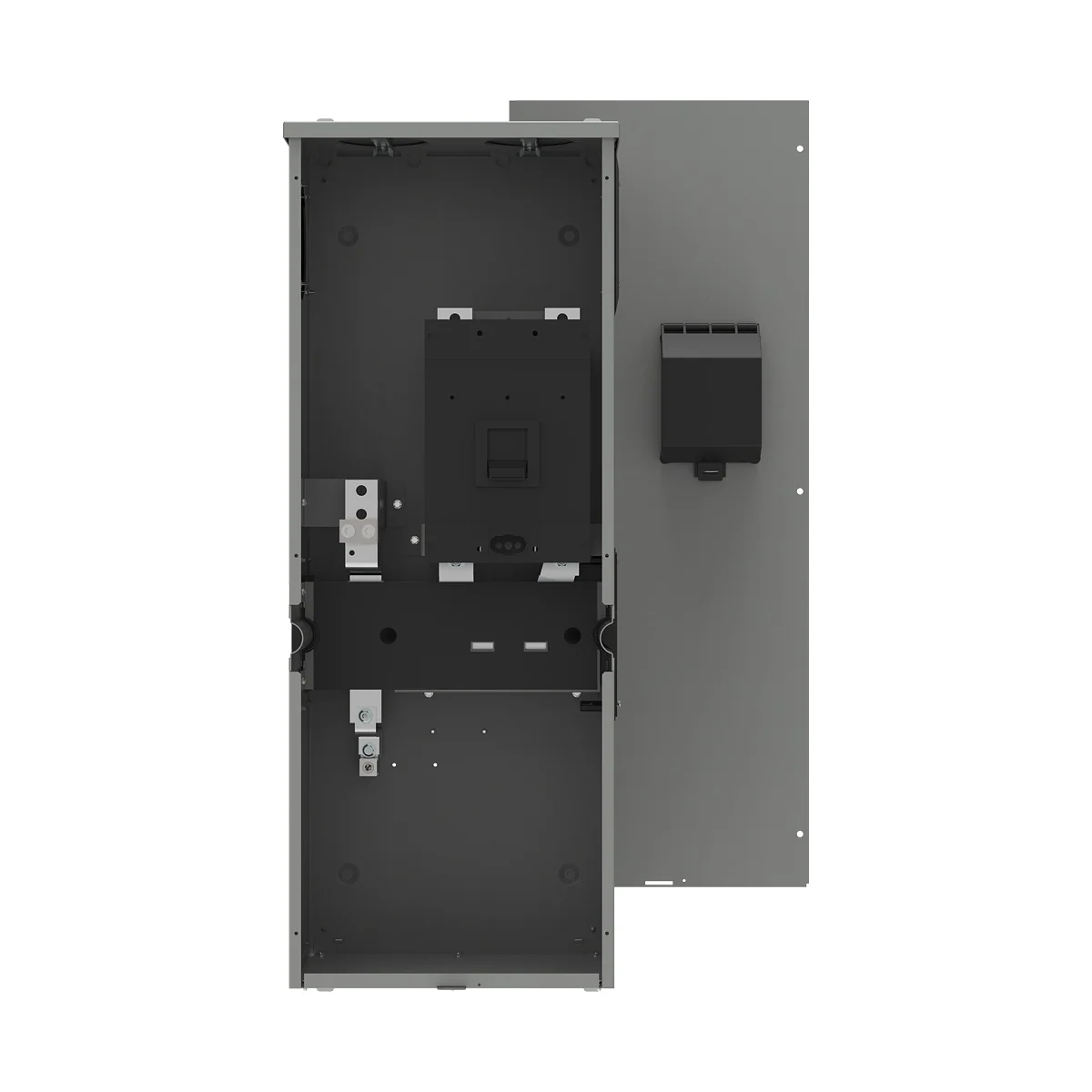

The Siemens WB1400C Power Mod main disconnect breaker module is designed for compatible service entrance applications. It is rated 400A for 120/240V AC, single-phase, 3-wire systems and features a 65 kAIC interrupting rating, overhead or underground feed support, and an outdoor NEMA Type 3R enclosure.
Condition: Brand new.
KEY FEATURES
• 400A MAIN DISCONNECT: Rated 400A for compatible service entrance applications.
• 120/240V AC CONFIGURATION: Designed for single-phase, 3-wire electrical systems.
• 65 kAIC INTERRUPTING RATING: Features a 2-pole JXD6 breaker frame and 65 kAIC rating.
• FLEXIBLE FEED CONFIGURATION: Supports overhead and underground feed arrangements.
• OUTDOOR NEMA 3R ENCLOSURE: G90 galvanized steel with ANSI 61 paint, a padlock-capable exterior handle, and removable bottom endwall.
SPECIFICATIONS
• Brand: Siemens
• Model / MPN: WB1400C
• Product Line: Power Mod
• Product Type: Main Disconnect Breaker Module
• Application: Service Entrance
• Current Rating: 400A
• Voltage Rating: 120/240V AC
• Phase: Single-Phase
• Wiring: 3-Wire
• Number of Poles: 2-Pole
• Breaker Frame: JXD6
• Interrupting Rating: 65 kAIC
• Enclosure Rating: NEMA Type 3R
• Enclosure Material: G90 Galvanized Steel
• Finish: ANSI 61 Paint
• Feed Configuration: Overhead and Underground
• Lug Landing Pads: Compression Type; field installation up to 1200A as specified
• Breaker Handle: Externally Accessible, Padlock-Capable
• Bottom Endwall: Removable Blank Endwall
• Operation: On/Off
• Dimensions (H × W × D): 39.19 × 15.20 × 11.03 in
• Weight: 91.7 lbs
• Suitable For: Exterior
