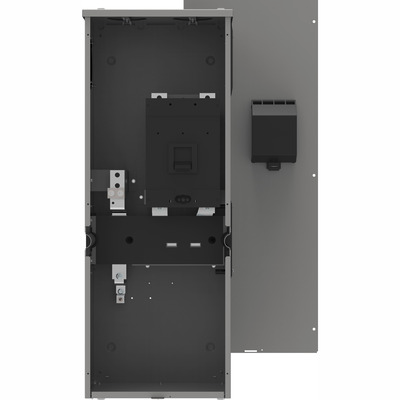

The Siemens WB1600C Power Mod service entrance module is rated for 600A and designed for compatible 120/240V AC, single-phase, 3-wire electrical systems. It uses an LXD6 breaker, has a standard 65 kAIC interrupting rating, and features a NEMA Type 3R outdoor enclosure.
Condition: Brand new.
KEY FEATURES
· 600A SERVICE ENTRANCE MODULE: Rated for 600A in compatible service entrance and power distribution applications.
· 120/240V SINGLE-PHASE SYSTEM: Designed for 120/240V AC, single-phase, 3-wire systems.
· LXD6 BREAKER RATING: Uses an LXD6 breaker with a standard 65 kAIC rating; a 100 kAIC option is listed.
· OVERHEAD OR UNDERGROUND FEED: Supports either feed configuration, with compression lug landing pads specified for field installation up to 1200A.
· OUTDOOR NEMA 3R ENCLOSURE: G90 galvanized steel with ANSI 61 paint, a padlock-capable handle, stainless-steel hardware, and removable bottom endwall.
SPECIFICATIONS
· Brand: Siemens
· Model Number: WB1600C
· Type: Circuit Breaker Service Entrance Module
· Current Rating: 600A
· Voltage / Phase / Wiring: 120/240V AC, single-phase, 3-wire
· Number of Poles / Breaker Type: 2-pole / LXD6
· Line-Side Connections: Factory-installed
· Copper Conductor Capacity: Two conductors, 3/0-500 kcmil
· Aluminum Conductor Capacity: Two conductors, 4/0-500 kcmil
· Feed Configuration: Overhead or underground
· Enclosure Rating: NEMA Type 3R
· Enclosure Material / Finish: G90 galvanized steel / ANSI 61 paint
· Breaker Handle: Externally accessible, padlock-capable
· Bottom Endwall: Removable blank endwall
· Hardware: Stainless-steel swing latches and rivets
· Shunt Trip: Field-installable option available
· Dimensions (H x W x D): 39.19 x 15.20 x 11.03 in
· Weight: 92.8 lbs
· Applicable Standard: UL 67
