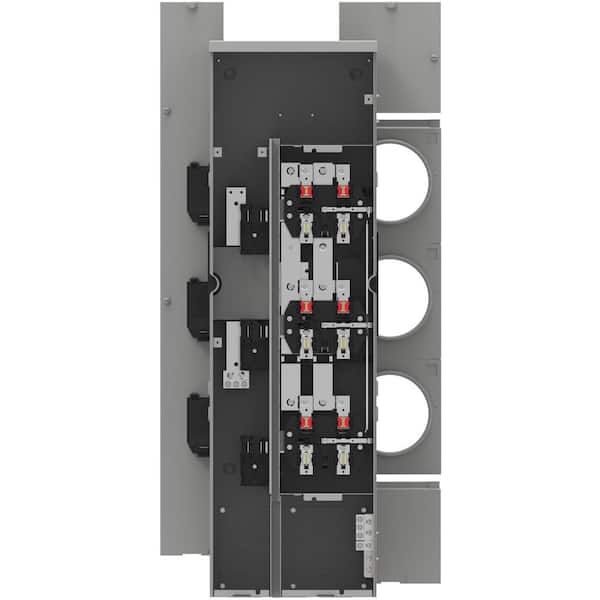

The Siemens WMM31125 is a 3-position ring-type meter stack for compatible residential metering systems. It has three 125A meter sockets, a 1200A maximum horizontal bus, a 240V single-phase rating, and movable neutral and ground connections.
Condition: Brand new.
KEY FEATURES
• THREE-POSITION METER STACK: Includes three meter sockets rated at 125A per position.
• 1200A HORIZONTAL BUS: Supports a maximum horizontal-bus rating of 1200A.
• 240V SINGLE-PHASE DESIGN: Features 4-jaw, ring-type sockets for 240V single-phase AC systems.
• DURABLE METAL ENCLOSURE: Uses a rectangular metal enclosure with movable neutral and ground connections.
• QP BREAKER COMPATIBILITY: Designed for QP-style breakers in compatible installations.
SPECIFICATIONS
• Brand: Siemens
• Model Number: WMM31125
• Product Type: Meter Stack
• Configuration: 3-Position / 3 Meter Sockets
• Amperage per Position: 125A
• Maximum Horizontal-Bus Rating: 1200A
• Voltage Rating: 240V AC
• Number of Phases: 1 (Single-Phase)
• Socket Configuration: 4-Jaw
• Socket Cover Style: Ring Type
• Breaker Compatibility: QP-Style Breakers
• Material: Metal
• Box Shape: Rectangular
