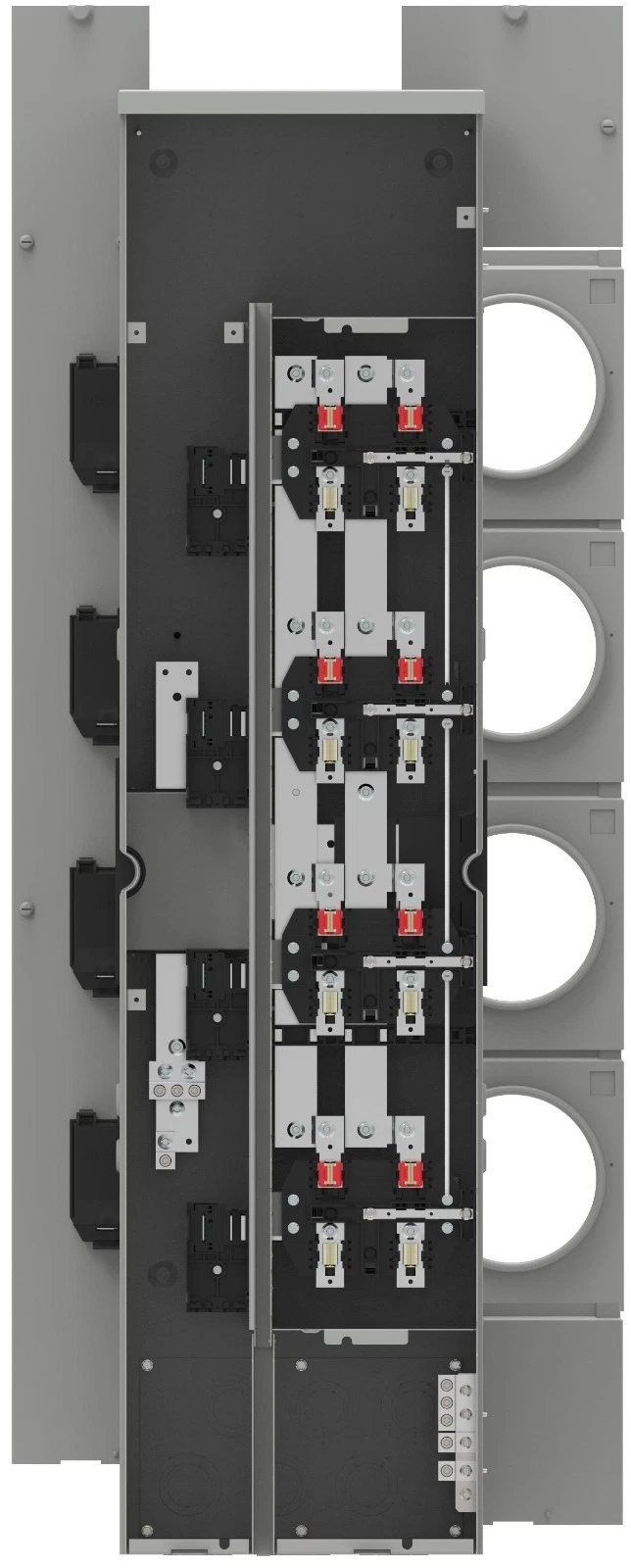

The Siemens WMM41125 Power Mod modular meter stack is designed for compatible multi-unit metering installations. It has four 125A continuous meter sockets, a 1200A maximum horizontal bus, and a Type 3R outdoor enclosure for 120/240V AC, single-phase, 3-wire systems.
Condition: Brand new.
KEY FEATURES
• FOUR-POSITION METER STACK: Provides four meter sockets in one assembly for compatible multi-meter installations.
• 1200A MAIN BUS: Features a horizontal bus rated up to 1200A.
• 125A PER SOCKET: Each meter socket is rated for 125A continuous.
• 120/240V SINGLE-PHASE: Designed for 120/240V AC, single-phase, 3-wire systems with 4-jaw sockets and ring-type covers.
• TYPE 3R OUTDOOR ENCLOSURE: Includes a bottom-feed enclosure for outdoor installations.
SPECIFICATIONS
• Brand: Siemens
• Model Number: WMM41125
• Product Line: Power Mod
• Product Type: Modular Metering System / Meter Stack
• Configuration: 4-Position / 4 Meter Sockets
• Voltage Rating: 120/240V AC
• Phase / Wiring: Single-Phase, 3-Wire
• Maximum Horizontal Bus Rating: 1200A
• Socket Rating: 125A Continuous per Position
• Branch / Tenant Rating: 125A Maximum per Position
• Socket Configuration: 4-Jaw, Ring-Type Covers
• Breaker / Cutout Configuration: 2-Pole, 6-Cutout, Plug-In
• Feed Type: Bottom Feed
• Enclosure Rating: Type 3R / Outdoor
• Maximum Interrupting Rating: 65,000A (65 kA AIC)
• Compatible Breakers: QP, QPH, HQP, MP-T, MP-HT, MP-MT
• Application: Residential / Multi-Unit Electrical Metering
