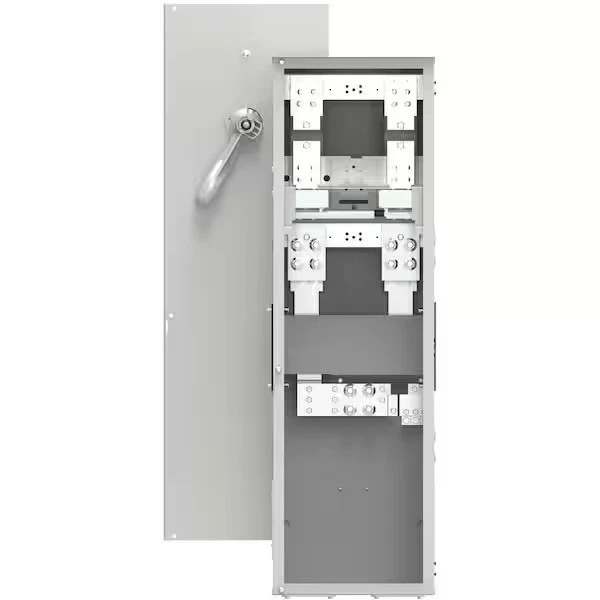

Siemens WS1400CU 400A, Power Mod Fusible Switch Module, 120/240V

The Siemens WS1400CU Power Mod fusible switch module is a 400A service entrance component for compatible electrical distribution systems. It is designed for 120/240V AC, single-phase, 3-wire applications, supports Class T fuses, and features a 1200A bus rating and an outdoor NEMA Type 3R enclosure.

Condition: Brand new.

KEY FEATURES

·         400A FUSIBLE SWITCH MODULE: Rated for 400A in compatible Power Mod service entrance applications.

·         120/240V SINGLE-PHASE SYSTEM: Designed for 1-phase, 3-wire AC systems.

·         CLASS T FUSE SUPPORT: Supports Class T fuses; verify fuse selection and ratings for the installation.

·         1200A BUS RATING: Features 1200A thru-bus and horizontal-bus ratings.

·         OUTDOOR NEMA 3R ENCLOSURE: G90 galvanized steel enclosure with ANSI 61 paint; supports overhead or underground feeds and top or bottom feed orientation.

SPECIFICATIONS

·         Brand: Siemens

·         Model Number: WS1400CU

·         Product Line: Power Mod

·         Product Type: Fusible Switch Service Entrance Module

·         Switch Type: 3-Cutout Type WS, Low-Voltage Standard

·         Amperage Rating: 400A

·         Thru-Bus Rating: 1200A

·         Horizontal-Bus Rating: 1200A

·         Voltage Rating: 120/240V AC

·         Phase: Single-Phase

·         Wiring: 3-Wire

·         Interrupting Rating: 100,000 AIC (100 kAIC)

·         Fuse Type: Class T

·         Service Feed: Overhead / Underground

·         Feed Orientation: Top or Bottom Feed

·         Enclosure Type: NEMA Type 3R

·         Enclosure Material: G90 Galvanized Steel

·         Finish: ANSI 61 Paint

·         Handle: Front-Mounted

·         Hardware: Stainless-Steel Swing Latches and Rivets

·         Dimensions (H × W × D): 50.13 × 15.19 × 16.31 in

·         Weight: 130.6 lbs

·         Meter Socket Type: Ring
