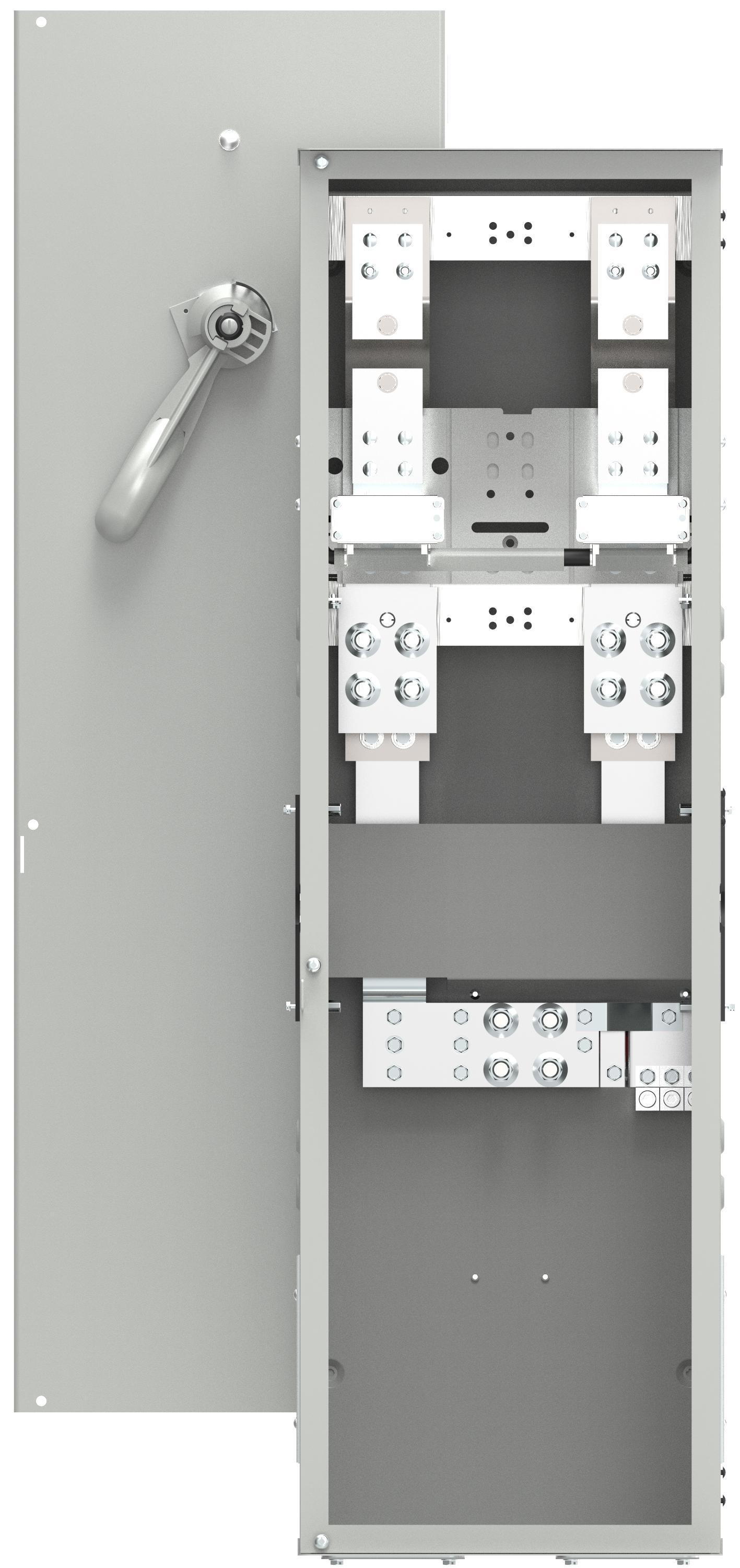

The Siemens WS1600CU Power Mod fusible switch module is designed for compatible service entrance and electrical distribution systems. Rated at 600A for 120/240V AC, single-phase, 3-wire applications, it supports Class T fuses and features a NEMA Type 3R galvanized-steel enclosure with top- or bottom-feed options.
Condition: Brand new.
KEY FEATURES
• 600A FUSIBLE SWITCH: Rated for 600A service entrance and electrical distribution applications.
• 120/240V SINGLE-PHASE SYSTEM: Designed for 120/240V AC, single-phase, 3-wire systems.
• CLASS T FUSE COMPATIBILITY: 3-cutout, 2-pole Type WS fusible switch configuration for Class T fuses.
• 100K INTERRUPTING RATING: The supplied product data lists a 100k interrupting rating; verify system compatibility.
• OUTDOOR NEMA 3R ENCLOSURE: G90 galvanized-steel housing supports top or bottom feed for overhead or underground service.
SPECIFICATIONS
• Brand: Siemens
• Model Number: WS1600CU
• Product Line: Power Mod
• Product Type: Service Entrance Module
• Switch Type: 3-Cutout, 2-Pole Type WS Fusible Switch GFCL, Low Voltage Standard
• Current Rating: 600A
• Voltage Rating: 120/240V AC
• Phase: Single-Phase
• Wiring: 3-Wire
• Fuse Type: Class T
• Connection Type: Compression Line-Side Lug / Plug-In
• Service Feed: Overhead / Underground
• Feed Options: Top / Bottom
• Enclosure Type: NEMA Type 3R
• Enclosure Material: G90 Galvanized Steel
• Mounting Type: Rail Mount
• Dimensions (H × W × D): 38 × 20 × 17 in
